2015 Suzuki VL1500L5 Frame Cover Diagram

← All diagrams

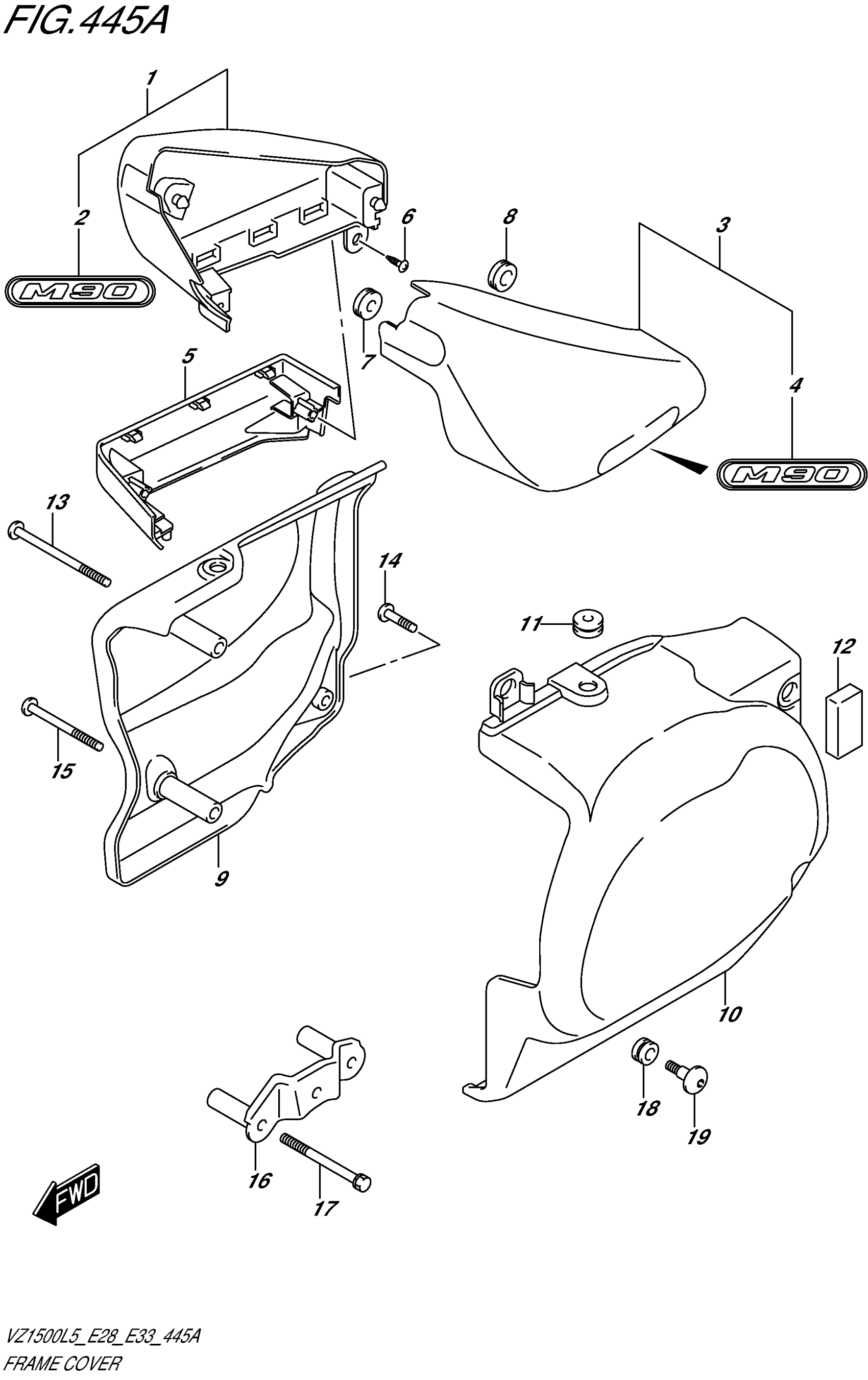

Find the part on the Frame Cover diagram for your 2015 Suzuki VL1500L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VL1500L5 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE RH (BLACK)

47110-40H01-YVB

1
Out of stock

1

COVER, SIDE RH (WHITE)

47110-40H01-YWW

1
Out of stock

2

EMBLEM

68131-40H01

1
Out of stock

3

COVER, SIDE LH (BLACK)

47210-40H01-YVB

1
Out of stock

3

COVER, SIDE LH (WHITE)

47210-40H01-YWW

1
Out of stock

4

EMBLEM

68131-40H01

1
Out of stock

5

COVER, SIDE LOWER RH

47121-40H00

1
Out of stock

6

SCREW

03541-0516A

2
Out of stock

7

CUSHION

09320-08049

2
Out of stock

8

CUSHION

09320-08018

2
Out of stock

9

COVER, LOWER RH

47130-40H00

1
Out of stock

10

COVER, LOWER LH

47231-40H00

1
Out of stock

11

CUSHION

09320-06504

2
Out of stock

12

CUSHION, LH

51827-01A00

1
Out of stock

13

SCREW, RH FRONT UPPER

47139-40H00

1
Out of stock

14

SCREW (6X16)

09139-06140

1
Out of stock

15

SCREW, RH FRONT LOWER

47138-40H00

1
Out of stock

16

BRACKET, LOWER LH

47250-06J00

1
Out of stock

17

BOLT

01547-0650A

2
Out of stock

18

CUSHION

09320-09016

3
Out of stock

19

SCREW (6X20)

09139-06126

3
Out of stock
