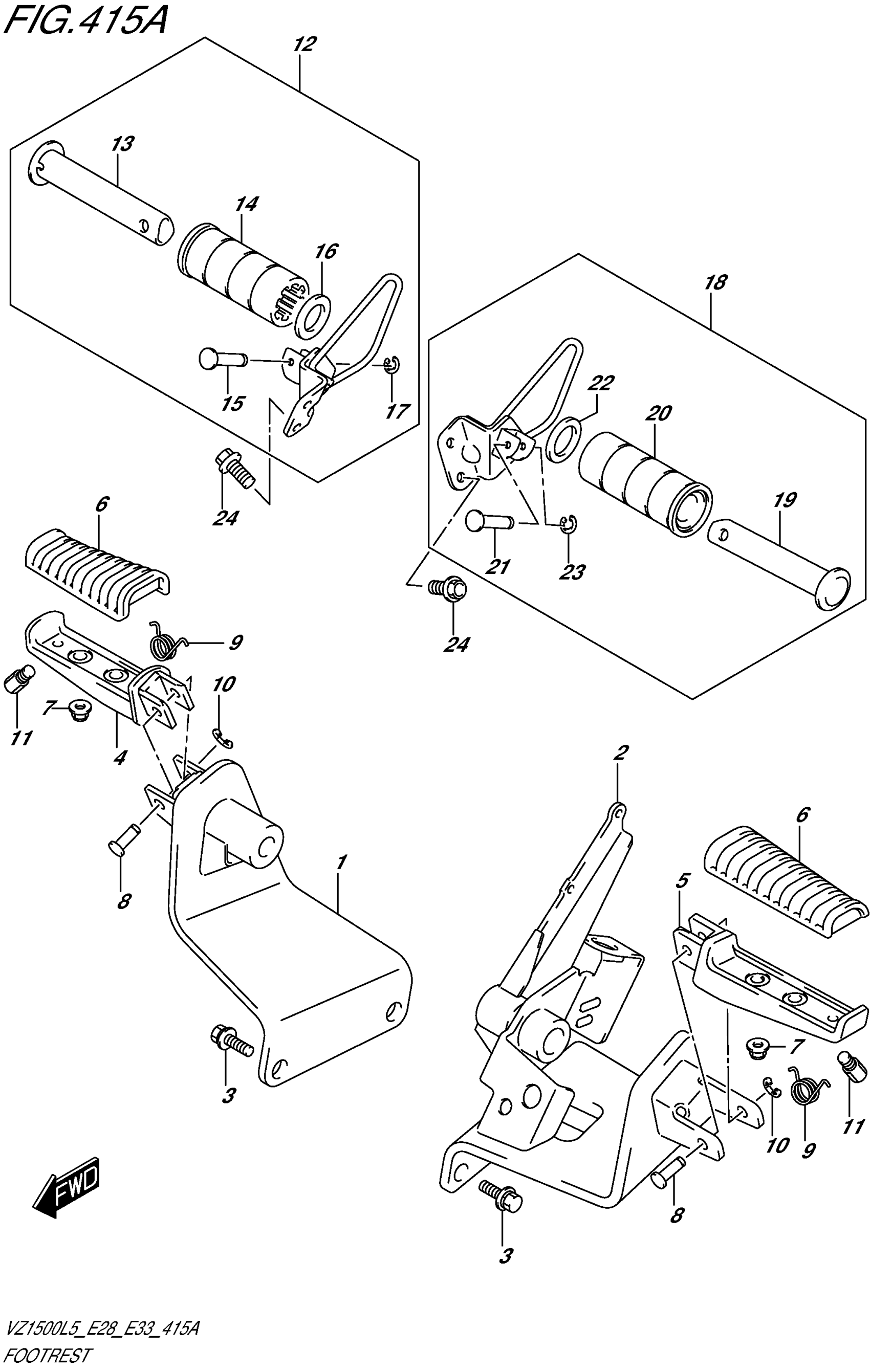

Find the part on the Footrest diagram for your 2015 Suzuki VL1500L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki VL1500L5 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST RH

43510-40H00

1
Out of stock

2

BRACKET, FRONT FOOTREST LH

43520-40H00

1
Out of stock

3

BOLT (10X25)

09103-10378

4
Out of stock

4

BAR, FRONT FOOTREST RH This part replaces 43531-48G00.

43531-48G01

1
Out of stock

5

BAR, FRONT FOOTREST LH This part replaces 43541-48G00.

43541-48G01

1
Out of stock

6

RUBBER

43550-48G00

2

$29.96

In stock

7

NUT

08319-2106A

4
Out of stock

8

PIN (8X33.2)

09208-08010

2
Out of stock

9

SPRING

09448-14047

2
Out of stock

10

E RING

08332-1106A

2
Out of stock

11

.BOLT,BANK SENSOR

43576-07D01

2
Out of stock

12

FOOTREST, PILLION RH

43600-40H50

1
Out of stock

13

BAR

43610-39G00

1
Out of stock

14

RUBBER

43612-39G00

1
Out of stock

15

PIN

09208-06007

1
Out of stock

16

WASHER (19.5X32X2)

09160-19024

1
Out of stock

17

E RING

08332-1104A

1
Out of stock

18

FOOTREST, PILLION LH

43700-40H50

1
Out of stock

19

BAR

43610-39G00

1
Out of stock

20

RUBBER

43612-39G00

1
Out of stock

21

PIN

09208-06007

1
Out of stock

22

WASHER (19.5X32X2)

09160-19024

1
Out of stock

23

E RING

08332-1104A

1
Out of stock

24

BOLT (8X16)

09103-08412

4
Out of stock
