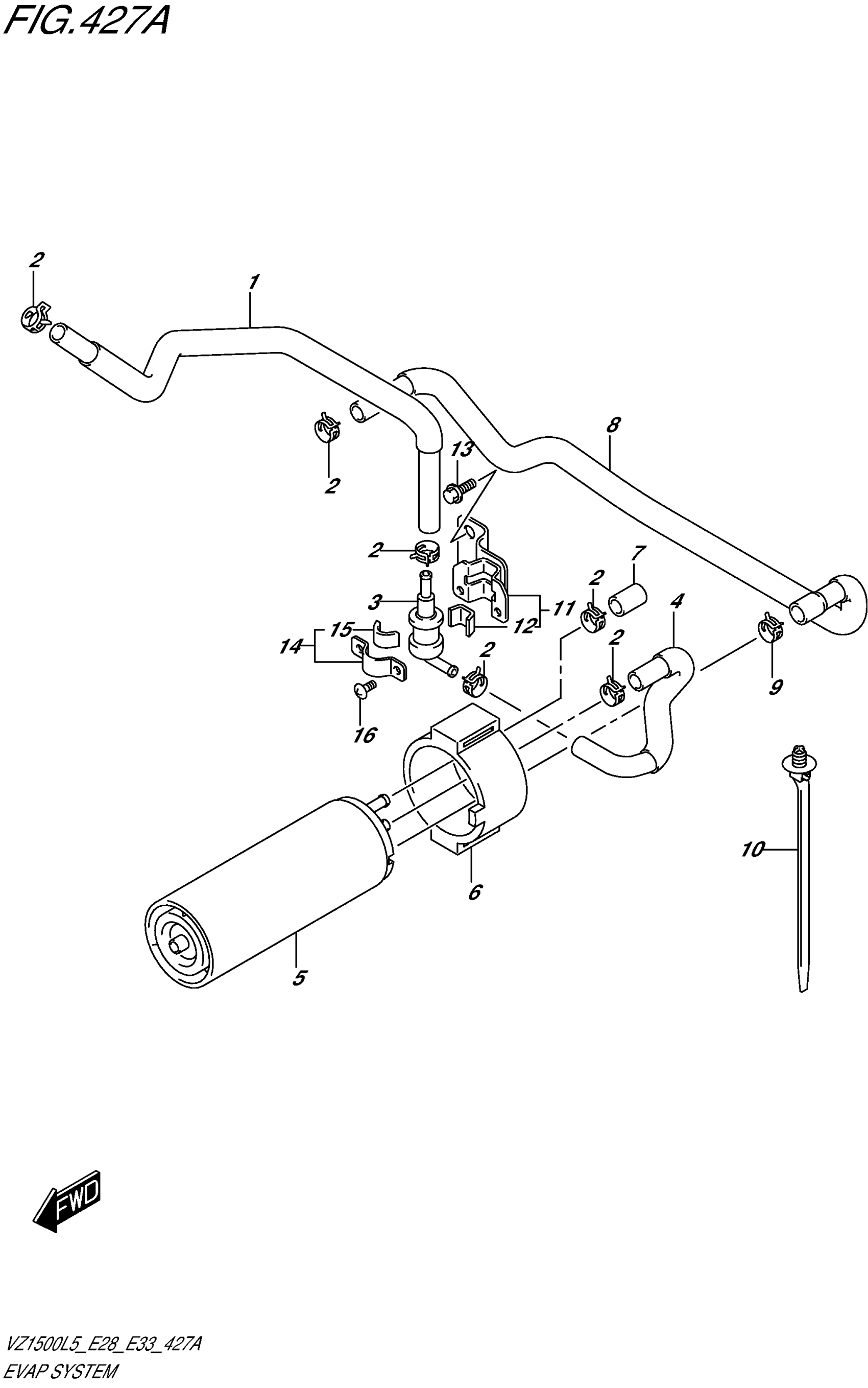

Suzuki VL1500L5 (2015) EVAP SYSTEM (VZ1500L5 E33) Diagram

Description

Price

HOSE, TANK & VALVE

44434-40H00

Unavailable

CLIP

09401-11413

$2.26

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

HOSE, VALVE & CANISTER

44435-40H00

Unavailable

CANISTER ASSY

17210-15H00

$305.77

CUSHION

44883-48G00

Unavailable

CAP

09251-07005

Unavailable

HOSE, CANISTER PURGE

44436-40H00

Unavailable

CLIP

09401-12404

$2.34

CLAMP (L:154)

09407-17403

$4.91

BRACKET

44880-40H00

Unavailable

CUSHION (10X30X2)

44894-24A00

$1.72

BOLT

01547-0610A

$2.45

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

CUSHION (10X30X2)

44894-24A00

$1.72

SCREW

02142-0408A

$1.55
