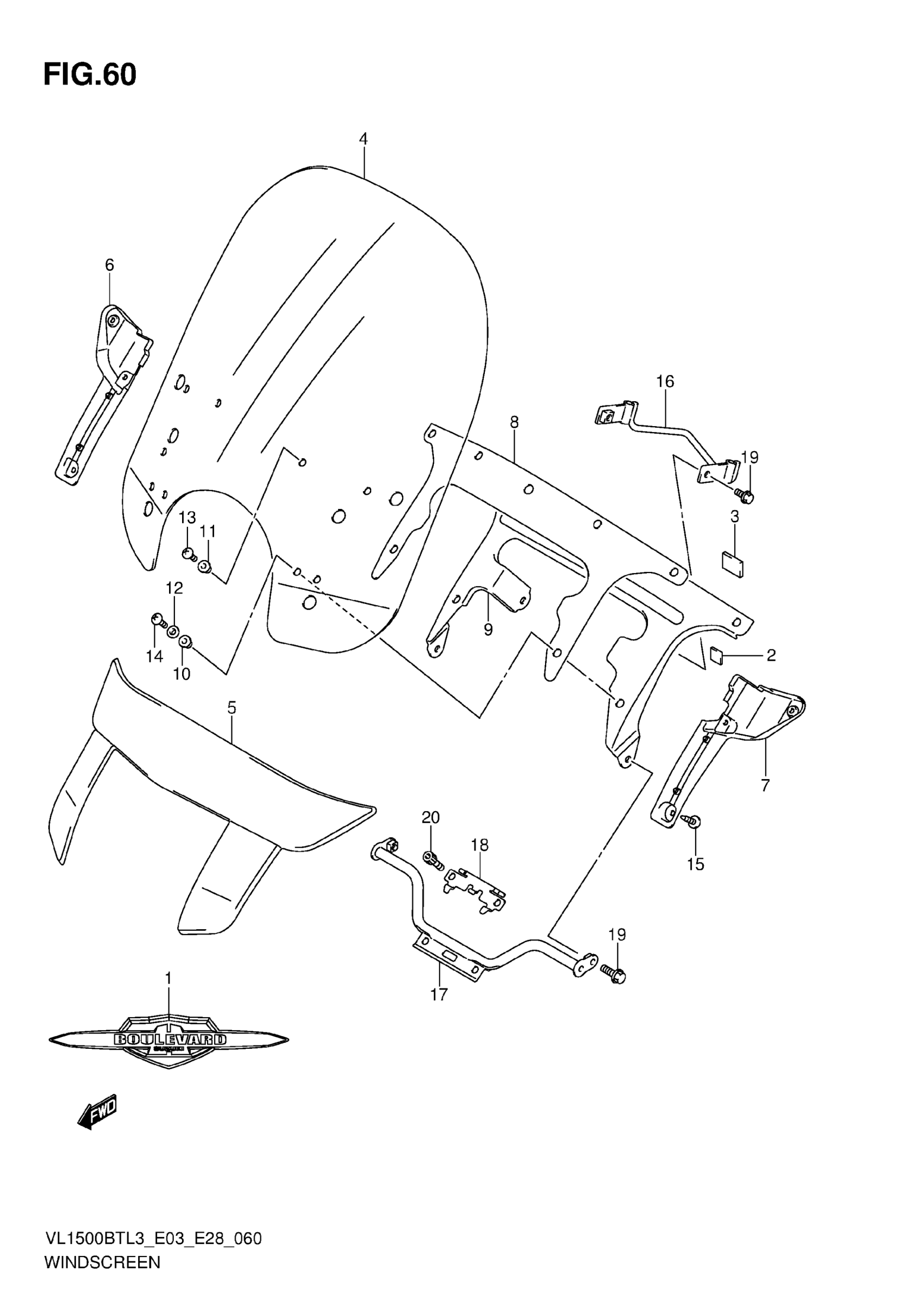

Suzuki VL1500BTL3 (2013) WINDSCREEN Diagram

#

Description
Price

1

EMBLEM, WINDSCREEN

68181-06J00

$33.63

2

CUSHION, WINDSCREEN FRONT NO.2

33652-48E00

$2.87

3

CUSHION, WINDSCREEN FRONT

94422-06G00

$5.82

4

WINDSCREEN

94611-06J00

$823.87

5

COVER, WINDSCREEN

94612-06J10

$163.02

6

PANEL, WINDSCREEN RH

94613-06J00

$17.18

7

PANEL, WINDSCREEN LH

94614-06J00

$17.18

8

CUSHION, WINDSCREEN REAR

94616-06J10

$182.68

9

BRACE, WINDSCREEN

94621-06J10

$211.72

10

NUT

09159-05019

$7.14

11

NUT

09159-05048

$7.22

12

WASHER (5.2X14X1.5)

09161-05017

$3.18

13

SCREW

02142-1516B

$2.83

14

SCREW

02142-1520B

$2.28

15

SCREW

03541-0516B

$1.78

16

BRACE, WINDSCREEN UPPER

94630-06J10

$107.25

17

BRACE, WINDSCREEN LOWER

94640-06J10

$107.25

18

PLATE, WINDSCREEN LOWER

94651-06J00

Unavailable

19

BOLT (8X16)

01550-0816A

$2.32

20

BOLT

07130-0845A

$4.32
