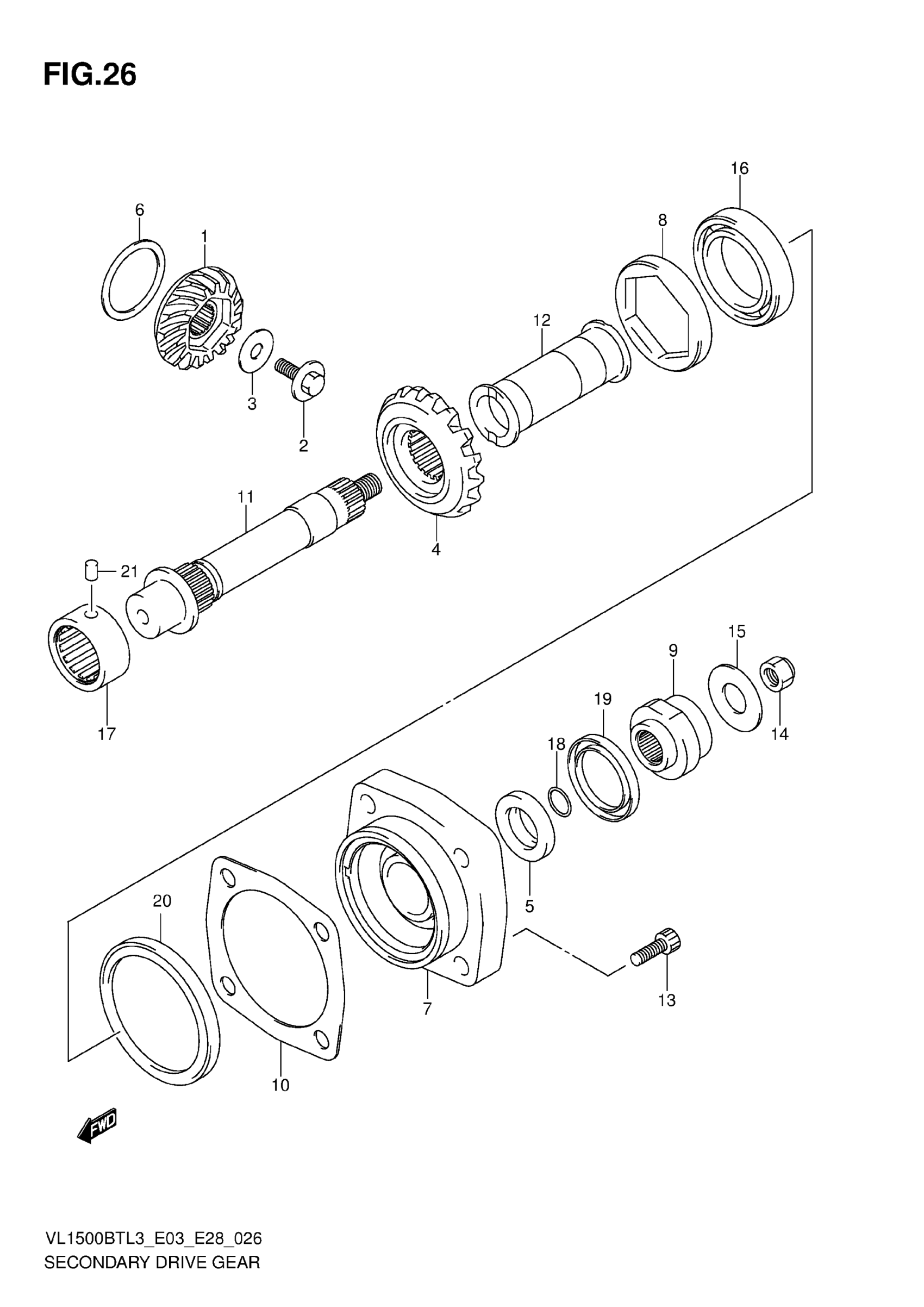

Suzuki VL1500BTL3 (2013) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR, SECONDARY DRIVE (NT:17)

24911-40H00

$317.10

2

BOLT (12X24)

09103-12114

$18.30

3

WASHER

08211-12341

$3.20

4

GEAR, SECONDARY DRIVEN (NT:20)

24921-40H00

Unavailable

5

SPACER, SECONDARY SHAFT

21102-31G00

$25.95

6

SHIM SET, SECONDARY DRIVE | T:0.80/0.85/0.90/0.95/1.00/1.05/ 1.10/1.15/1.20

24935-40810

$110.67

7

HOUSING, SEC DRIVEN BEARING

24941-40H00

Unavailable

8

STOPPER, SEC DRIVEN BEARING

24942-26D00

$72.00

9

COUPLING, SEC DRIVEN BEVEL

24943-40H00

Unavailable

10

SHIM SET, SECONDARY DRIVEN | T:0.30/0.35/0.40/0.50/0.60

24945-40810

$43.27

11

SHAFT, SECONDARY DRIVEN BEVEL

24961-40H00

Unavailable

12

SPACER, SECONDARY DRIVEN BEVEL

24962-40H00

Unavailable

13

BOLT (10X30)

09106-10087

$6.20

14

NUT

09159-16003

$4.00

15

WASHER (16.5X36X4)

09160-16040

$11.73

16

BEARING (28X68X18) | REAR

09262-28014

$57.95

17

BEARING (32X50X22) | FRONT

09263-32021

$141.27

18

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.03

19

OIL SEAL (38X54X6)

09283-38011

$17.92

20

OIL SEAL (76X84X7)

09286-84001

$23.07

21

PIN (7X12)

09202-07005

$6.70
