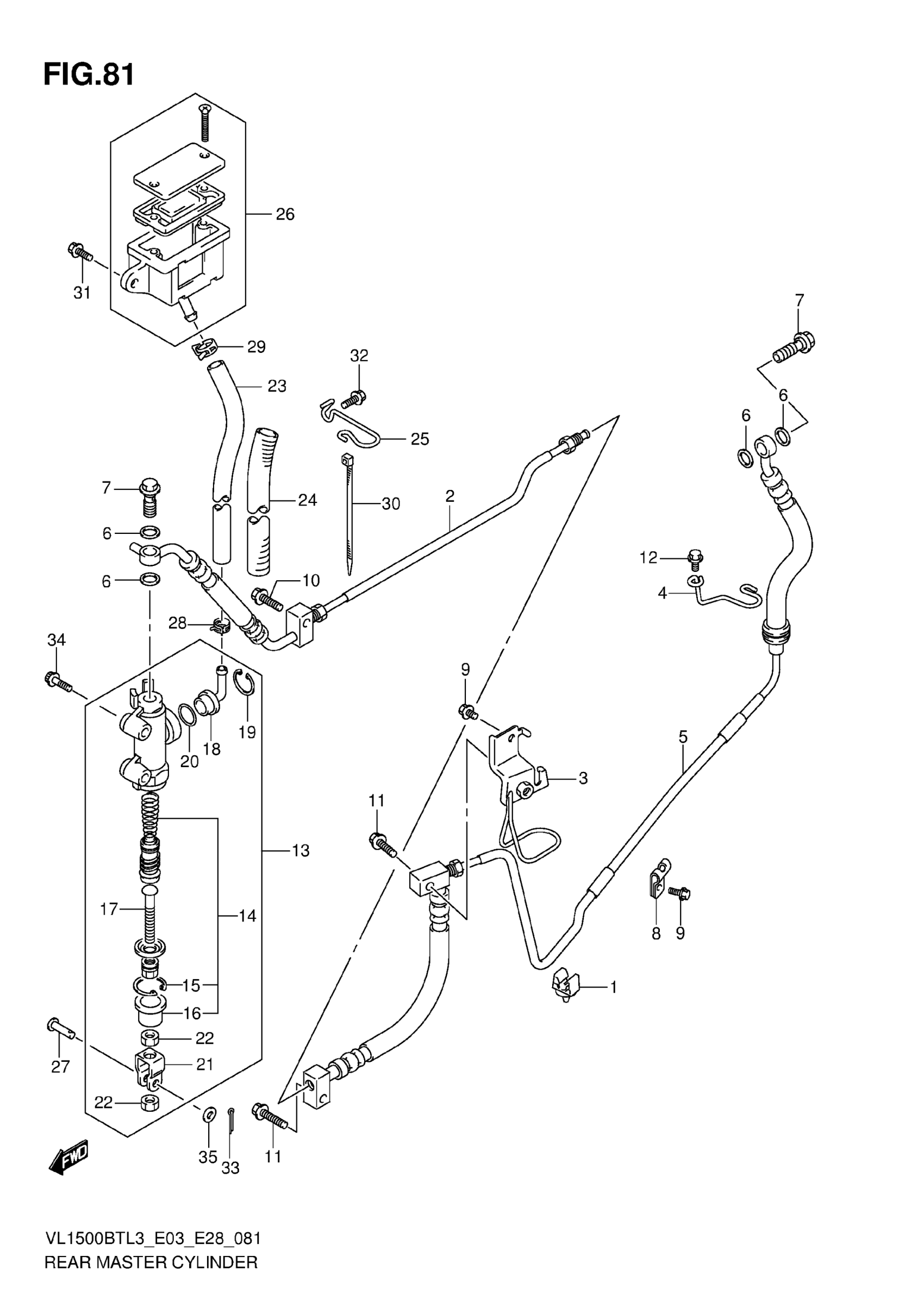

Suzuki VL1500BTL3 (2013) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CLAMP, REAR BRAKE PIPE

51761-79J00

Unavailable

2

HOSE ASSY, REAR BRAKE NO.1

69200-40H00

Unavailable

3

CLAMP, REAR BRAKE HOSE

69260-40H10

Unavailable

4

GUIDE, REAR BRAKE HOSE

69278-40H10

Unavailable

5

HOSE This part replaces 69400-40H00.

69400-40H01

$232.97

6

WASHER (10X15X1.5)

09161-10009

$1.83

7

UNION

09360-10062

$5.81

8

CLAMP

09403-07401

Unavailable

9

BOLT

01547-0612A

$2.01

10

BOLT

01547-0620A

$2.01

11

BOLT

01547-0625A

$2.01

12

BOLT

01550-0612A

$1.97

13

CYLINDER ASSY, REAR MASTER

69600-48G10

Unavailable

14

PISTON/CUP SET

69600-40810

Unavailable

15

CIRCLIP

51162-70040

$3.67

16

.BOOT

69691-00A00

$5.00

17

ROD, PUSH

69670-44B00

Unavailable

18

CONNECTOR

69672-00B20

$6.42

19

CIRCLIP

69674-00B20

$3.73

20

O RING

69686-34200

$2.80

21

YOKE

69692-19A00

$19.03

22

NUT

69693-05A00

$1.86

23

HOSE, REAR RESERVOIR TANK

69730-40H00

Unavailable

24

HEATSHIELD, RESERVER TANK HOSE

69732-40H00

Unavailable

25

GUIDE, RESERVER TANK HOSE

69738-40H10

Unavailable

26

TANK ASSY, REAR RESERVOR

69740-40H00

Unavailable

27

PIN (6X18.2)

09200-06068

$3.71

28

CLIP

09401-12404

$2.37

29

CLIP

09401-13417

$2.24

30

CLAMP (L:145)

09407-14407

$2.80

31

BOLT

01547-0616A

$2.01

32

SCREW This part replaces 02162-0616A.

02162-0616B

$2.06

33

COTTER PIN

04111-2015A

$1.22

34

BOLT

07120-0625A

$2.50

35

WASHER

08322-0106A

$1.83
