2013 Suzuki VL1500BTL3 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2013 Suzuki VL1500BTL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

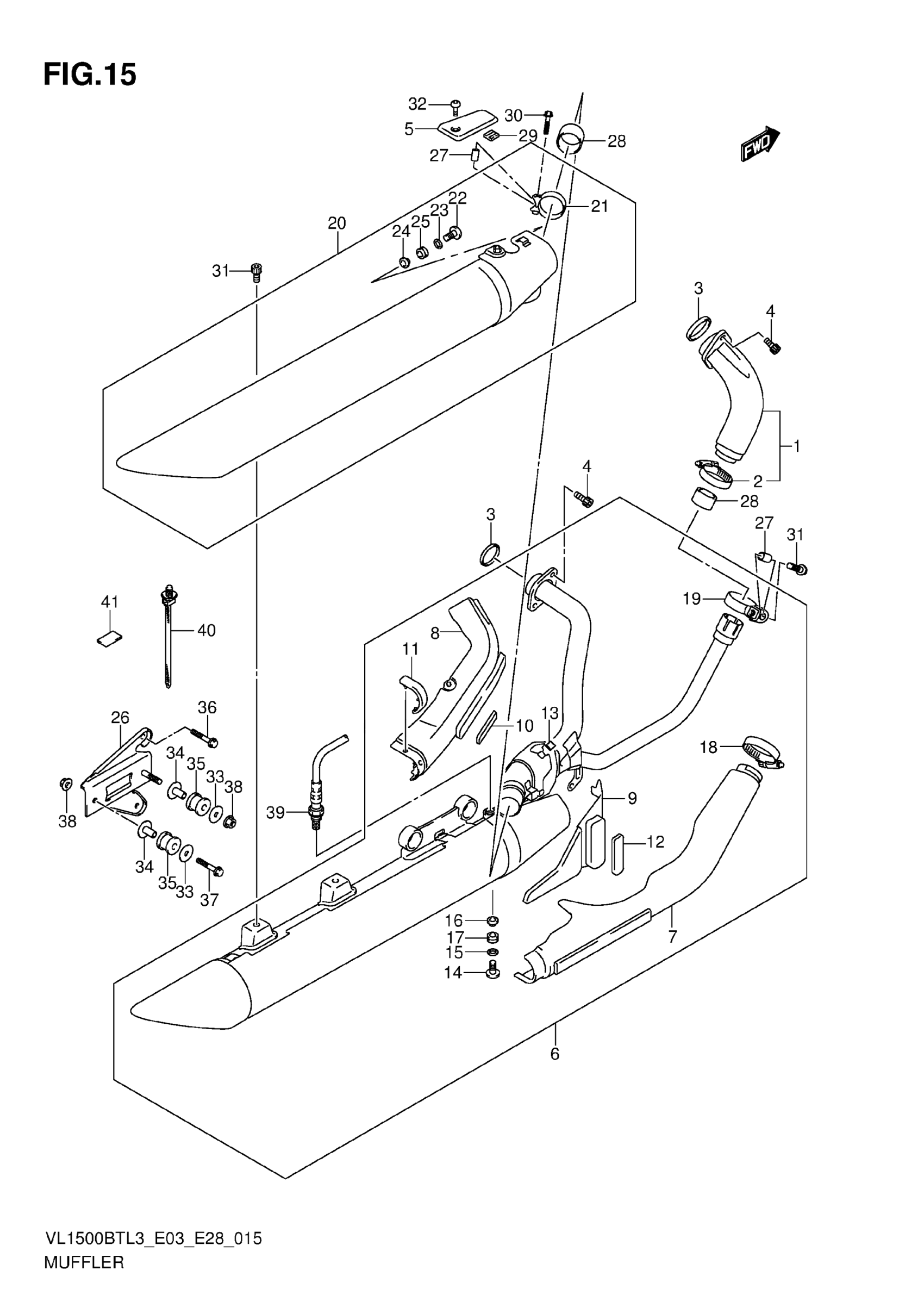

2013 Suzuki VL1500BTL3 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST FRONT This part replaces 14150-40H10.

14150-40H11

1
Out of stock

2

CLAMP

09402-45503

1
Out of stock

3

GASKET, EXHAUST PIPE

14181-31D00

2
Out of stock

4

BOLT (8X30)

09106-08175

4
Out of stock

5

COVER, MUFFLER REAR UPPER

14260-06J10

1
Out of stock

6

MUFFLER, FRONT This part replaces 14305-06J20.

14305-06J21

1
Out of stock

7

COVER, EXHAUST FRONT

14170-06J10

1
Out of stock

8

.COVER, EXHAUST REAR This part replaces 14180-06J10.

14180-06J11

1
Out of stock

9

.COVER, EXHAUST CENTER This part replaces 14250-06J10.

14250-06J11

1
Out of stock

10

PROTECTOR, UPPER

14780-48G10

1

$47.41

In stock

11

CUSHION, EXHAUST PIPE COVER

14782-06J00

1
Out of stock

12

PROTECTOR, LOWER

14790-48G20

1

$44.50

In stock

13

GROMMET

14795-10FA0

3
Out of stock

14

SCREW (6X20)

09139-06028

1

$3.58

In stock

15

WASHER (6.5X20X1)

09160-06141

1
Out of stock

16

SPACER (6.2X8.4X10.9)

09180-06331

1
Out of stock

17

CUSHION

09320-08070

1

$12.93

In stock

18

CLAMP

09402-45503

5
Out of stock

19

CLAMP, CONNECTOR

14459-40H00

1
Out of stock

20

BODY, MUFFLER REAR This part replaces 14340-06J20.

14340-06J21

1
Out of stock

21

CLAMP,MUF CONNECTOR

14459-40H00

1
Out of stock

22

SCREW (6X20)

09139-06028

1

$3.58

In stock

23

WASHER (6.5X20X1)

09160-06141

1
Out of stock

24

SPACER (6.2X8.4X10.9)

09180-06331

1
Out of stock

25

CUSHION

09320-08070

1

$12.93

In stock

26

BRACKET, MUFFLER SUPPORT

14410-40H00

1
Out of stock

27

SPACER, MUFFLER CLAMP

14458-45G10

2
Out of stock

28

CONNECTOR

14771-40H00

2
Out of stock

29

GROMMET

14795-10FA0

1
Out of stock

30

BOLT (8X35)

09103-08365

2
Out of stock

31

BOLT (8X20)

09106-08107

2
Out of stock

32

SCREW (6X10)

09139-06172

1
Out of stock

33

WASHER (8.5X33X1.5)

09160-08146

2

$2.80

In stock

34

SPACER (8.6X12X27.1)

09180-08156

2
Out of stock

35

CUSHION

09320-12049

2

$10.34

In stock

36

BOLT (8X16)

01550-0816A

2
Out of stock

37

BOLT

01550-0845A

1
Out of stock

38

NUT

08361-2508A

2

$2.10

In stock

39

SENSOR, OXYGEN

18213-48G00

1
Out of stock

40

CLAMP (L:154)

09407-17403

1
Out of stock

41

CUSHION, O2 SENSOR LEAD

44558-45G00

1
Out of stock
