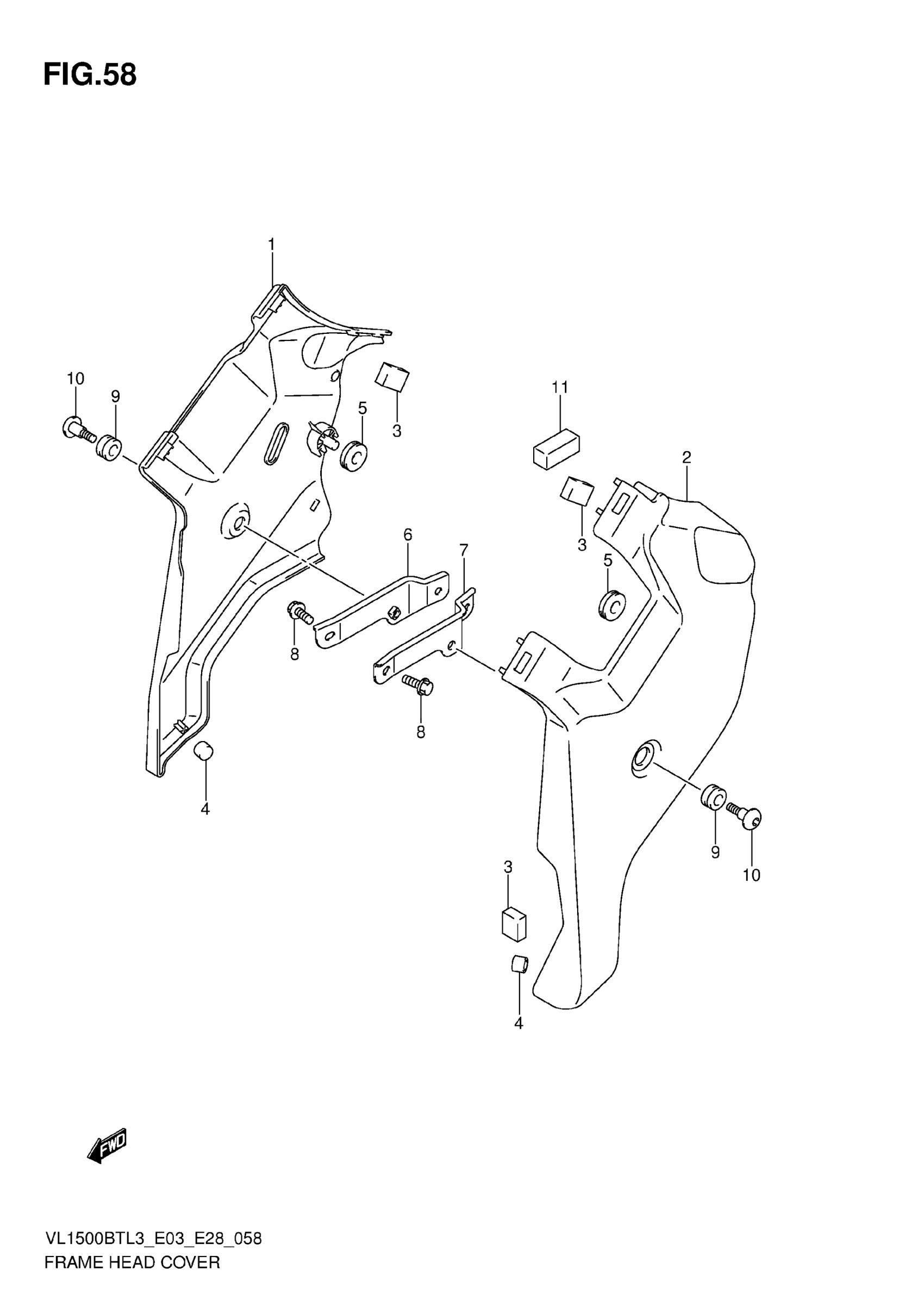

Suzuki VL1500BTL3 (2013) FRAME HEAD COVER Diagram

#

Description
Price

1

COVER, FRAME HEAD RH (BLACK)

47351-06J00-019

$165.70

2

COVER, FRAME HEAD LH (BLACK)

47361-06J00-019

$78.97

3

CUSHION | CUT AS REQUIRED

17798-39G00

$6.12

4

CAP(OD:12.3) This part replaces 09250-12013.

09250-12015

$0.72

5

CUSHION

09320-08018

$2.80

6

PLATE, HEAD COVER RH

47370-40H00

Unavailable

7

PLATE, HEAD COVER LH

47380-40H00

Unavailable

8

BOLT

01547-0616A

$2.01

9

CUSHION

09320-09016

$1.97

10

BOLT (6X20)

09139-06190

$3.77

11

CUSHION | CUT AS REQUIRED

47191-22D00

$5.65
