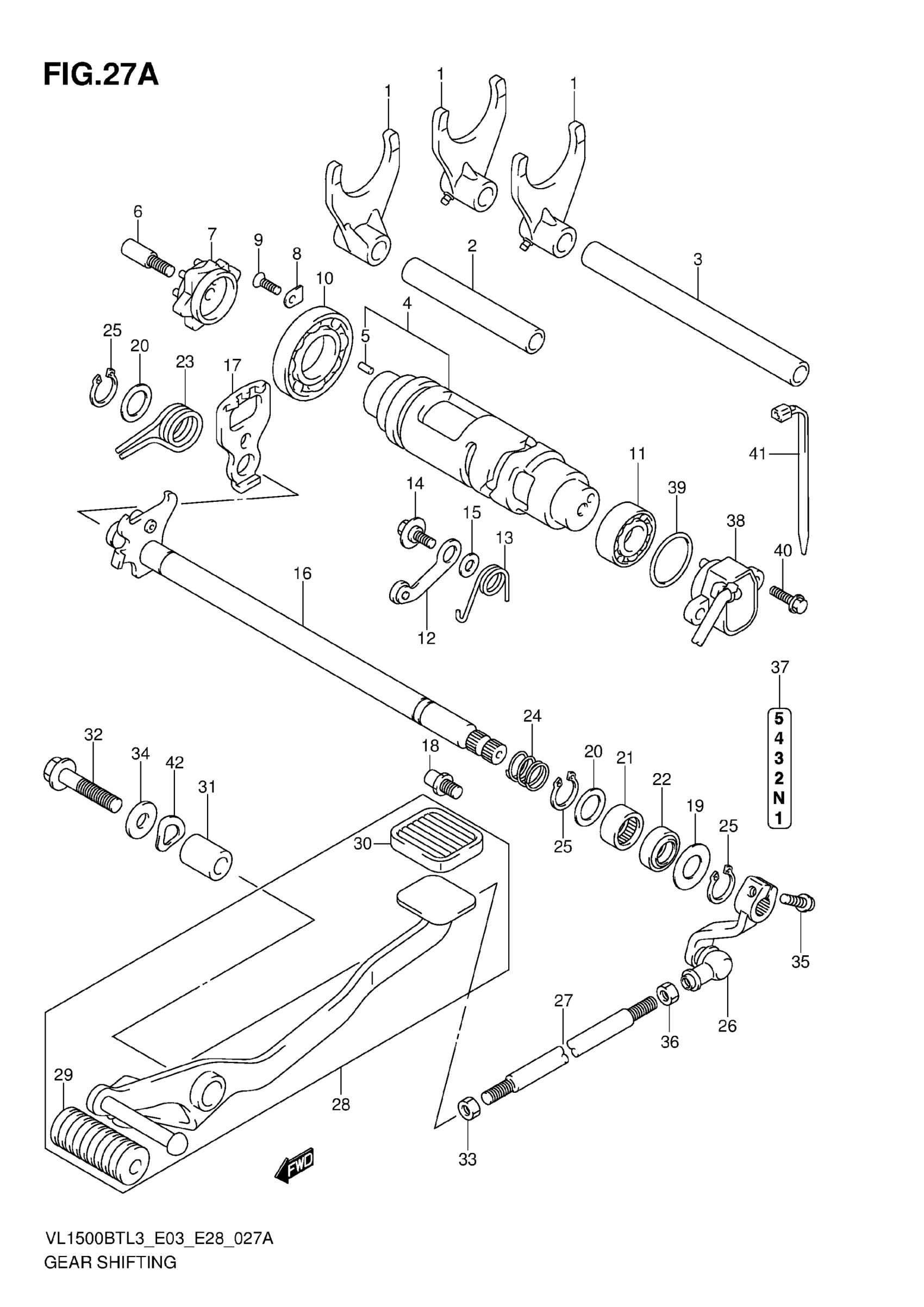

Suzuki VL1500BTL3 (2013) GEAR SHIFTING (FROM JS1VY56A D2 100918) Diagram

#

Description
Price

1

FORK, GEAR SHIFT

25211-35F11

$79.26

2

SHAFT, GEAR SHIFT FORK NO.1

25411-38B01

$32.65

3

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$35.78

4

CAM, GEAR SHIFT

25310-06J00

$295.67

5

PIN (4X13.8)

04221-04089

$1.10

6

STOPPER, SHIFT CAM DRIVE PLATE

25312-42F01

$7.28

7

PLATE, GEAR SHIFT CAM

25381-13E00

$63.22

8

RETAINER

24741-20A00

$2.80

9

SCREW (6X12)

09126-06011

$2.01

10

BEARING | RH

08113-69050

$32.64

11

BEARING (25X32X12) | LH

09263-25018

$19.30

12

STOPPER, SHIFT CAM

25350-24F00

$36.88

13

SPRING, SHIFT CAM STOPPER ARM

25355-06J00

$7.83

14

BOLT (6X14.3)

09111-06041

$2.63

15

WASHER

08211-06141

$1.61

16

SHAFT, GEAR SHIFT

25510-40H00

Unavailable

17

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$22.32

18

STOPPER, GEAR SHIFT ARM

25671-01011

$4.09

19

WASHER (14X29X0.8) | LH

09160-14016

$1.91

20

SHIM (14X22X1)

09181-14167

$2.55

21

BEARING (14X20X12)

09263-14027

$12.21

22

OIL SEAL (14X22X6)

09283-14006

$6.04

23

SPRING

09440-17009

$1.73

24

SPRING

09444-20012

$8.62

25

CIRCLIP

08331-3114A

$1.89

26

ARM,GEAR SHIFT This part replaces 25520-40H00.

25520-40H01

$51.82

27

ROD, GEAR SHIFT LINK

25525-17C20

$19.23

28

LEVER ASSY,GEAR This part replaces 25600-06J10.

25600-06J11

$168.75

29

RUBBER, FRONT

25652-10F00

$6.19

30

RUBBER, REAR

43151-01400

$6.77

31

SPACER, GEAR SHIFT LEVER

25617-22H00

$19.97

32

BOLT (10X40)

09103-10300

$5.75

33

NUT | LH

09140-06025

$1.84

34

WASHER (10.5X24X2.3)

09160-10093

$2.19

35

BOLT

01547-0620A

$2.01

36

.NUT

08310-00067

$1.83

37

LABEL, GEAR SHIFT

68392-38B00

Unavailable

38

SENSOR ASSY,GEA This part replaces 37730-18H02.

37730-18H03

$77.97

39

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

40

BOLT

07120-0516A

$1.72

41

CLAMP (L:125)

09407-14403

$2.24

42

WASHER

09164-18009

$2.58
