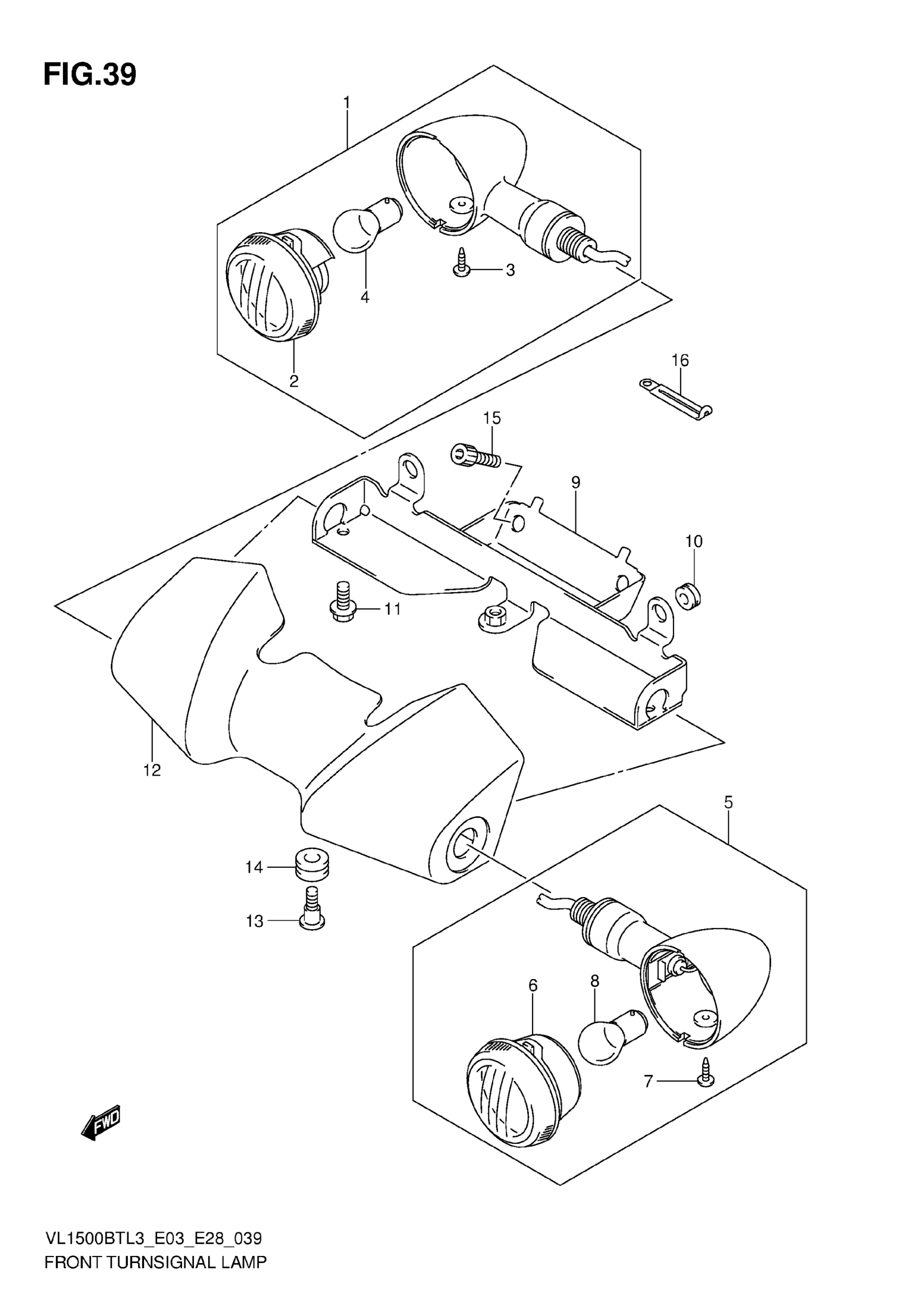

Suzuki VL1500BTL3 (2013) FRONT TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-38AA0

$149.93

2

LENS

35610-38AE1

$28.79

3

SCREW (4X10)

35623-38AA0

$4.67

4

BULB (12V,21W)

09471-12045

$2.95

5

LAMP ASSY, FRONT TURNSIGNAL LH

35602-38AA0

$157.47

6

LENS

35630-38AE1

$29.21

7

SCREW (4X10)

35623-38AA0

$4.67

8

BULB (12V,21W)

09471-12045

$2.95

9

BRACKET

35620-06J00

$66.15

10

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

11

BOLT (6X8)

09103-06275

$2.21

12

COVER, FRONT TURNSIGNAL This part replaces 35641-06JB0.

35641-06JB1

$155.32

13

SCREW (6X16)

09139-06146

$2.80

14

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.12

15

BOLT

07130-0816B

$4.62

16

CLAMP (L:45)

09404-06429

$1.82
