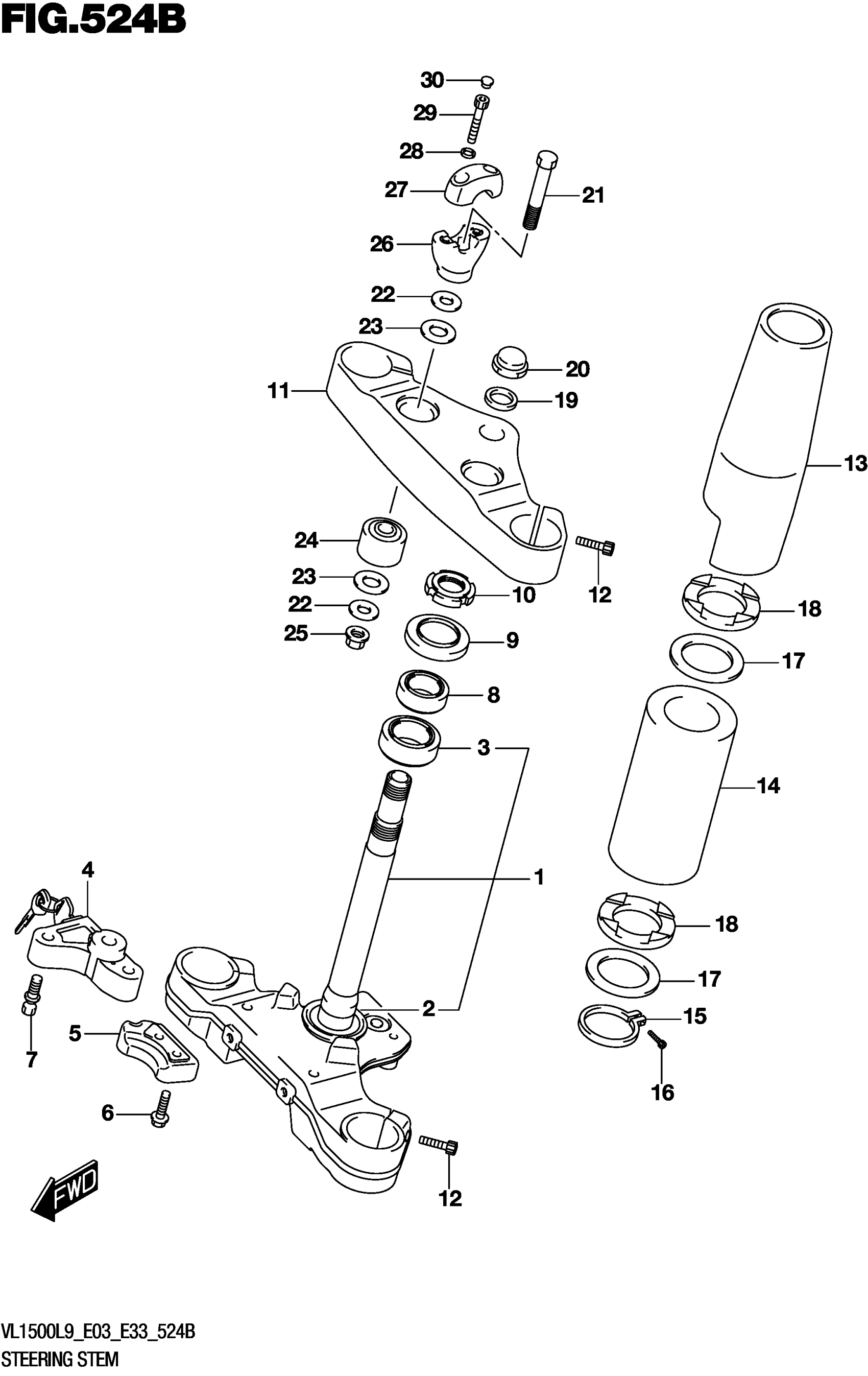

Suzuki VL1500BL9 (2019) STEERING STEM (VL1500BL9 E33) Diagram

#

Description
Price

1

STEM

51410-06J00

Unavailable

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

3

.BEARING (30X55X17)

09265-30020

$44.41

4

LOCK SET

51900-22820

Unavailable

5

BRACKET

51921-40H00

Unavailable

6

BOLT (8X30)

09103-08197

$1.70

7

SCREW,STEERING LOCK

51925-48G00

$8.05

8

BEARING (25X47X15)

09265-25038

$45.57

9

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

10

NUT,STEERING STEM

51631-31F00

$19.87

11

BRACKET

51311-06J20

$725.63

12

BOLT This part replaces 51321-10F00.

07130-08307

$3.89

13

COVER

51531-06J20

$166.00

14

CASE

51464-06J20

Unavailable

15

SPACER

51465-06J00

$73.95

16

BOLT

51466-10F00

$7.53

17

WASHER

51467-06J00

Unavailable

18

SEAT

51468-06J00

Unavailable

19

WASHER (22.5X32X1.6)

51356-24B01

$5.38

20

NUT, STEM This part replaces 51353-38A01.

51353-24B00

$30.67

21

BOLT

51226-10F70

Unavailable

22

WASHER

51354-41F20

$8.85

23

SEAT,RUBBER

56245-41F20

$8.12

24

DAMPER,RUBBER

56240-41F20

$40.87

25

NUT

56246-41F20

$12.58

26

HOLDER

56221-06J20

Unavailable

27

HOLDER

56211-06J20

Unavailable

28

WASHER

09164-08015

$3.21

29

BOLT This part replaces 51321-10F00.

07130-08307

$3.89

30

CAP (OD:11)

09250-06011

$2.50
