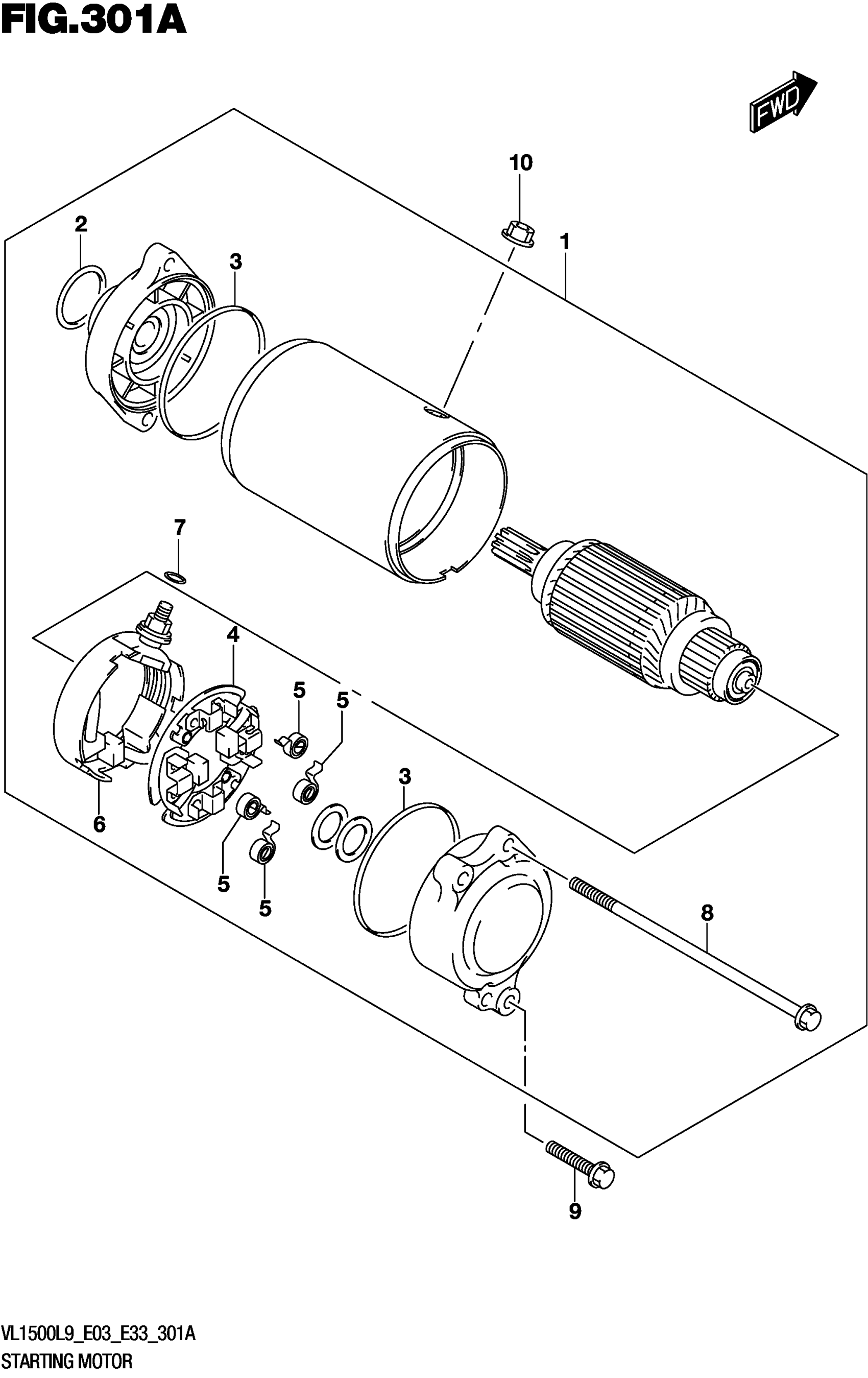

Suzuki VL1500BL9 (2019) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

31100-40H01

$743.02

2

.O-RING (D:3.1,ID:24.4)

31156-98E00

$3.89

3

O RING This part replaces 31264-31300.

31264-32E00

$6.68

4

.HOLDER SET,BRUSH

31132-38B00

$69.35

5

.SPRING,BRUSH

31135-38B00

$5.40

6

.TERMINAL SET,BRUSH

31130-38B00

$69.35

7

.O-RING

31143-49040

$3.71

8

BOLT This part replaces 31281-24B10.

31281-31D00

$8.65

9

BOLT

01547-0625A

$2.01

10

NUT

08361-3506A

$1.80
