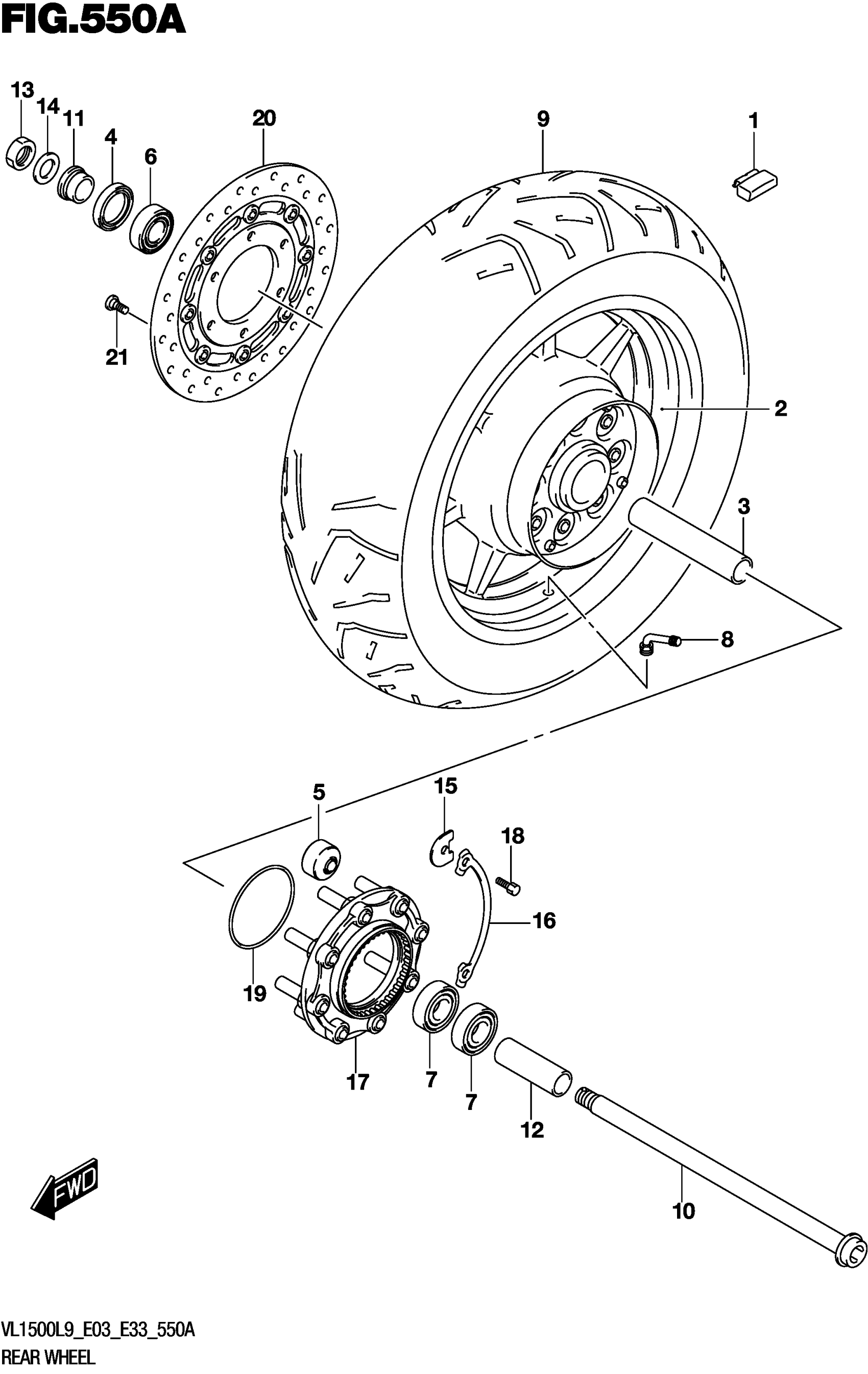

Suzuki VL1500BL9 (2019) REAR WHEEL (VL1500BL9 E03) Diagram

#

Description
Price

1-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$9.70

1-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$11.37

1-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$12.93

2

WHEEL

64111-06J10-019

Unavailable

2

WHEEL

64111-06J10-019

Unavailable

3

SPACER

64731-40H00

$46.98

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5

BUSH (12X41X34)

09319-12019

$12.00

6

BEARING (25X52X15) | RH This part replaces 09262-25167.

09262-25191

$21.91

7

BEARING (25X52X15) | LH

08143-62057

$22.02

8

VALVE ASSY

43130-39H00

$66.18

9

TIRE | G852 RADIAL G

65110-06J00

Unavailable

9

TIRE | BRIDGESTONE

65110-06J00

Unavailable

10

AXLE,REAR

64711-48G00

$242.02

11

SPACER,REAR AXLE RH

64741-48G00

$29.88

12

SPACER,REAR AXLE LH

64772-48G00

$45.40

13

NUT

64721-13K00

$11.54

14

WASHER (22X35X2)

09160-22081

$2.80

15

WASHER,THRUST

64677-48G10

$8.37

16

WASHER,REAR HUB DRIVEN JOINT

64679-48G00

$7.10

17

JOINT ASSY,REAR HUB DRIVEN

64680-48G00

$425.25

18

BOLT (6X16)

09119-06049

$1.63

19

O-RING (D:2.4,ID:79.8)

09280-80001

$3.52

20

DISC

69210-10F40

$480.35

21

BOLT (8X21)

09106-08160

$3.22
