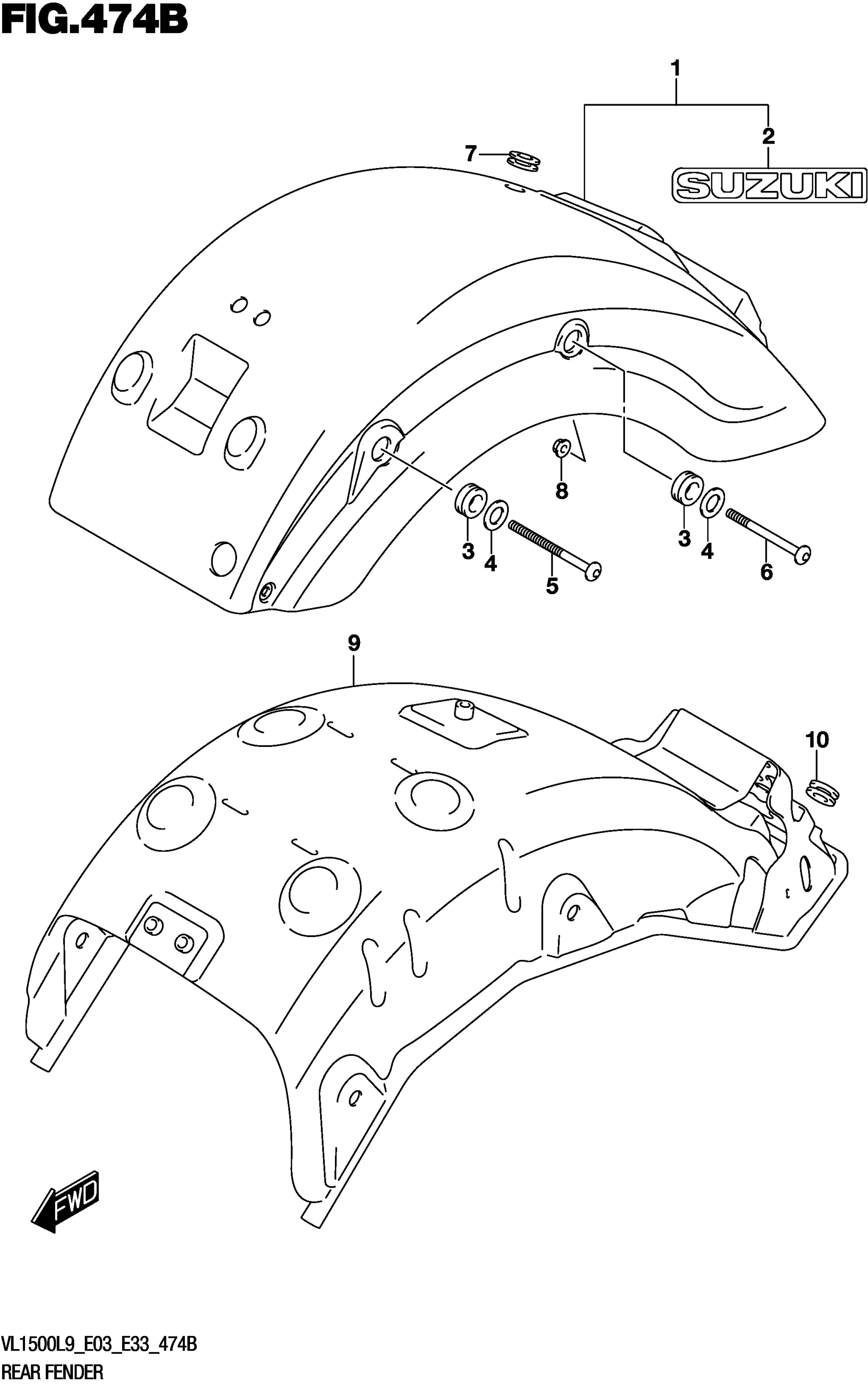

Suzuki VL1500BL9 (2019) REAR FENDER (VL1500BL9 E33) Diagram

#

Description

Price

1-1

FENDER,REAR | FOR YVB This part replaces 63110-06J00-6UX.

63110-06J01-6UX

$1,316.82

1-2

FENDER, REAR (GRAY) | FOR YWB

63110-06J00-YWB

Unavailable

2-1

EMBLEM,"SUZUKI" | FOR YVB This part replaces 68271-34A00-YJH.

68271-34A01-YJH

$8.35

2-2

EMBLEM,"SUZUKI" | FOR YWB This part replaces 68271-34A00-019.

68271-34A01-20G

$5.45

3

CUSHION (16X26X8)

47191-24F00

$5.17

4

WASHER (15.5X26X2.3)

09160-15002

$1.91

5

BOLT | FRONT

63161-06J10

$6.27

6

BOLT,REAR FENDER | REAR

63161-41F00

$9.40

7

CUSHION

09320-15008

$3.89

8

NUT

08316-1008A

$2.45

9

REINFORCE

63130-06J01

$311.72

10

GROMMET (10X35X9.5)

09308-10017

$5.20
