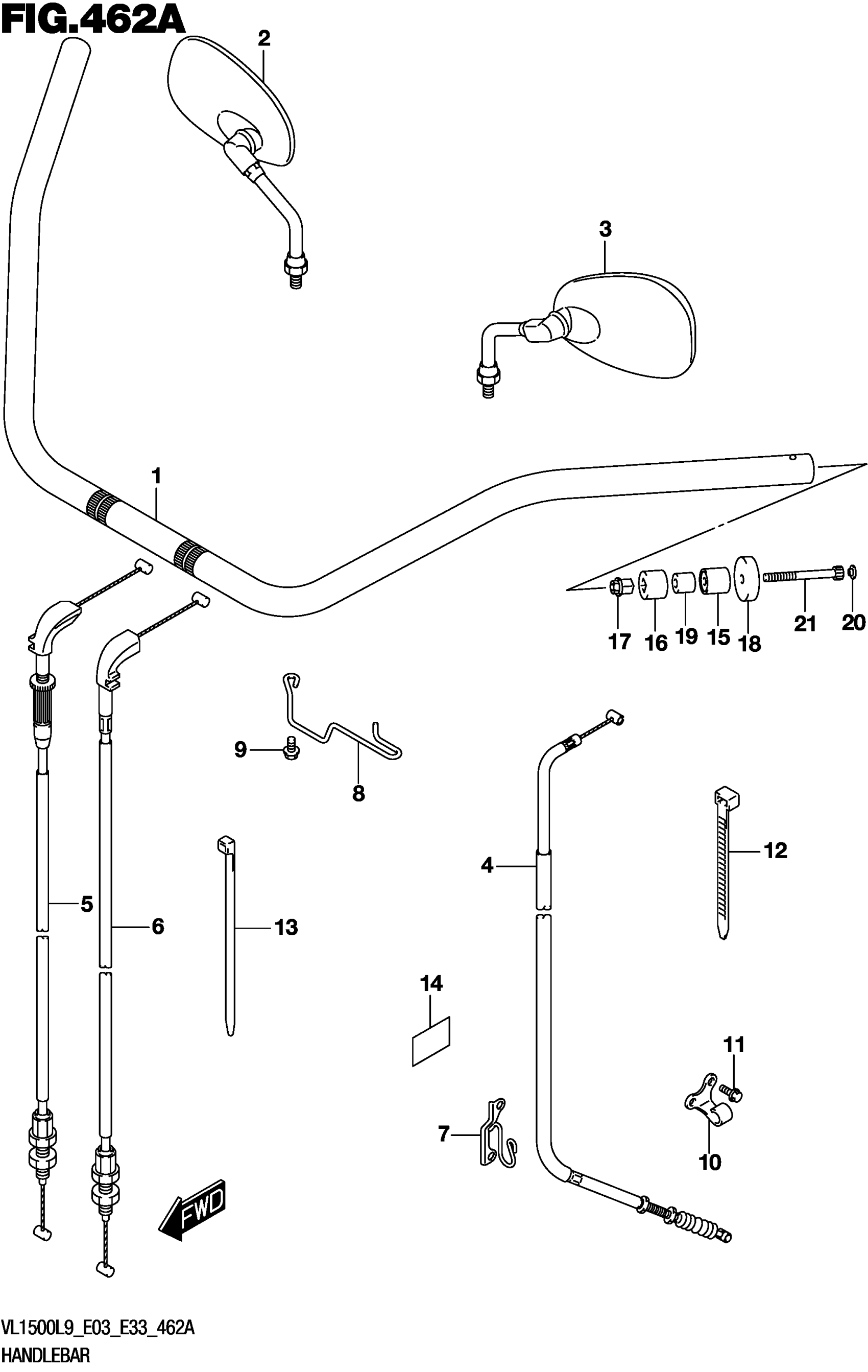

Suzuki VL1500BL9 (2019) HANDLEBAR (VL1500BL9 E03) Diagram

#

Description
Price

1

HANDLEBAR

56111-06J10

$164.05

2

MIRROR ASSY,RR VIEW RH

56500-41F90

$152.93

3

MIRROR ASSY,RR VIEW LH

56600-41F90

$152.20

4

CABLE ASSY

58200-06J01

$52.47

5

CABLE ASSY,THRO This part replaces 58300-06J00.

58300-06J01

$30.28

6

CABLE ASSY,THRO This part replaces 58300-06J10.

58300-06J11

$27.12

7

GUIDE

58620-06J10

Unavailable

8

GUIDE

58621-06J00

Unavailable

9

BOLT

01550-0612A

$1.97

10

STOPPER

58634-40H00

$15.42

11

BOLT

01547-0612A

$2.03

12

CLAMP (L:190)

09407-19401

$3.05

13

CLAMP (L:145)

09407-14407

$3.57

14

PROTECTOR,COWL UNDER (30X20X0

94474-17H00

$4.58

15

EXPANDER

56271-26D20

$4.80

16

.EXPANDER,HANDLE BALANCER

56272-10G10

$4.73

17

.NUT,HANDLE BALANCER

56273-10G10

$8.65

18

BALANCER

56278-22H00

$52.23

19

.SPACER (6.5X16X15)

09180-06161

$6.53

20

CAP (OD:10)

09250-05008

$3.76

21

BOLT

07130-0660A

$2.92
