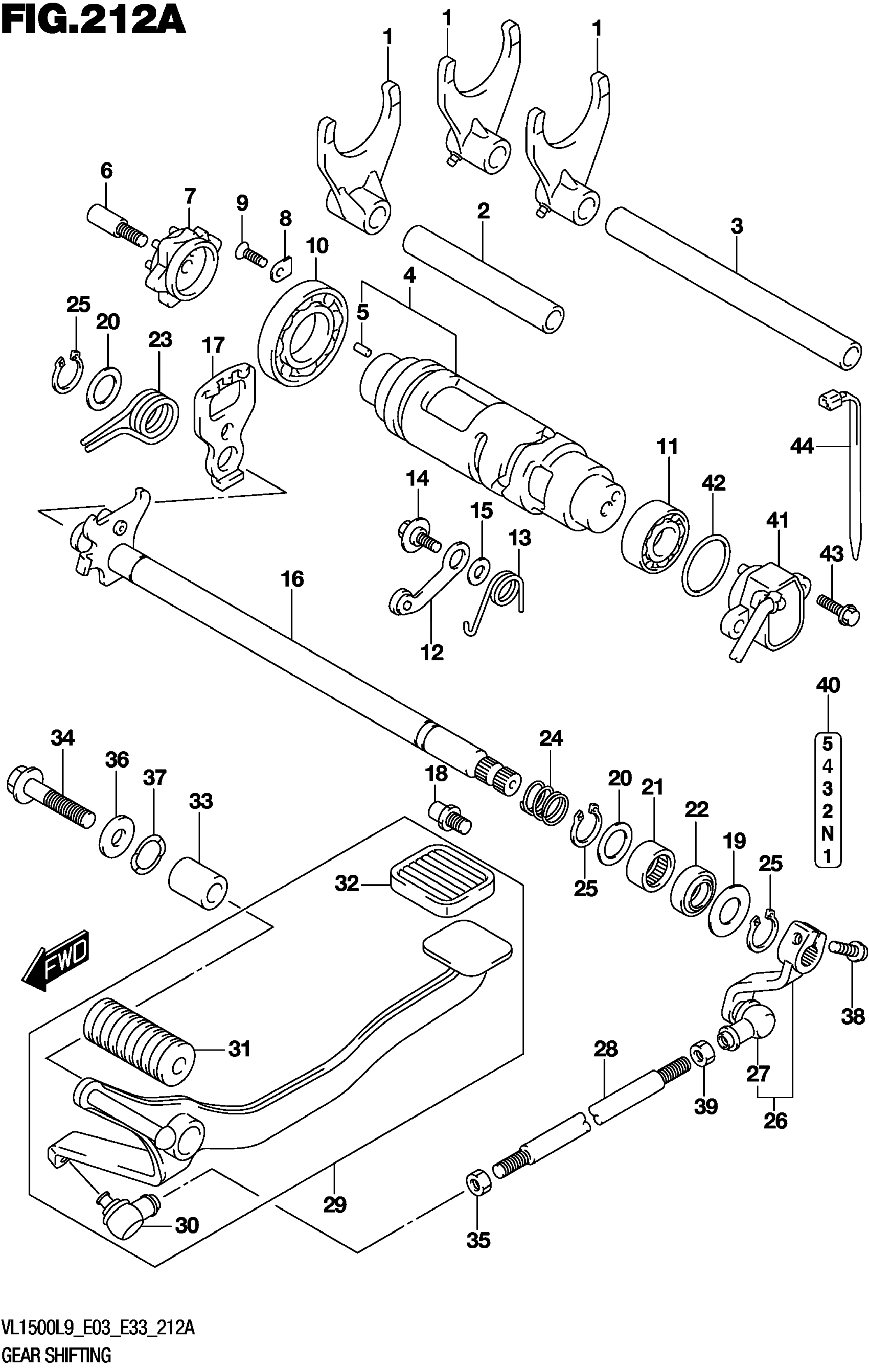

Suzuki VL1500BL9 (2019) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT

25211-17E02

$72.60

2

SHAFT,GEAR SHIFT FORK (L:152)

25411-38B01

$28.93

3

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$31.70

4

CAM

25310-06J00

$265.70

5

PIN (4X13.8)

04221-04089

$1.49

6

BOLT,GEAR SHIFT CAM PLATE

25312-42F01

$7.95

7

PLATE,GEAR SHIFT CAM

25381-13E00

$56.02

8

RETAINER

24741-20A00

$2.81

9

SCREW (6X12)

09126-06011

$2.03

10

BEARING | RH

08113-69050

$35.66

11

BEARING (25X32X12) | LH

09263-25018

$21.39

12

STOPPER,SHIFT CAM

25350-24F00

$34.15

13

SPRING,SHIFT CAM STOPPER

25355-06J00

$6.93

14

BOLT (6X14.3)

09111-06041

$2.61

15

WASHER

08211-06141

$1.59

16

SHAFT

25510-40H00

Unavailable

17

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

18

STOPPER,GEAR SHIFT ARM

25671-01011

$4.48

19

WASHER (14X29X0.8) | LH

09160-14016

$1.93

20

SHIM (14X22X1.0)

09181-14167

$2.53

21

BEARING (14X20X12)

09263-14027

$13.52

22

OIL SEAL (14X22X6)

09283-14006

$6.70

23

SPRING

09440-17009

$1.71

24

SPRING

09444-20012

$7.94

25

CIRCLIP

08331-3114A

$1.91

26

ARM,GEAR SHIFT This part replaces 25520-40H00.

25520-40H01

$45.92

27

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

28

ROD

25525-17C20

$17.03

29

LEVER ASSY,GEAR This part replaces 25600-06J10.

25600-06J11

$153.12

30

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

31

.RUBBER

25652-10F00

$6.58

32

.RUBBER

43151-01400

$6.00

33

SPACER

25617-22H00

$17.70

34

BOLT (10X40)

09103-10300

$6.28

35

NUT | LH

09140-06025

$2.05

36

WASHER (10.5X24X2.3)

09160-10093

$2.35

37

WASHER

09164-18009

$2.38

38

BOLT

01547-0620A

$2.03

39

NUT

08310-0006A

$1.84

40

LABEL,GEAR SHIFT

68392-38B00

Unavailable

41

SENSOR ASSY,GEA This part replaces 37730-18H02.

37730-18H03

$83.58

42

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

43

BOLT

07120-0516A

$2.28

44

CLAMP (L:125)

09407-14403

$2.26
