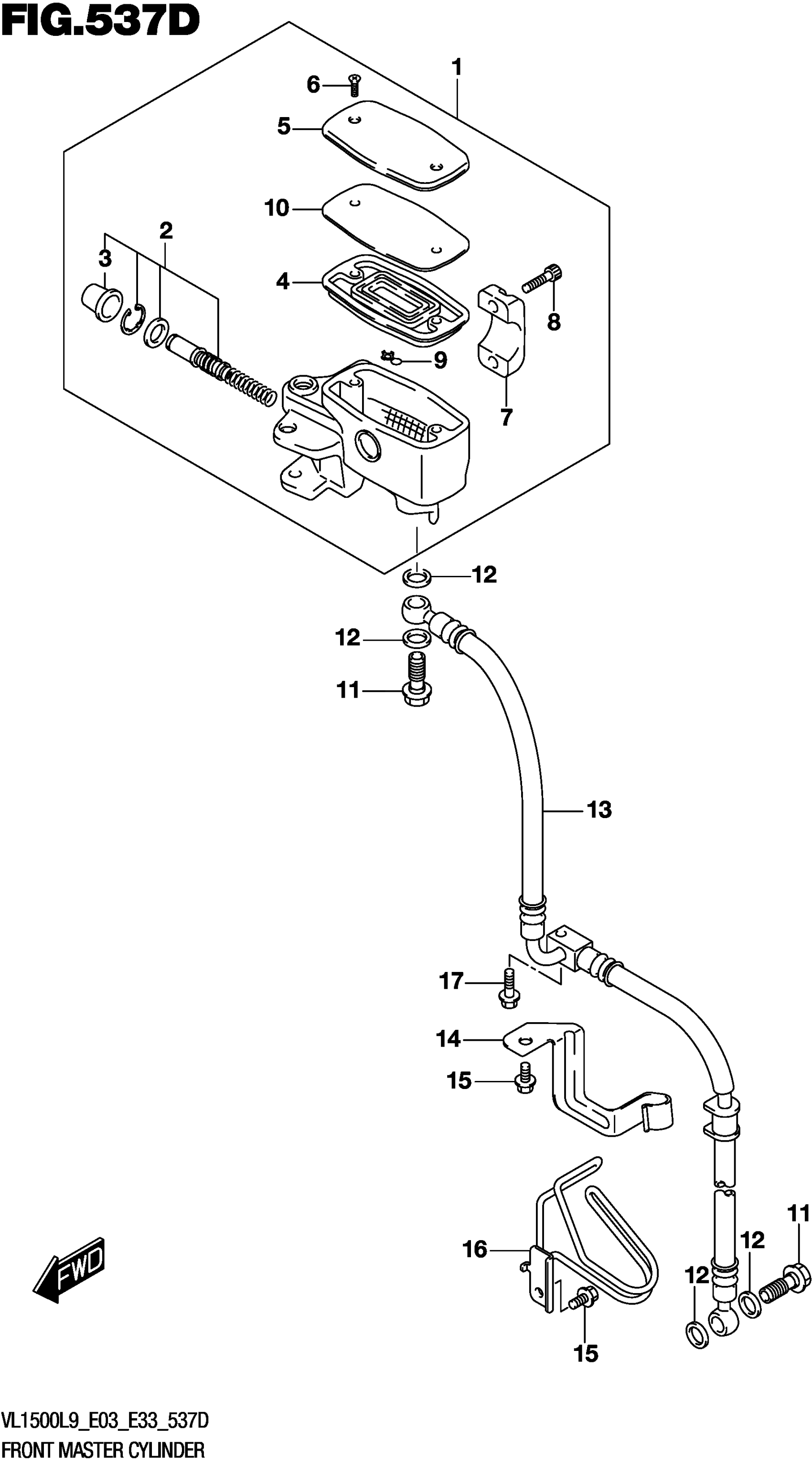

Suzuki VL1500BL9 (2019) FRONT MASTER CYLINDER (VL1500TL9 E33) Diagram

Description

Price

CYLINDER ASSY

59600-10FM0

Unavailable

.PISTON & CUP SET

59600-03820

$42.02

..BOOT

59666-44300

$5.80

.DIAPHRAGM

59667-10F00

$10.10

.CAP

59669-10F50

$35.07

.SCREW

69689-49300

$1.91

.HOLDER

59671-10F20

Unavailable

.BOLT

07130-06207

$3.04

.PROTECTOR

59664-32F00

$11.68

.PLATE,DIAPHRAGM

57437-10F00

$21.03

UNION (10X1.25X22)

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE This part replaces 59480-06J10.

59480-06J11

$114.05

CLAMP

59271-06J00

Unavailable

BOLT

01547-0612A

$2.03

GUIDE

59540-06J00

Unavailable

BOLT

01547-0625A

$2.01
