Description

Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-10G30

$326.67

6

BRACKET

32830-40H10

Unavailable

7

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

8

COIL ASSY, IGNITION

33410-40H01

$106.57

9

COIL ASSY

33420-40H11

$125.47

10

CUSHION,HIGH TENSION CORD (58

33442-41F00

Unavailable

11

SPACER (6.4X10X22) | REAR

09180-06178

$4.50

12

SPACER (6.2X12X16) | FRONT

09180-06198

$4.32

13

CLAMP (L:165)

09407-18402

$2.19

14

BOLT | FRONT

01547-0635A

$2.30

15

BOLT | REAR

01547-0640A

$2.32

16

CAP,SPARK PLUG (SIDE)

33510-38B00

$31.72

17

CAP

33510-45010

$24.99

18

SEAL,SPARK PLUG

33541-47D00

$7.83

19

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

20

CONTROL UNIT

32920-06J60

$1,693.17

21

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

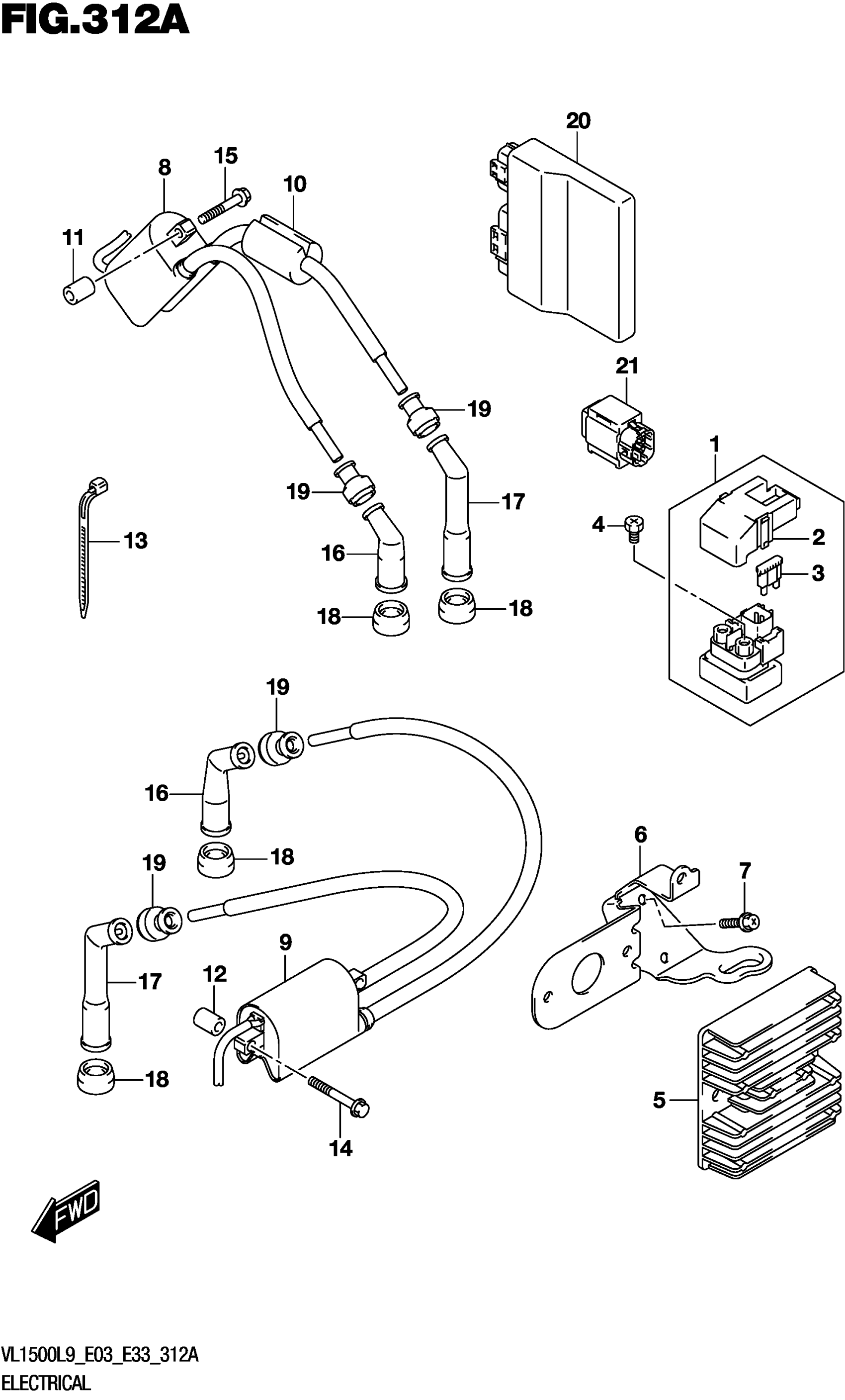

Suzuki VL1500BL9 (2019) ELECTRICAL (VL1500BL9 E03) Diagram
