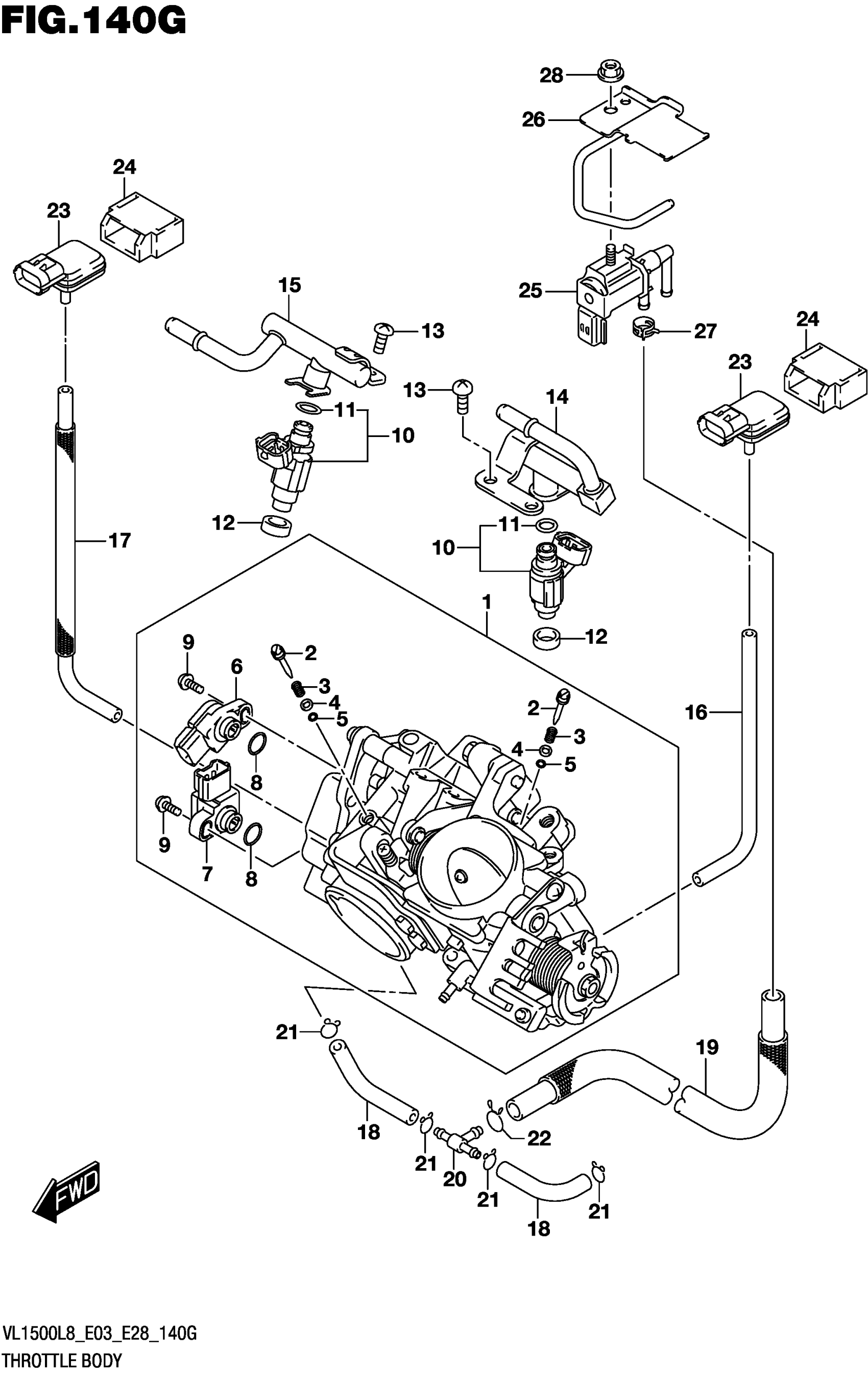

Suzuki VL1500BL8 (2018) THROTTLE BODY (VL1500TL8 E33) Diagram

#

Description
Price

1

BODY

13405-40HB0

Unavailable

2

SCREW

13269-33E00

$10.45

3

SPRING,THROTTLE SCREW

13268-48700

$3.97

4

WASHER

13606-47A00

$3.70

5

O-RING This part replaces 13295-29900.

13295-29901

$3.97

6

.SENSOR ASSY

13580-48G10

$168.12

7

.SENSOR ASSY

13580-48G00

$226.37

8

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

9

.SCREW

13605-02F00

$3.50

10

INJECTOR ASSY

15710-48G00

$251.25

11

.O-RING

15717-58B00

$9.11

12

SEAL

15722-29G00

$10.01

13

.SCREW

13602-06148

$4.08

14

PIPE ASSY

15730-40H00

Unavailable

15

PIPE ASSY

15730-40H10

Unavailable

16

HOSE This part replaces 13683-48G00.

13683-48G01

$35.97

17

HOSE

13683-40H10

Unavailable

18

.HOSE

13683-48G21

$72.12

19

HOSE

13683-40H20

Unavailable

20

NIPPLE

13685-04F10

$12.50

21

CLIP (ID:6.5)

09401-06101

$2.06

22

CLIP This part replaces 09401-10410.

09401-10401

$1.45

23

SENSOR

18591-41F00

Unavailable

24

HOLDER

18595-33G00

Unavailable

25

VALVE,CANISTER PURGE

18117-52G10

$168.22

26

BRACKET

18119-06J00

Unavailable

27

CLIP

09401-10411

$3.05

28

NUT (6X12)

08316-1006A

$2.19
