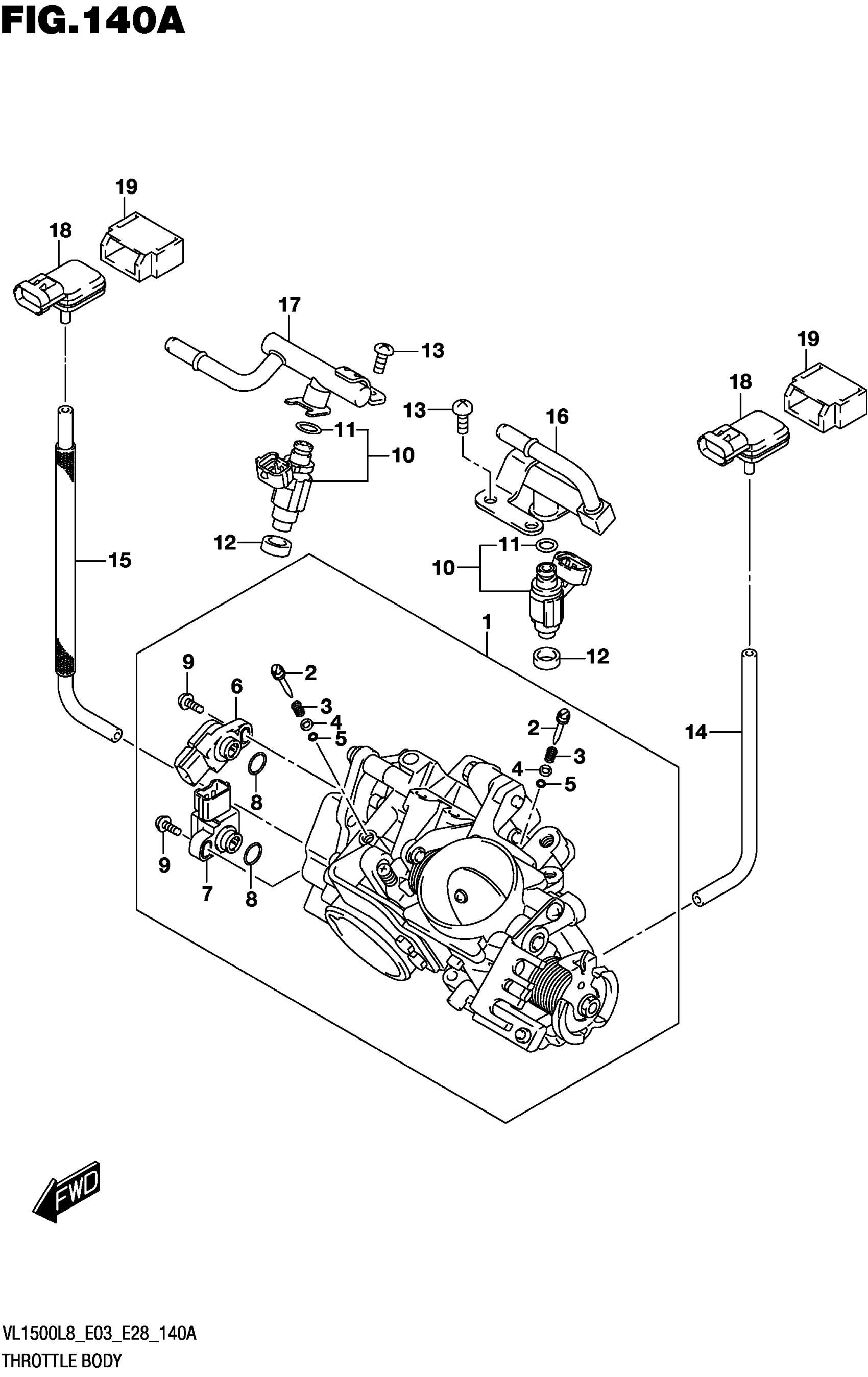

Suzuki VL1500BL8 (2018) THROTTLE BODY (VL1500BL8 E03) Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13405-40HA0.

13405-40HA1

$1,319.38

2

SCREW

13269-33E00

$10.45

3

SPRING,THROTTLE SCREW

13268-48700

$3.97

4

WASHER

13606-47A00

$3.70

5

O-RING This part replaces 13295-29900.

13295-29901

$3.97

6

.SENSOR ASSY

13580-48G10

$168.12

7

.SENSOR ASSY

13580-48G00

$226.37

8

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

9

.SCREW

13605-02F00

$3.50

10

INJECTOR ASSY

15710-48G00

$251.25

11

.O-RING

15717-58B00

$9.11

12

SEAL

15722-29G00

$10.01

13

.SCREW

13602-06148

$4.08

14

HOSE This part replaces 13683-48G00.

13683-48G01

$35.97

15

HOSE

13683-40H10

Unavailable

16

PIPE ASSY

15730-40H00

Unavailable

17

PIPE ASSY

15730-40H10

Unavailable

18

SENSOR

18591-41F00

Unavailable

19

HOLDER

18595-33G00

Unavailable
