2018 Suzuki VL1500BL8 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2018 Suzuki VL1500BL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

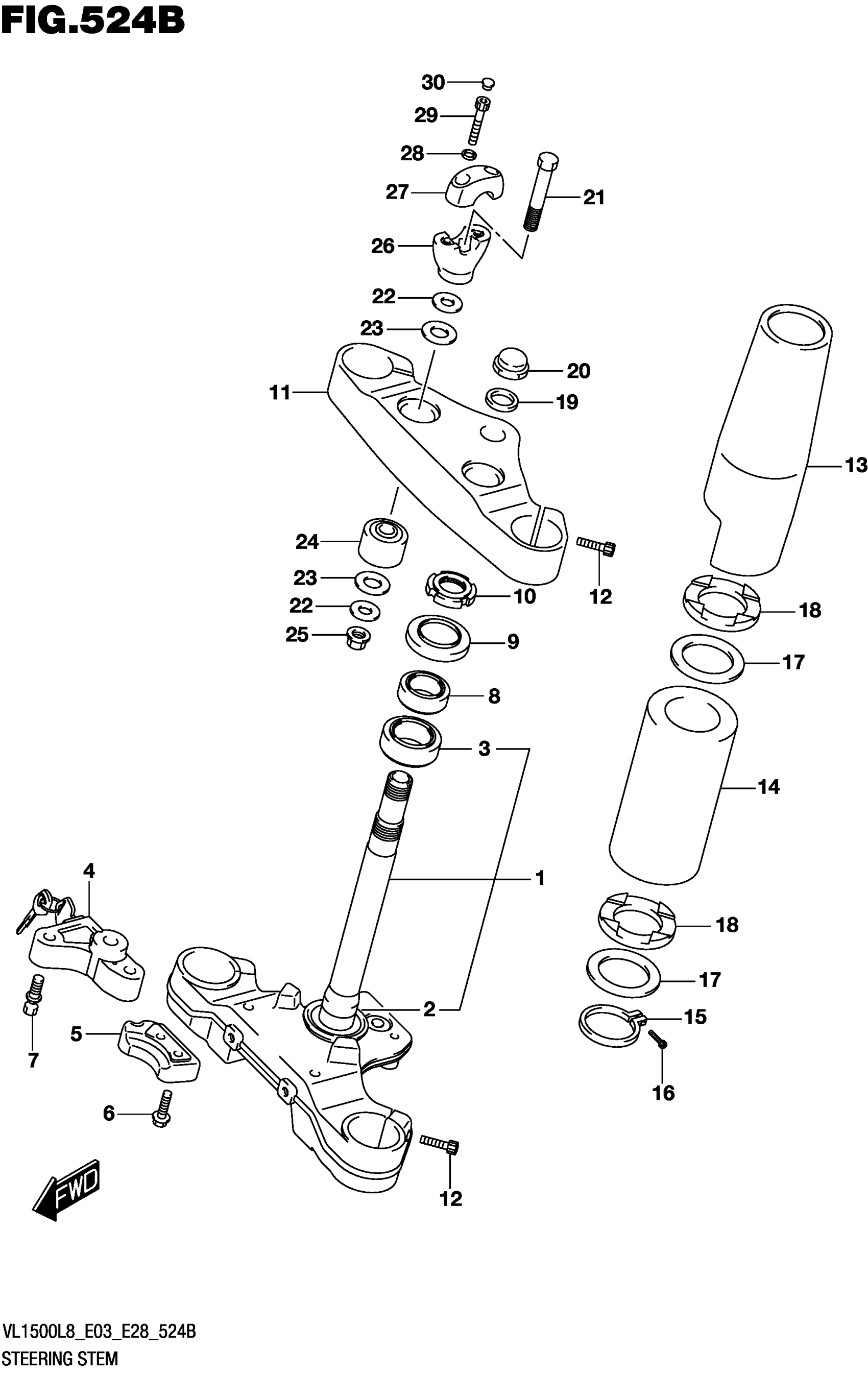

2018 Suzuki VL1500BL8 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM

51410-06J00

1
Out of stock

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

1
Out of stock

3

.BEARING (30X55X17)

09265-30020

1
Out of stock

4

LOCK SET

51900-22820

1
Out of stock

5

BRACKET

51921-40H00

1
Out of stock

6

BOLT (8X30)

09103-08197

2
Out of stock

7

SCREW,STEERING LOCK

51925-48G00

2

$9.08

In stock

8

BEARING (25X47X15)

09265-25038

1
Out of stock

9

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock

10

NUT,STEERING STEM

51631-31F00

1

$22.42

In stock

11

BRACKET

51311-06J20

1
Out of stock

12

BOLT This part replaces 51321-10F00.

07130-08307

6
Out of stock

13

COVER

51531-06J20

2
Out of stock

14

CASE

51464-06J20

2
Out of stock

15

SPACER

51465-06J00

2
Out of stock

16

BOLT

51466-10F00

2
Out of stock

17

WASHER

51467-06J00

4
Out of stock

18

SEAT

51468-06J00

4
Out of stock

19

WASHER (22.5X32X1.6)

51356-24B01

1
Out of stock

20

1

$34.62

In stock

21

BOLT

51226-10F70

2
Out of stock

22

WASHER

51354-41F20

4
Out of stock

23

SEAT,RUBBER

56245-41F20

4
Out of stock

24

DAMPER,RUBBER

56240-41F20

2
Out of stock

25

NUT

56246-41F20

2
Out of stock

26

HOLDER

56221-06J20

2
Out of stock

27

HOLDER

56211-06J20

2
Out of stock

28

WASHER

09164-08015

4
Out of stock

29

BOLT This part replaces 51321-10F00.

07130-08307

4
Out of stock

30

CAP (OD:11)

09250-06011

4
Out of stock
