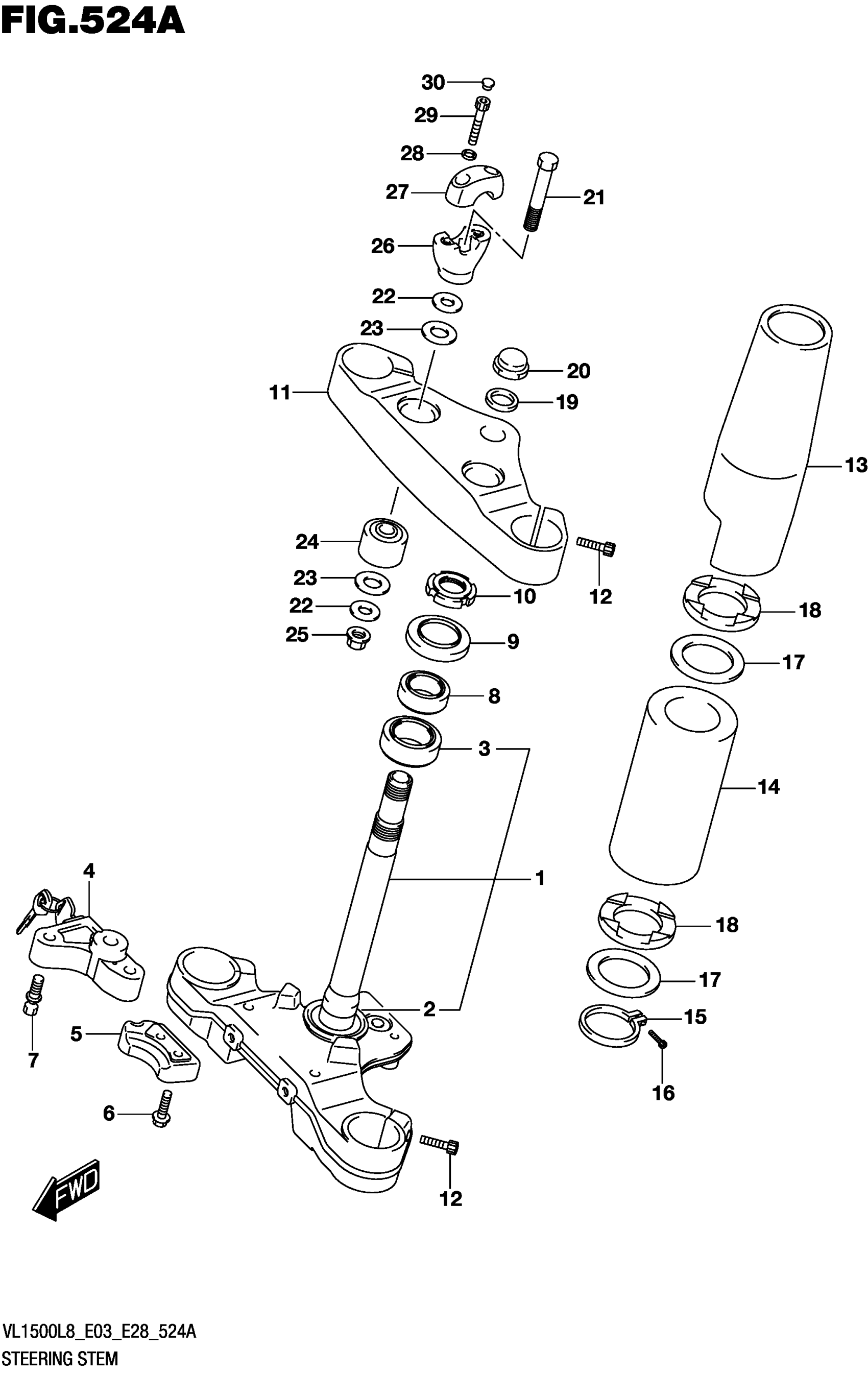

Suzuki VL1500BL8 (2018) STEERING STEM (VL1500BL8 E03) Diagram

#

Description
Price

1

STEM

51410-06J00

Unavailable

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$8.65

3

.BEARING (30X55X17)

09265-30020

$40.65

4

LOCK SET

51900-22820

Unavailable

5

BRACKET

51921-40H00

Unavailable

6

BOLT (8X30)

09103-08197

$1.85

7

SCREW,STEERING LOCK

51925-48G00

Unavailable

8

BEARING (25X47X15)

09265-25038

$41.11

9

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

10

NUT,STEERING STEM

51631-31F00

$22.42

11

BRACKET

51311-06J20

$792.25

12

BOLT This part replaces 51321-10F00.

07130-08307

$4.98

13

COVER

51531-06J20

$184.73

14

CASE

51464-06J20

Unavailable

15

SPACER

51465-06J00

$83.45

16

BOLT

51466-10F00

$8.52

17

WASHER

51467-06J00

Unavailable

18

SEAT

51468-06J00

Unavailable

19

WASHER (22.5X32X1.6)

51356-24B01

$7.13

20

NUT, STEM This part replaces 51353-38A01.

51353-24B00

$34.62

21

BOLT

51226-10F70

Unavailable

22

WASHER

51354-41F20

$9.98

23

SEAT,RUBBER

56245-41F20

$9.17

24

DAMPER,RUBBER

56240-41F20

$46.13

25

NUT

56246-41F20

$14.22

26

HOLDER

56221-06J20

Unavailable

27

HOLDER

56211-06J20

Unavailable

28

WASHER

09164-08015

$2.90

29

BOLT This part replaces 51321-10F00.

07130-08307

$4.98

30

CAP (OD:11)

09250-06011

$2.53
