2018 Suzuki VL1500BL8 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2018 Suzuki VL1500BL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

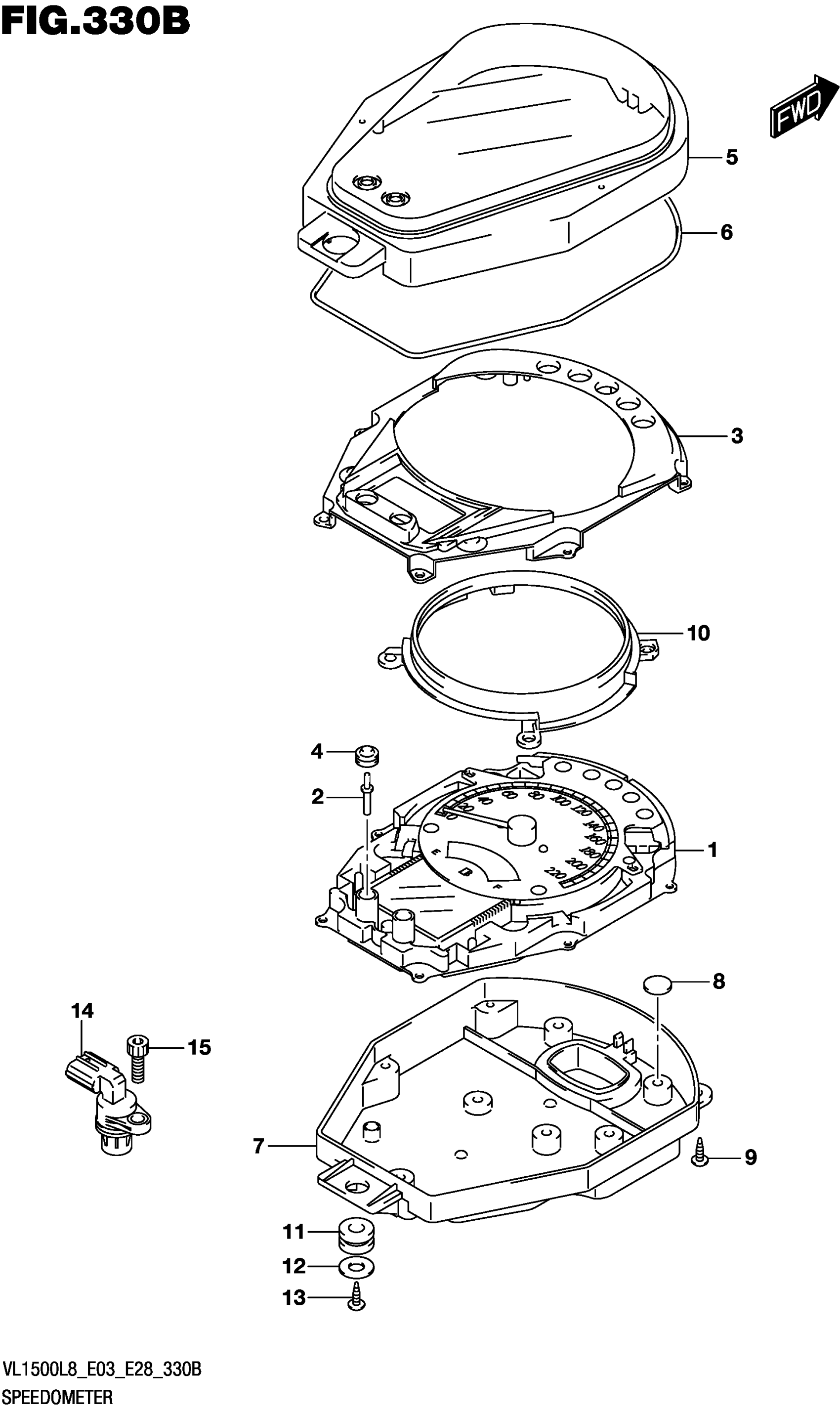

2018 Suzuki VL1500BL8 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER

34120-06J40

—
Out of stock

2

KNOB,SPEEDOMETER

34124-16G00

1
Out of stock

3

PLATE,SPEEDOMETER

34125-43H00

1
Out of stock

4

COVER,SPEEDOMETER

34126-44G00

2
Out of stock

5

CASE,UPPER

34151-43H00

1
Out of stock

6

PACKING

34153-43H00

1
Out of stock

7

COVER

34156-06J00

1
Out of stock

8

SEAL

34167-13E00

6
Out of stock

9

.SCREW (3X12)

34183-29F00

9
Out of stock

10

RING

34193-06J40

1
Out of stock

11

.CUSHION

34996-43410

1
Out of stock

12

WASHER (5.5X16X1.2)

09160-05037

1
Out of stock

13

SCREW

03541-0516A

3
Out of stock

14

SENSOR, SPEED

34990-31G01

1
Out of stock

15

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock
