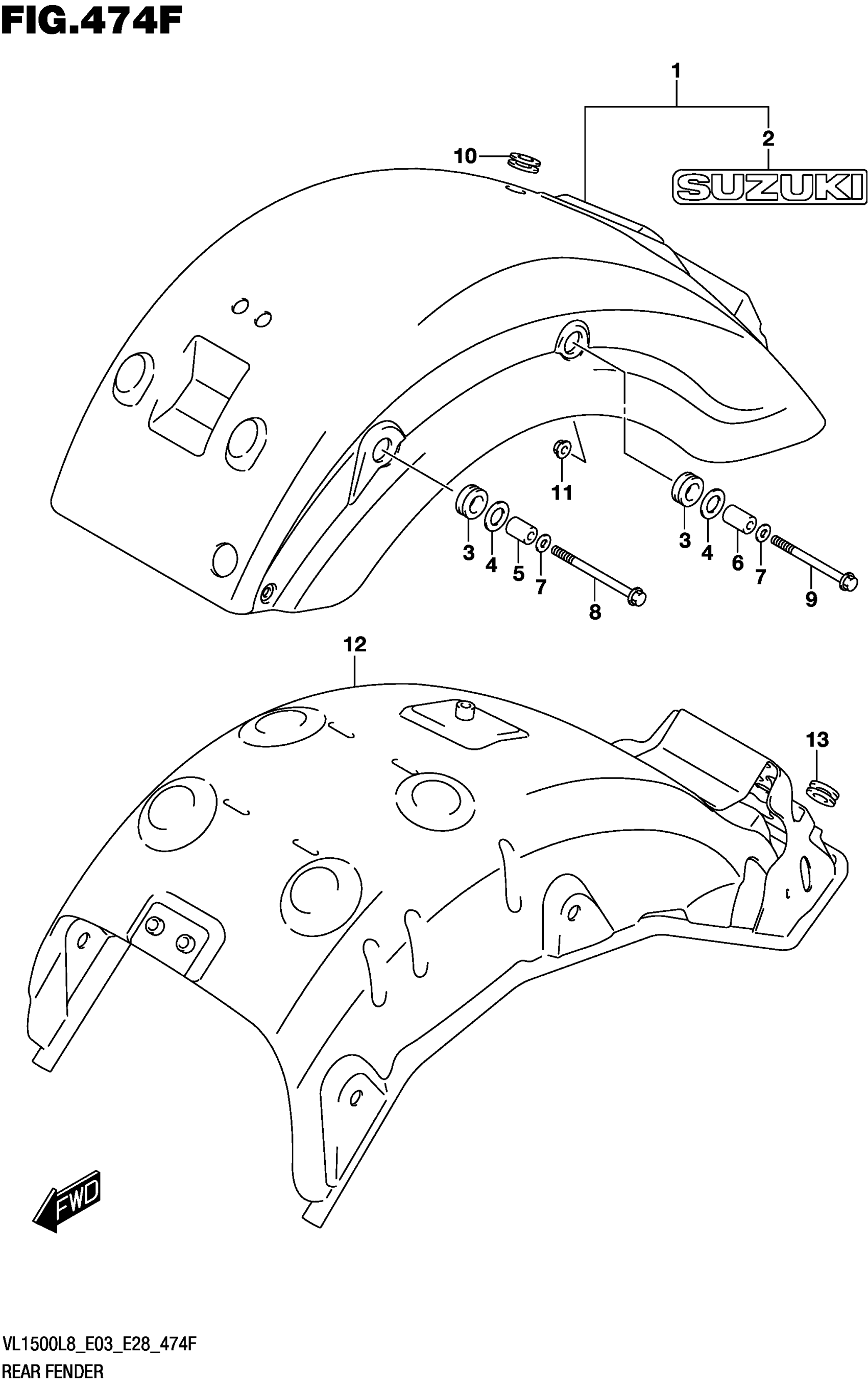

Suzuki VL1500BL8 (2018) REAR FENDER (VL1500TL8 E28) Diagram

#

Description
Price

1

FENDER,REAR This part replaces 63110-06J00-YVB.

63110-06J01-YVB

$1,330.38

2

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

3

CUSHION (16X26X8)

47191-24F00

$5.17

4

WASHER (15.5X26X2.3)

09160-15002

$1.91

5

SPACER

95428-06J00

$7.70

6

SPACER

95429-06J00

$7.70

7

SPACER (8.2X12X6)

09180-08047

$2.35

8

BOLT | FRONT

01550-0895A

$4.60

9

.BOLT | REAR

01550-0885A

$4.17

10

CUSHION

09320-15008

$3.89

11

NUT

08316-1008A

$2.45

12

REINFORCE

63130-06J01

$311.72

13

GROMMET (10X35X9.5)

09308-10017

$5.20
