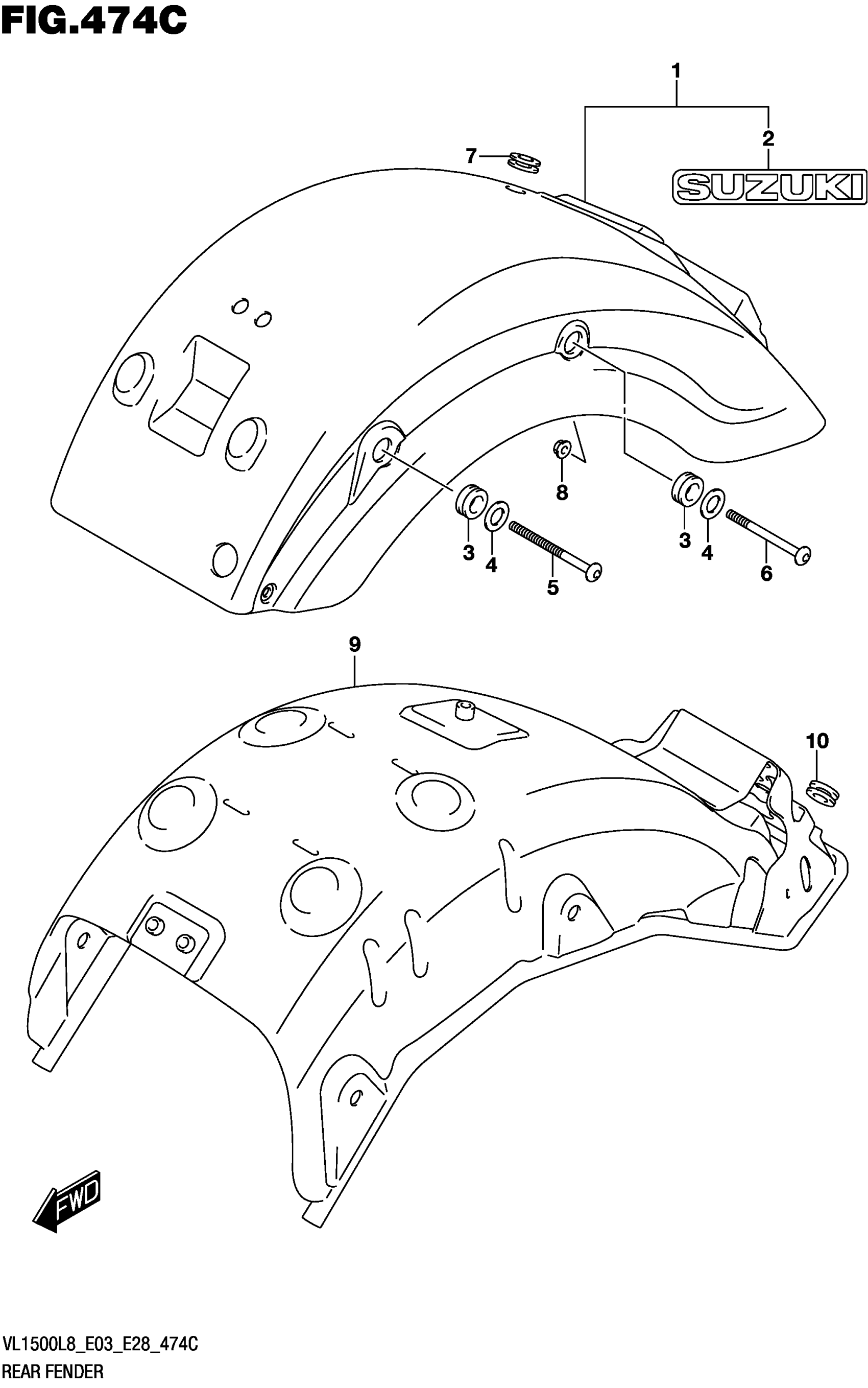

Suzuki VL1500BL8 (2018) REAR FENDER (VL1500BL8 E33) Diagram

#

Description
Price

1

FENDER

63110-06J00-019

$1,324.43

2

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

3

CUSHION (16X26X8)

47191-24F00

$5.17

4

WASHER (15.5X26X2.3)

09160-15002

$1.91

5

BOLT | FRONT

63161-06J10

$6.27

6

BOLT,REAR FENDER | REAR

63161-41F00

$9.40

7

CUSHION

09320-15008

$3.89

8

NUT

08316-1008A

$2.45

9

REINFORCE

63130-06J01

$311.72

10

GROMMET (10X35X9.5)

09308-10017

$5.20
