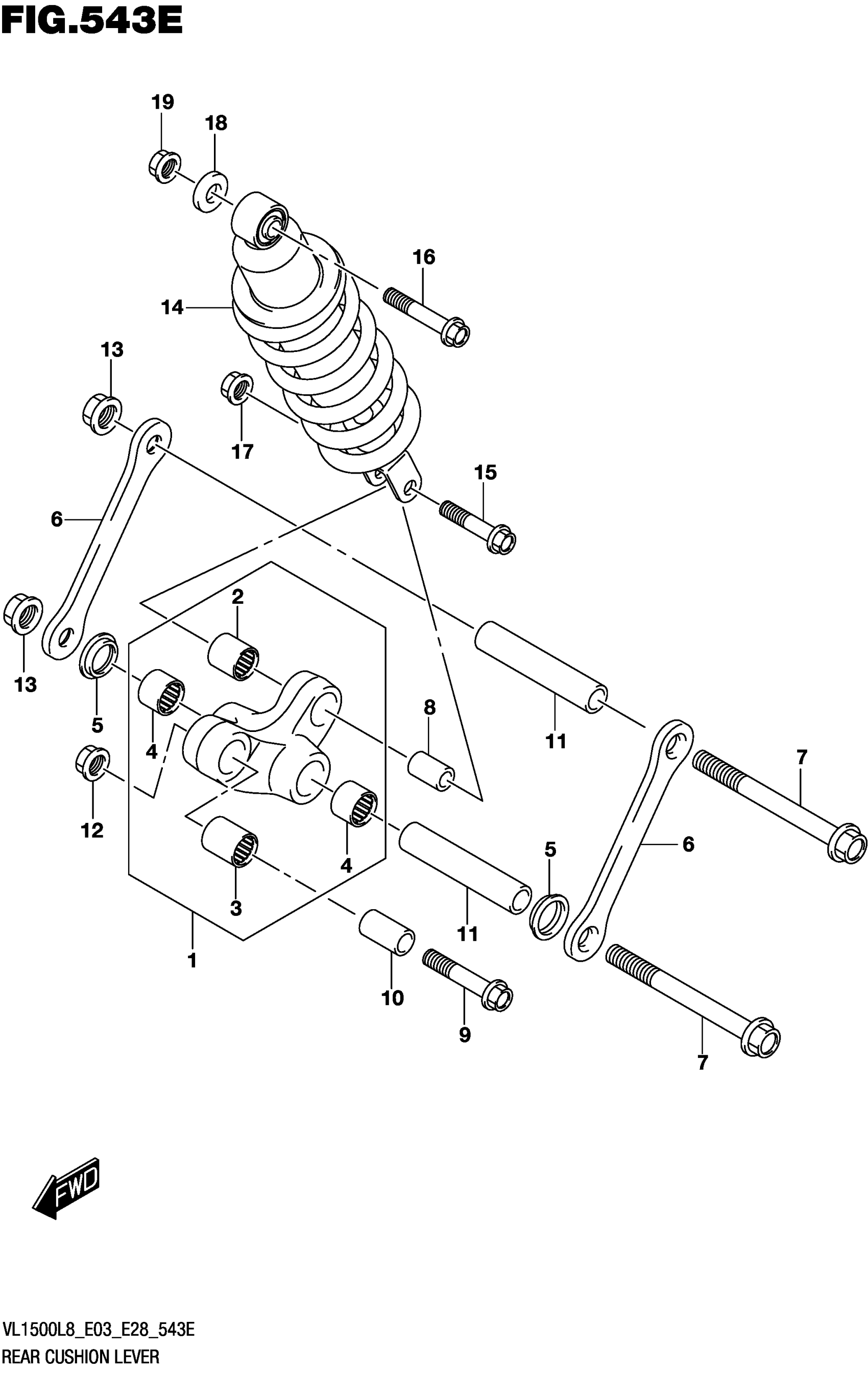

Suzuki VL1500BL8 (2018) REAR CUSHION LEVER (VL1500TL8 E03) Diagram

#

Description
Price

1

LEVER

62600-06880

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$28.70

3

.BEARING This part replaces 09263-20074.

09263-20116

$28.11

4

.BEARING (22X28X20)

09263-22062

$33.78

5

SEAL

62624-37E00

$8.46

6

ROD

62641-06J00

Unavailable

7

BOLT

62658-44G10

Unavailable

8

SPACER

62684-01D00

$21.87

9

BOLT (14X66)

09103-14016

Unavailable

10

SPACER (14X20X34)

09180-14014

$19.02

11

SPACER (16X22X105)

09180-16049

Unavailable

12

NUT

08319-3114A

$8.84

13

NUT

08319-3116A

$13.49

14

ABSORBER ASSY,R This part replaces 62100-06JD0-019.

62100-06JD1-019

$639.45

14

ABSORBER ASSY,R This part replaces 62100-06JD0-019.

62100-06JD1-019

$639.45

15

BOLT (12X62)

62668-42A02

$12.03

16

BOLT

62658-27C10

$13.20

17

NUT | LOWER

08319-3112A

$3.38

18

SPACER (12.1X25X14.5)

09180-12157

Unavailable

19

NUT | UPPER

09159-12056

$6.65
