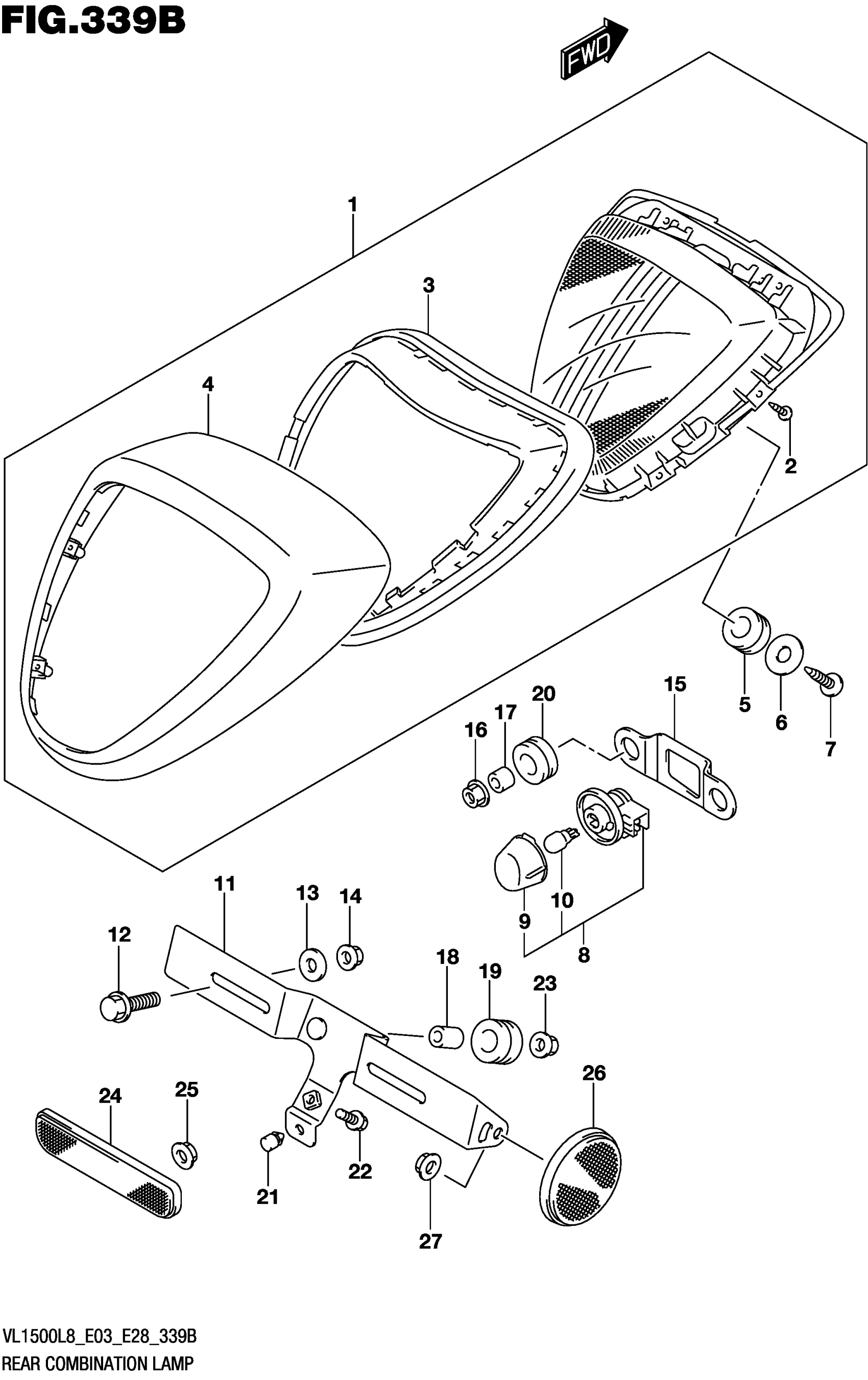

Suzuki VL1500BL8 (2018) REAR COMBINATION LAMP (VL1500BL8 E28) Diagram

#

Description
Price

1

LAMP ASSY

35710-06JB0

$898.10

2

.SCREW (3X12)

35623-41400

Unavailable

3

.RUBBER

35713-06J00

Unavailable

4

.COVER

35717-06JB0

$330.76

5

CUSHION

09320-10067

$3.63

6

WASHER (5.5X20X1.2)

09160-05501

$1.84

7

SCREW

03541-0512A

$1.49

8

LAMP ASSY,LICENSE

35910-14F01

$30.22

9

.LENS

35912-14F11

$8.28

10

.BULB (12V5W)

09471-12216

$5.36

11

BRACKET

35927-06J30

$37.72

12

BOLT (6X16)

09116-06168

$2.50

13

WASHER (6.5X20X1.2)

09160-06077

$1.91

14

NUT (6X12)

08316-1006A

$2.19

15

BRACKET,LICENSE LAMP

35928-43H00

$11.47

16

NUT

09159-05049

$2.30

17

SPACER (5.5X9.5X10.5)

09180-05066

Unavailable

18

SPACER (6.5X10X12)

09180-06290

$2.35

19

CUSHION

09320-10051

$2.99

20

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

21

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

22

BOLT (6X25)

01550-0625A

$1.97

23

NUT (6X12)

08316-1006A

$2.19

24

REFLECTOR ASSY,REAR

35970-05H00

$29.33

25

NUT

08316-1005A

$2.19

26

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

27

NUT

08316-1005A

$2.19
