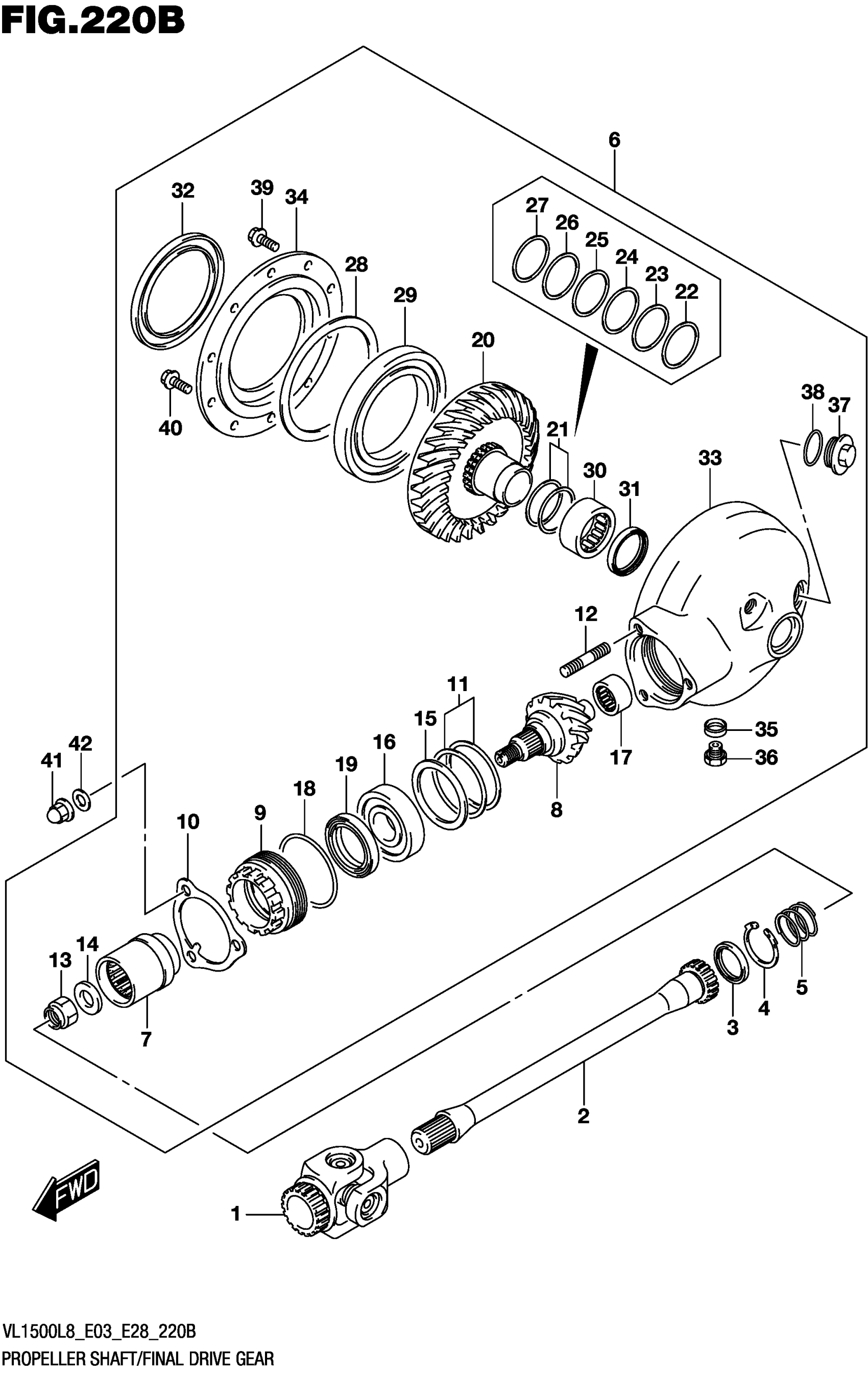

Suzuki VL1500BL8 (2018) PROPELLER SHAFT/FINAL DRIVE GEAR (VL1500BL8 E28) Diagram

#

Description
Price

1

YOKE,UNIVERSAL JOINT

27100-48G20

$351.00

2

SHAFT

27151-40H00

Unavailable

3

OIL SEAL (30X40.5X5.5)

09283-30026

$10.40

4

CIRCLIP

09381-40003

$4.64

5

SPRING

09440-30008

$3.72

6

GEAR & CASE SET

27300-48860-291

Unavailable

6

GEAR & CASE SET

27300-48860-291

Unavailable

7

.COUPLING,FINAL DRIVE GEAR

27172-24A00

$59.80

8

.GEAR

27311-24A10

Unavailable

8

.GEAR

27311-24A10

Unavailable

9

.STOPPER,FINAL DRIVE BEARING

27312-24A02

$74.08

10-1

.PLATE,BEARING STOPPER

27313-38B00

$7.37

10-2

.PLATE,BEARING STOPPER

27313-38B10

$7.37

11

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

12

.BOLT,STUD

09108-10106

$4.68

13

NUT

09159-16003

$4.00

14

WASHER (16X29X4.0)

09160-16029

$6.35

15

WASHER (54X68X1.5)

09160-54001

Unavailable

16

.BEARING (28X68X18)

09262-28023

$127.87

17

BEARING (20X34X18)

09263-20062

$46.98

18

O-RING (D:3.1,ID:63.9)

09280-64003

$5.64

19

OIL SEAL (45.5X58X7)

09283-47002

$17.18

20

GEAR,FINAL DRIVEN BEVEL (NT:3

27320-48G00

Unavailable

20

GEAR,FINAL DRIVEN BEVEL (NT:3

27320-48G00

Unavailable

21

SHIM SET,FINAL DRIVEN GEAR RH

27326-48811

$103.03

22

.SHIM (40X46.8X0.95)

09181-40011

$3.27

23

.SHIM (40X46.8X1.05)

09181-40013

$3.97

24

.SHIM (40X46.8X1.1)

09181-40014

Unavailable

25

.SHIM (40X50X1.2)

09181-40176

Unavailable

26

.SHIM (40X50X1.4)

09181-40182

Unavailable

27

.SHIM (40X50X1.5)

09181-40212

Unavailable

28

SHIM SET,FINAL DRIVEN GR | T:0.35/0.40/0.50/0.60

27327-38810

$108.97

29

BEARING (85X130X14) | RH

09262-85001

$202.27

30

BEARING (40X50X20) | LH

09263-40016

$68.97

31

OIL SEAL (38X46X6) | LH

09283-38026

$16.33

32

OIL SEAL (85X110X11) | RH

09289-85001

$41.81

33

.CASE

27450-48G70-291

Unavailable

34

CASE,FINAL GEAR BEARING

27461-38B00

$239.92

35

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

36

PLUG (MAGNETO) | OIL DRAIN

09247-14002

$5.24

37

PLUG (30X9)

09259-30007

$18.39

38

.O-RING (D:3.1,ID:26.4)

09280-26006

$2.76

39

BOLT

01550-0825A

$2.32

40

BOLT (10X20)

01550-1025A

$3.05

41

.NUT

09159-10026

$6.20

42

.WASHER (113X122X2.3)

09164-10008

$1.71
