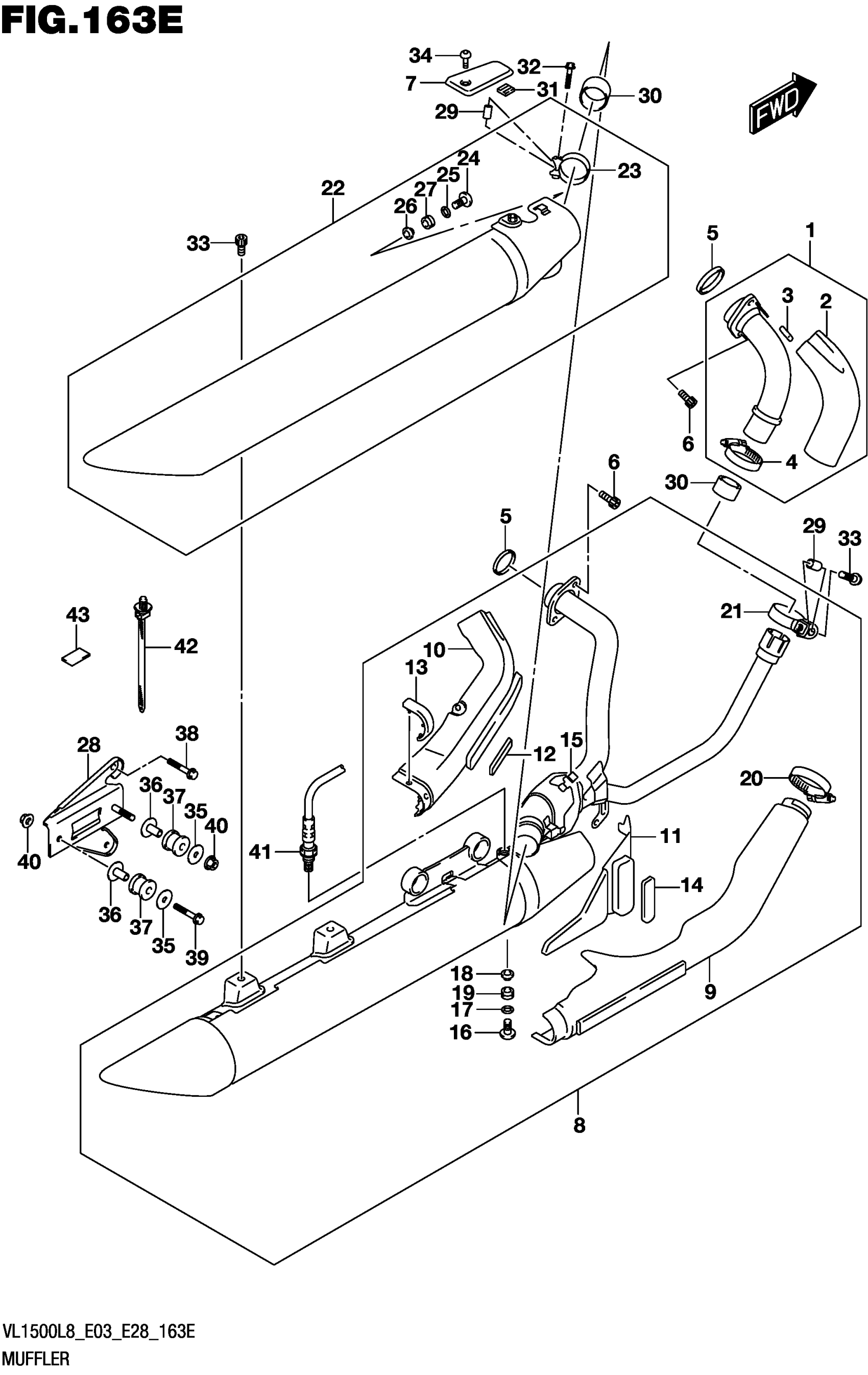

Suzuki VL1500BL8 (2018) MUFFLER (VL1500TL8 E03) Diagram

#

Description
Price

1

PIPE

14150-40H20

Unavailable

2

.COVER

14159-40H00

$103.40

3

GROMMET

14795-10FA0

$5.58

4

.CLAMP

09402-45503

Unavailable

5

.GASKET,EXH PIPE

14181-31D00

$10.28

6

BOLT (8X30)

09106-08175

$4.10

7

COVER

14260-06J00

Unavailable

8

MUFFLER

14305-06J00

Unavailable

9

.COVER

14170-06J00

Unavailable

10

.COVER

14180-06J00

Unavailable

11

.COVER

14250-06J00

$195.85

12

.PROTECTOR

14780-48G01

$37.48

13

.CUSHION

14782-06J00

Unavailable

14

.PROTECTOR

14790-48G10

$31.43

15

GROMMET

14795-10FA0

$5.58

16

SCREW (6X20)

09139-06028

$3.70

17

.WASHER (6.5X20X1.0)

09160-06141

Unavailable

18

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

19

CUSHION

09320-08070

$11.57

20

.CLAMP

09402-45503

Unavailable

21

.CLAMP

14459-40H00

$29.97

22

BODY

14340-06J00

$1,641.65

23

.CLAMP

14459-40H00

$29.97

24

SCREW (6X20)

09139-06028

$3.70

25

.WASHER (6.5X20X1.0)

09160-06141

Unavailable

26

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

27

CUSHION

09320-08070

$11.57

28

BRACKET

14410-40H00

Unavailable

29

SPACER

14458-45G10

$8.18

30

CONNECTOR

14771-40H00

$36.55

31

GROMMET

14795-10FA0

$5.58

32

BOLT (8X35)

09103-08365

$3.91

33

BOLT (8X20)

09106-08107

$2.81

34

SCREW (6X10)

09139-06172

$3.04

35

WASHER (8.5X33X1.5)

09160-08146

$2.60

36

SPACER (8.6X12X25.5)

09180-08156

$6.70

37

CUSHION

09320-12049

$10.68

38

BOLT (8X16)

01550-0816A

$2.32

39

BOLT

01550-0845A

$3.14

40

NUT

08361-2508A

$1.97

41

SENSOR

18213-48G00

Unavailable

42

CLAMP (L:170)

09407-17403

$4.91

43

CUSHION

44558-45G00

Unavailable
