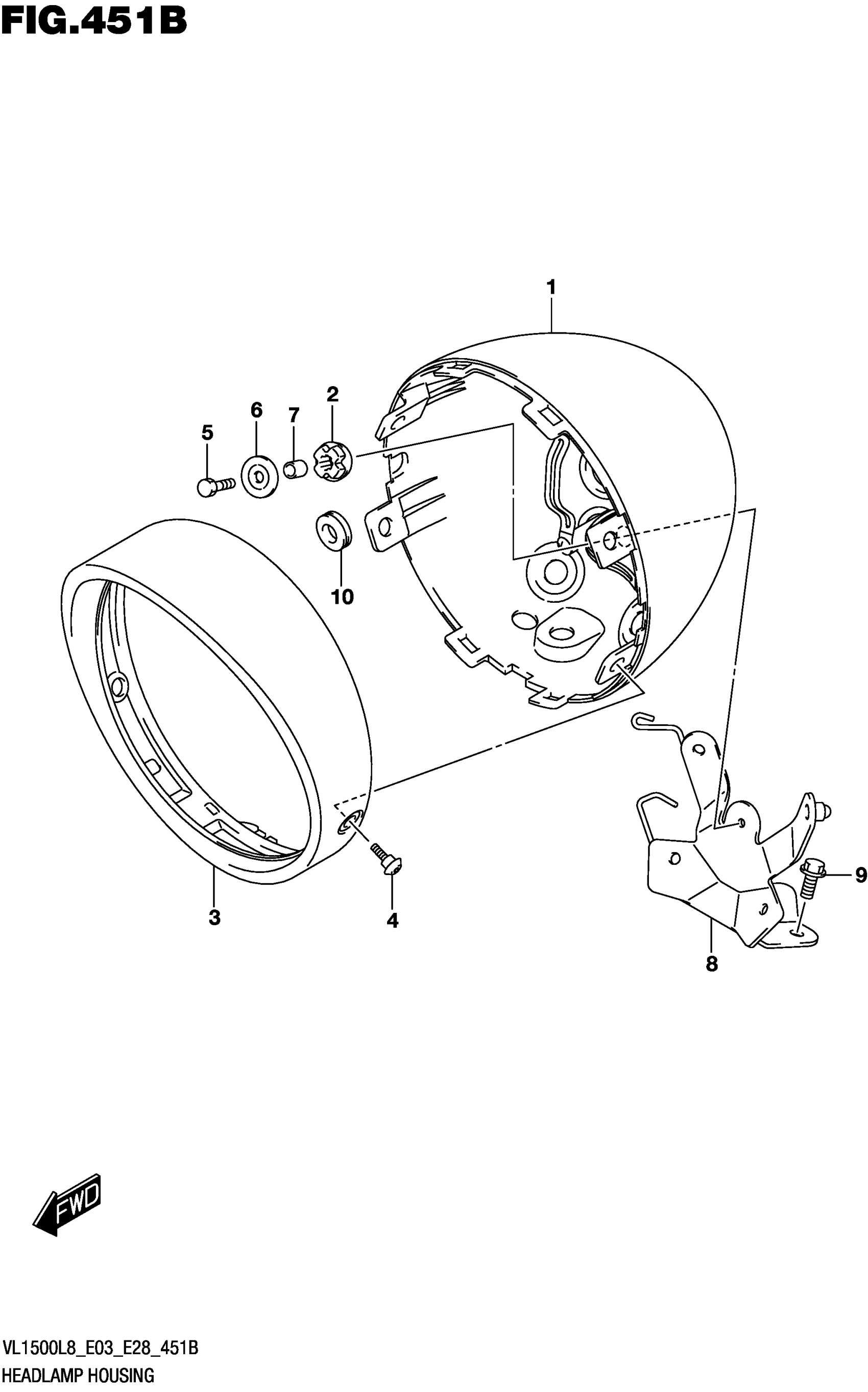

Suzuki VL1500BL8 (2018) HEADLAMP HOUSING (VL1500BL8 E28) Diagram

#

Description
Price

1

HOUSING

51811-06J10-019

$163.75

2

CUSHION

09320-09010

$2.84

3

COVER,HEADLAMP HSG

51821-06J00

$94.38

4

SCREW (5X16)

09139-05077

$3.25

5

BOLT

01500-0625B

$2.38

6

WASHER (6.5X20X1.2)

09160-06152

$2.28

7

SPACER (6.5X9X10)

09180-06307

$3.05

8

BRACKET

51850-06J00

$67.33

9

BOLT

01550-0820B

$2.83

10

CUSHION (8X26X7)

09320-08028

$3.04
