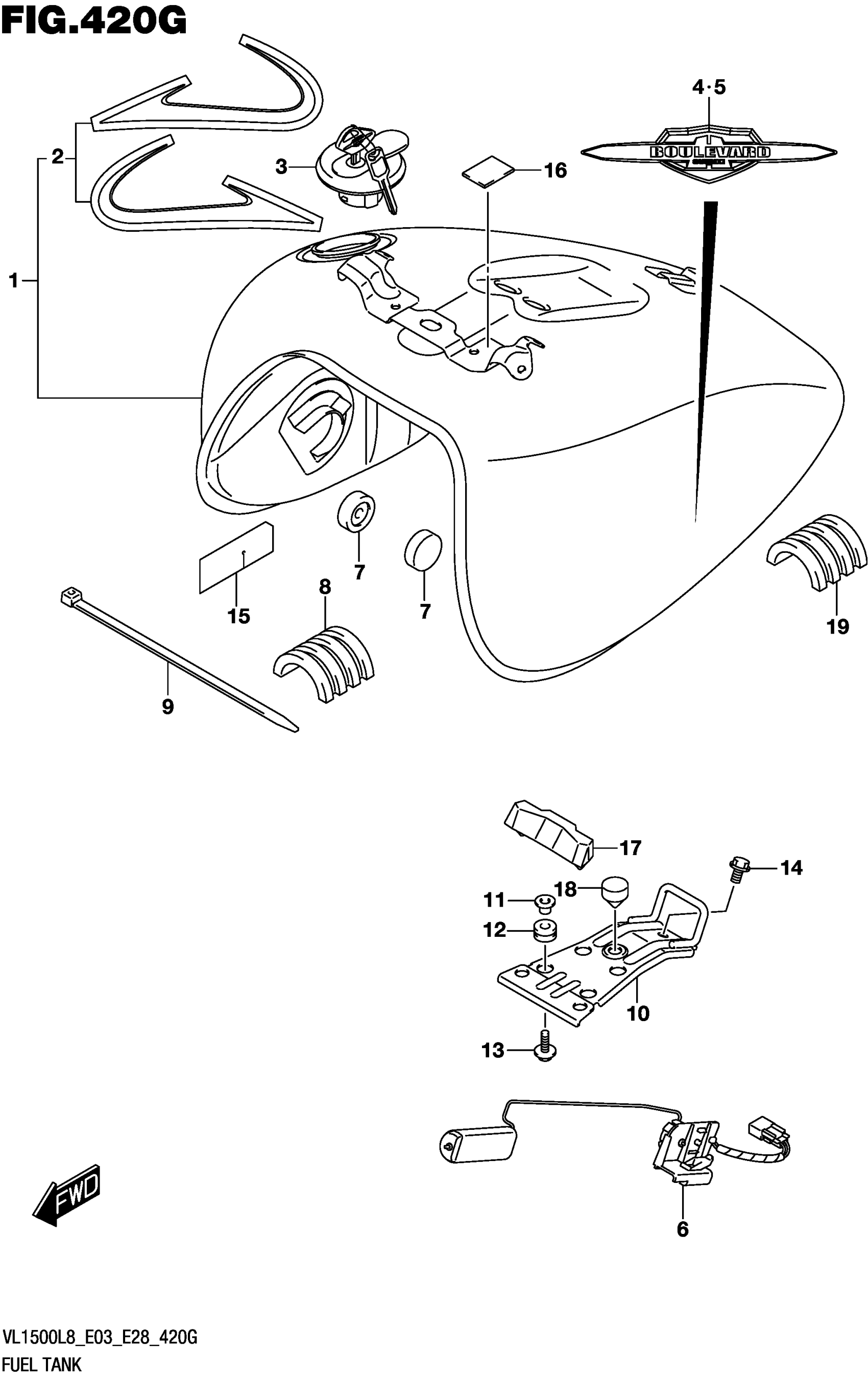

Suzuki VL1500BL8 (2018) FUEL TANK (VL1500TL8 E33) Diagram

#

Description
Price

1

TANK ASSY

44100-06J70-ACX

$1,065.07

2

.TAPE SET FUEL TANK

68110-06JA0-BQD

$178.92

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$94.83

4

EMBLEM

68111-06J00

$68.18

5

EMBLEM

68121-06J00

$68.18

6

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$83.05

7

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION

44541-04F00

Unavailable

9

CLAMP (L:300)

09407-30402

$4.11

10

BRACKET

44530-06J00

$37.73

11

WASHER (6.3X17X1.6)

09169-06062

$2.50

12

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

13

BOLT (6X20)

09116-06192

$2.30

14

BOLT (8X12)

01550-0812A

$2.32

15

PROTECTOR, FUEL TANK

44283-06J00

$6.10

16

CUSHION, RESERVOIR TANK | CUT AS REQUIRED

63191-25C00

$3.05

17

CUSHION

44545-06J00

Unavailable

18

.CUSHION

09321-10011

$2.91

19

CUSHION

44541-06J00

Unavailable
