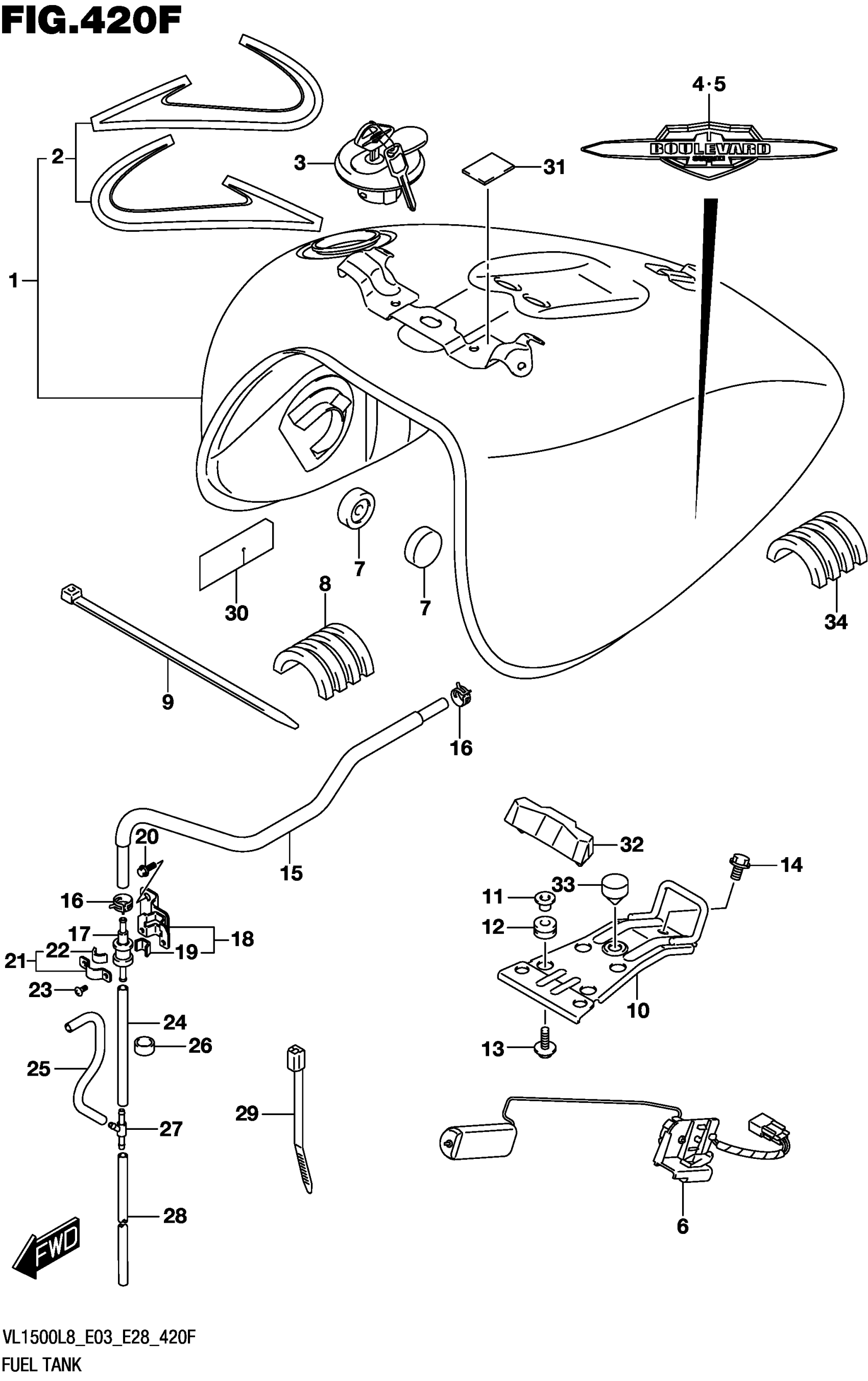

Suzuki VL1500BL8 (2018) FUEL TANK (VL1500TL8 E28) Diagram

#

Description
Price

1

TANK ASSY

44100-06J70-ACX

$1,065.07

2

.TAPE SET FUEL TANK

68110-06JA0-BQD

$178.92

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$94.83

4

EMBLEM

68111-06J00

$68.18

5

EMBLEM

68121-06J00

$68.18

6

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$83.05

7

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION

44541-04F00

Unavailable

9

CLAMP (L:300)

09407-30402

$4.11

10

BRACKET

44530-06J00

$37.73

11

WASHER (6.3X17X1.6)

09169-06062

$2.50

12

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

13

BOLT (6X20)

09116-06192

$2.30

14

BOLT (8X12)

01550-0812A

$2.32

15

HOSE

44434-40H00

Unavailable

16

CLIP (ID:11,H:8)

09401-11413

$2.26

17

VALVE,FUEL TANK BREATHER

44240-38A00

$61.15

18

BRACKET

44880-40H00

Unavailable

19

CUSHION (10X30X2)

44894-24A00

$1.72

20

BOLT

01547-0610A

$2.45

21

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

22

CUSHION (10X30X2)

44894-24A00

$1.72

23

SCREW

02142-0408A

$1.55

24

.HOSE | L:600->100 This part replaces 09352-50903-600.

09352-50006-600

$7.48

25

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

26

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

27

3 WAY

09367-06007

$3.46

28

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

29

CLAMP (L:190)

09407-19401

$3.05

30

PROTECTOR, FUEL TANK

44283-06J00

$6.10

31

CUSHION, RESERVOIR TANK | CUT AS REQUIRED

63191-25C00

$3.05

32

CUSHION

44545-06J00

Unavailable

33

.CUSHION

09321-10011

$2.91

34

CUSHION

44541-06J00

Unavailable
