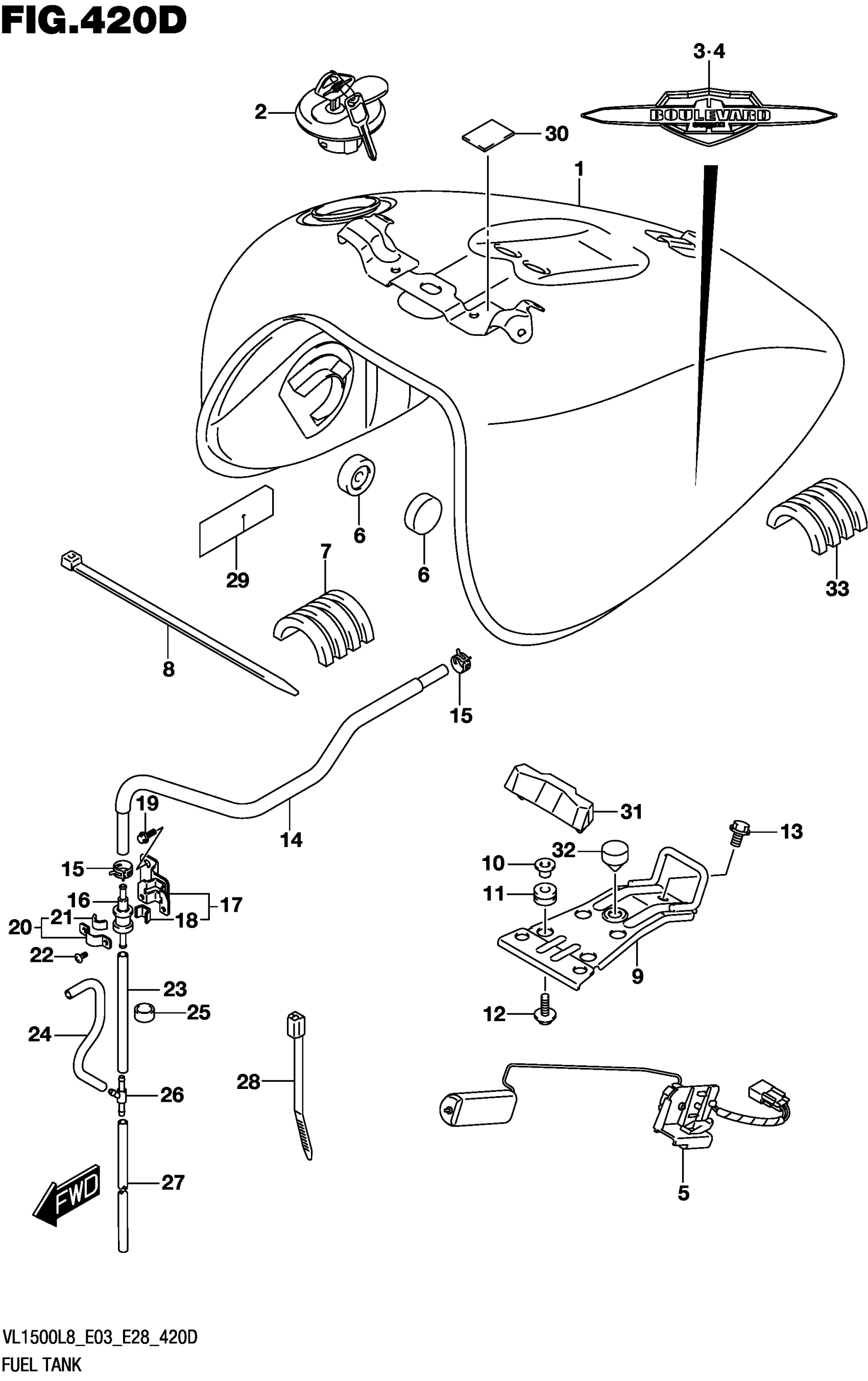

Suzuki VL1500BL8 (2018) FUEL TANK (VL1500BTL8 E28) Diagram

#

Description
Price

1

TANK ASSY

44100-06J01-YVB

$1,079.38

2

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$94.83

3

EMBLEM

68111-06J00

$68.18

4

EMBLEM

68121-06J00

$68.18

5

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$83.05

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION

44541-04F00

Unavailable

8

CLAMP (L:300)

09407-30402

$4.11

9

BRACKET

44530-06J00

$37.73

10

WASHER (6.3X17X1.6)

09169-06062

$2.50

11

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

12

BOLT (6X20)

09116-06192

$2.30

13

BOLT (8X12)

01550-0812A

$2.32

14

HOSE

44434-40H00

Unavailable

15

CLIP (ID:11,H:8)

09401-11413

$2.26

16

VALVE,FUEL TANK BREATHER

44240-38A00

$61.15

17

BRACKET

44880-40H00

Unavailable

18

CUSHION (10X30X2)

44894-24A00

$1.72

19

BOLT

01547-0610A

$2.45

20

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

21

CUSHION (10X30X2)

44894-24A00

$1.72

22

SCREW

02142-0408A

$1.55

23

.HOSE | L:600->100 This part replaces 09352-50903-600.

09352-50006-600

$7.48

24

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

25

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

26

3 WAY

09367-06007

$3.46

27

HOSE,5X10X600 | L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

28

CLAMP (L:190)

09407-19401

$3.05

29

PROTECTOR, FUEL TANK

44283-06J00

$6.10

30

CUSHION, RESERVOIR TANK | CUT AS REQUIRED

63191-25C00

$3.05

31

CUSHION

44545-06J00

Unavailable

32

.CUSHION

09321-10011

$2.91

33

CUSHION

44541-06J00

Unavailable
