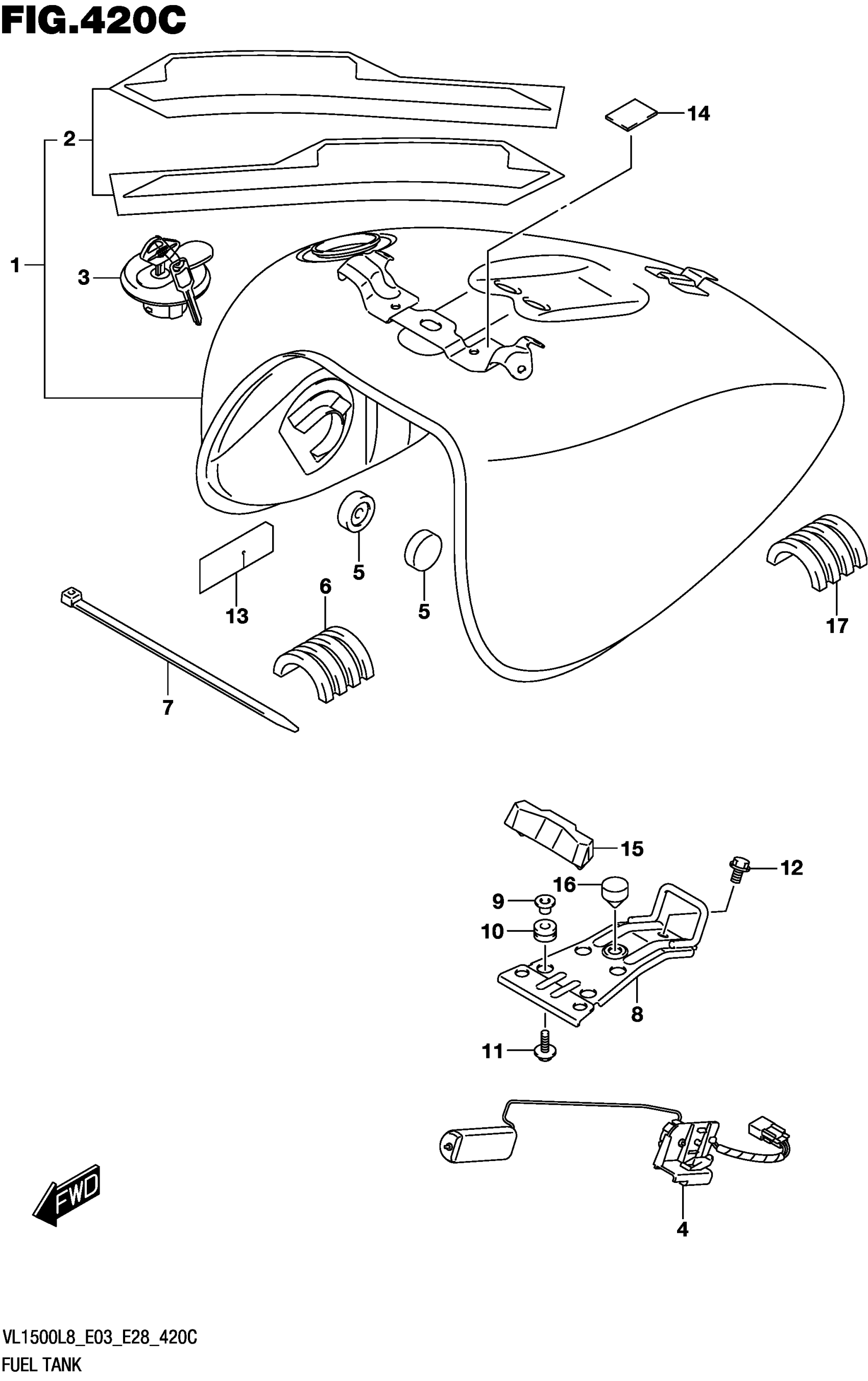

Suzuki VL1500BL8 (2018) FUEL TANK (VL1500BL8 E33) Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-06J60-YUD.

44100-06J80-YUD

Unavailable

2

.TAPE SET FUEL TANK (BLACK)

68110-06J20-019

$59.65

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$124.15

4

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$109.73

5

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

6

CUSHION

44541-04F00

Unavailable

7

CLAMP (L:300)

09407-30402

$3.76

8

BRACKET

44530-06J00

$42.58

9

WASHER (6.3X17X1.6)

09169-06062

$2.50

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

11

BOLT (6X20)

09116-06192

$2.44

12

BOLT (8X12)

01550-0812A

$2.31

13

PROTECTOR, FUEL TANK

44283-06J00

$6.90

14

CUSHION, RESERVOIR TANK | CUT AS REQUIRED

63191-25C00

$2.88

15

CUSHION

44545-06J00

Unavailable

16

.CUSHION

09321-10011

$2.80

17

CUSHION

44541-06J00

Unavailable
