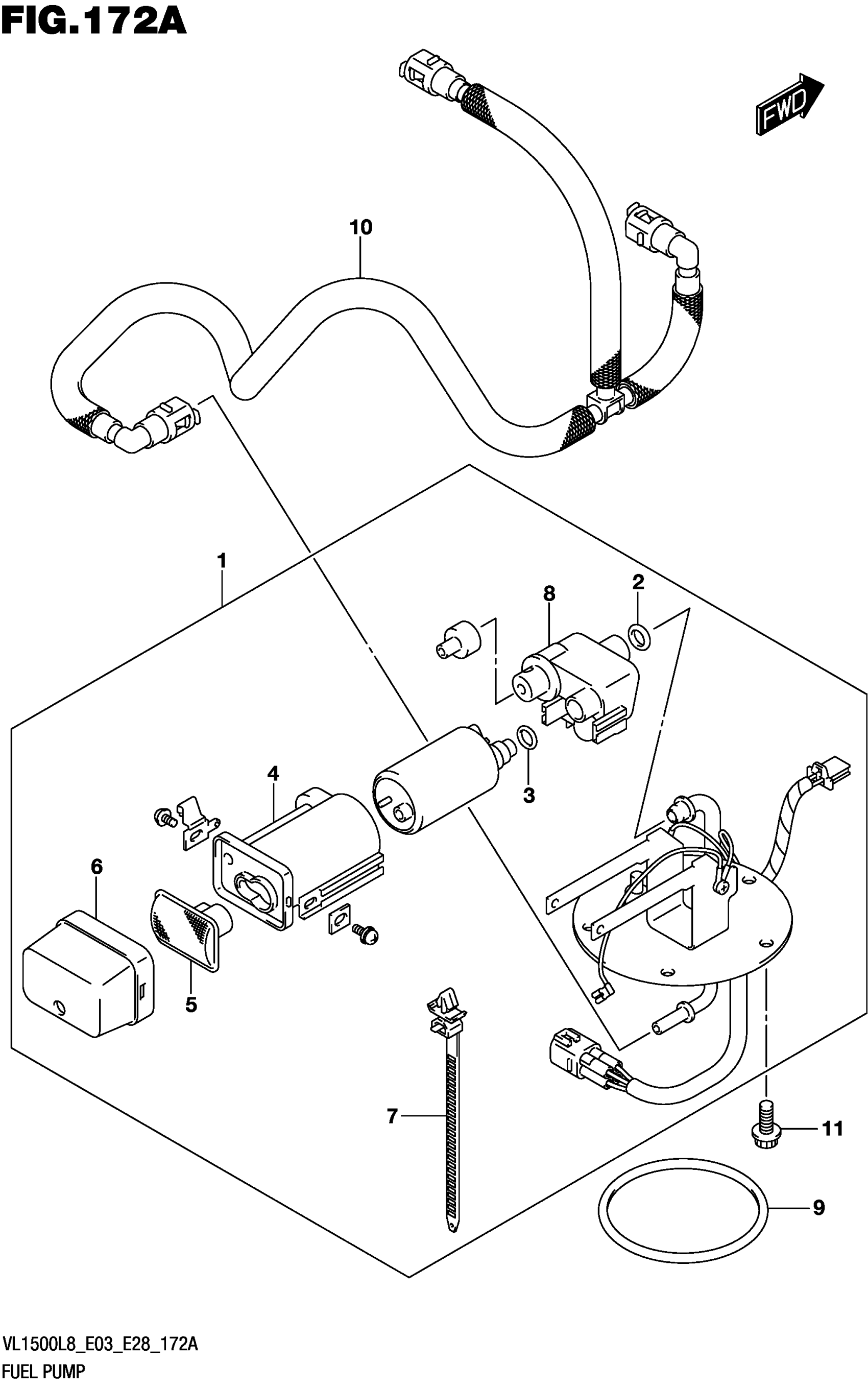

Suzuki VL1500BL8 (2018) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY

15100-06J11

$488.35

2

.O-RING

15113-35F00

$8.91

3

.O-RING

15113-05H00

$19.98

4

.JOINT

15118-06J00

Unavailable

5

.STRAINER

15420-05H00

$41.17

6

.VESSEL

15425-06J10

Unavailable

7

.BINDER

15116-06J00

Unavailable

8

.REGULATOR

15610-06J00

$209.17

9

O-RING

15201-35F00

$27.60

10

HOSE

15810-06J01

$178.52

11

BOLT

07120-0612A

$2.50
