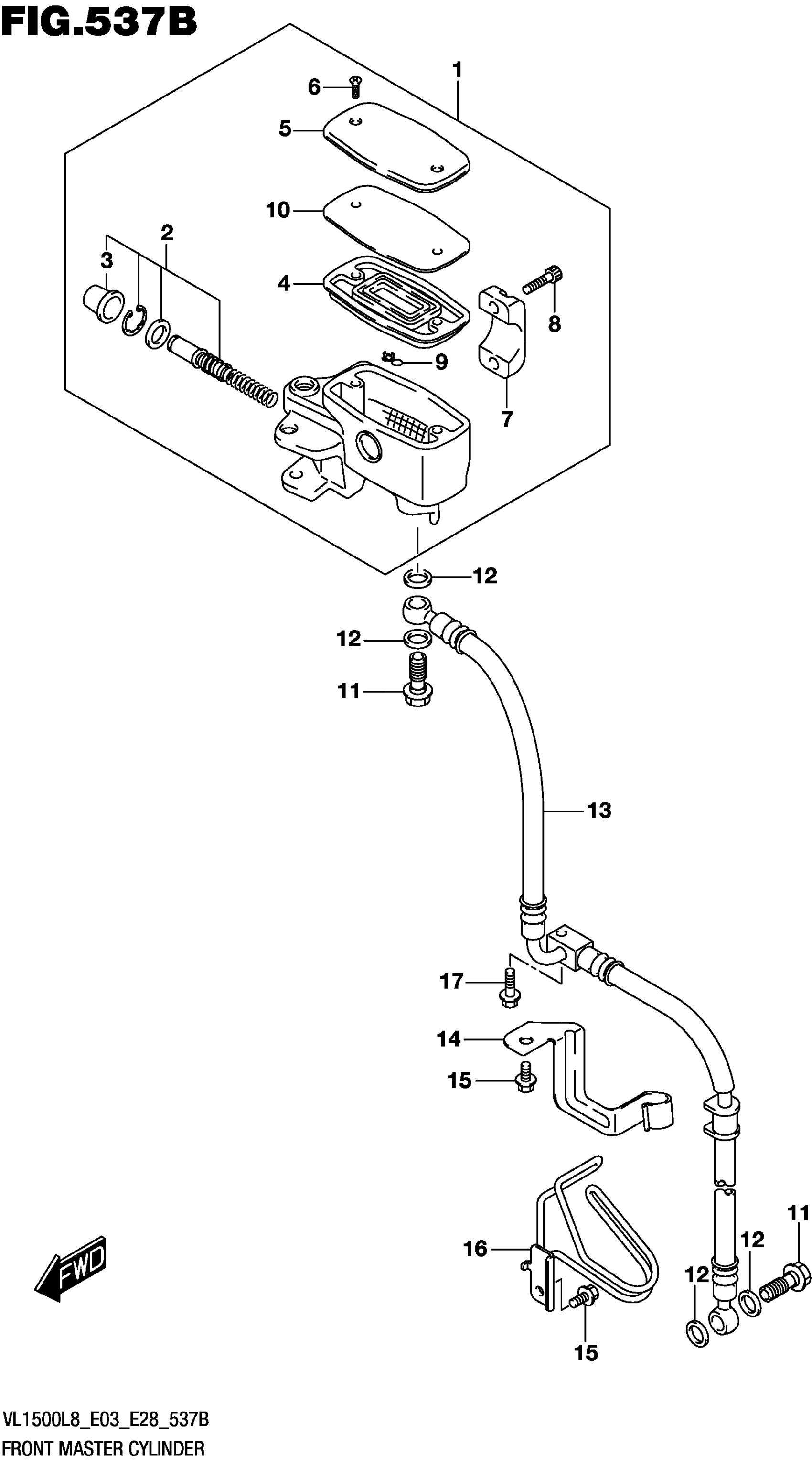

Suzuki VL1500BL8 (2018) FRONT MASTER CYLINDER (VL1500BL8 E28) Diagram

Description

Price

CYLINDER ASSY

59600-10FL0

$364.48

.PISTON & CUP SET

59600-03820

$55.78

..BOOT

59666-44300

$5.30

.DIAPHRAGM

59667-10F00

$11.40

.CAP

59669-10F60

$48.98

.SCREW

69689-49300

$1.81

.HOLDER

59671-10F20

Unavailable

.BOLT

07130-06207

$2.80

.PROTECTOR

59664-32F00

$13.20

.PLATE,DIAPHRAGM

57437-10F00

$23.73

UNION (10X1.25X22)

09360-10062

$5.81

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE This part replaces 59480-06J10.

59480-06J11

$126.92

CLAMP

59271-06J00

Unavailable

BOLT

01547-0612A

$2.01

GUIDE

59540-06J00

Unavailable

BOLT

01547-0625A

$2.01
