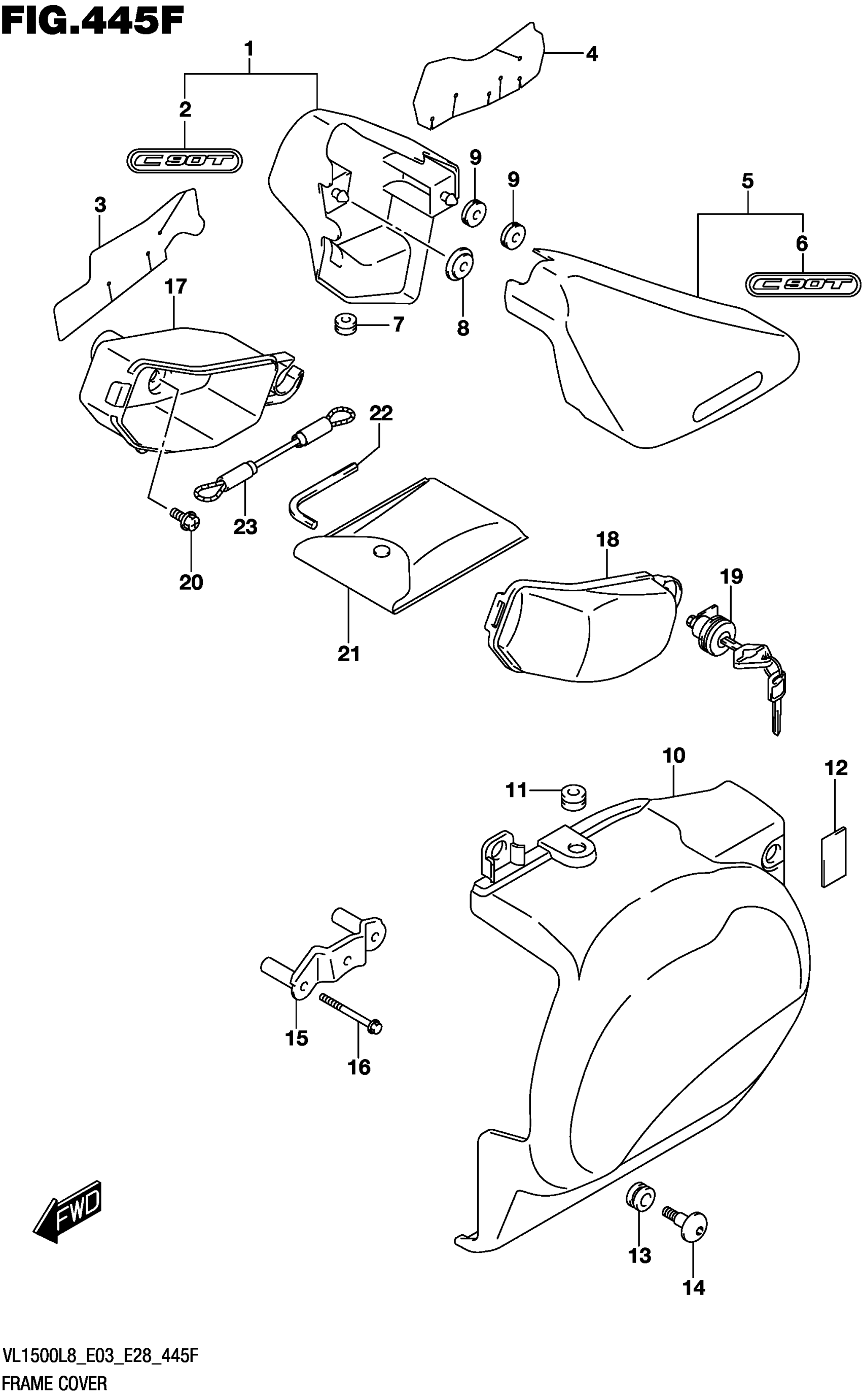

Suzuki VL1500BL8 (2018) FRAME COVER (VL1500TL8 E28) Diagram

#

Description
Price

1

COVER

47110-06JA0-YVB

$100.27

2

.EMBLEM

68131-06JA0-YES

$18.60

3

SHIELD

47166-06J10

Unavailable

4

SHIELD

47166-06J20

$5.65

5

COVER

47210-06JA0-YVB

$105.32

6

.EMBLEM

68131-06JA0-YES

$18.60

7

CUSHION

47167-06J00

$7.65

8

CUSHION

47191-06J00

$4.85

9

CUSHION (8X26X7) | REAR

09320-08018

$3.04

10

COVER

47231-40H00

$320.57

11

CUSHION (6X18X6) | LH

09320-06504

$4.96

12

CUSHION | LH

51827-01A00

$6.17

13

CUSHION (9X18X9.5) | LH

09320-09016

$1.97

14

SCREW (6X20) | LH

09139-06190

$4.17

15

BRACKET

47250-06J00

$29.15

16

BOLT

01547-0650A

$2.46

17

BODY

92211-06J00

Unavailable

18

LID

92212-06J00

Unavailable

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

20

BOLT (6X12)

09111-06107

$2.60

21

TOOL ASSY This part replaces 09800-21056.

09800-21100

$40.80

22

SPANNER,HEXAGON (6)

09816-00050

$5.03

23

CABLE,HELMET LO This part replaces 95740-06G00.

95740-06G01

$24.53
