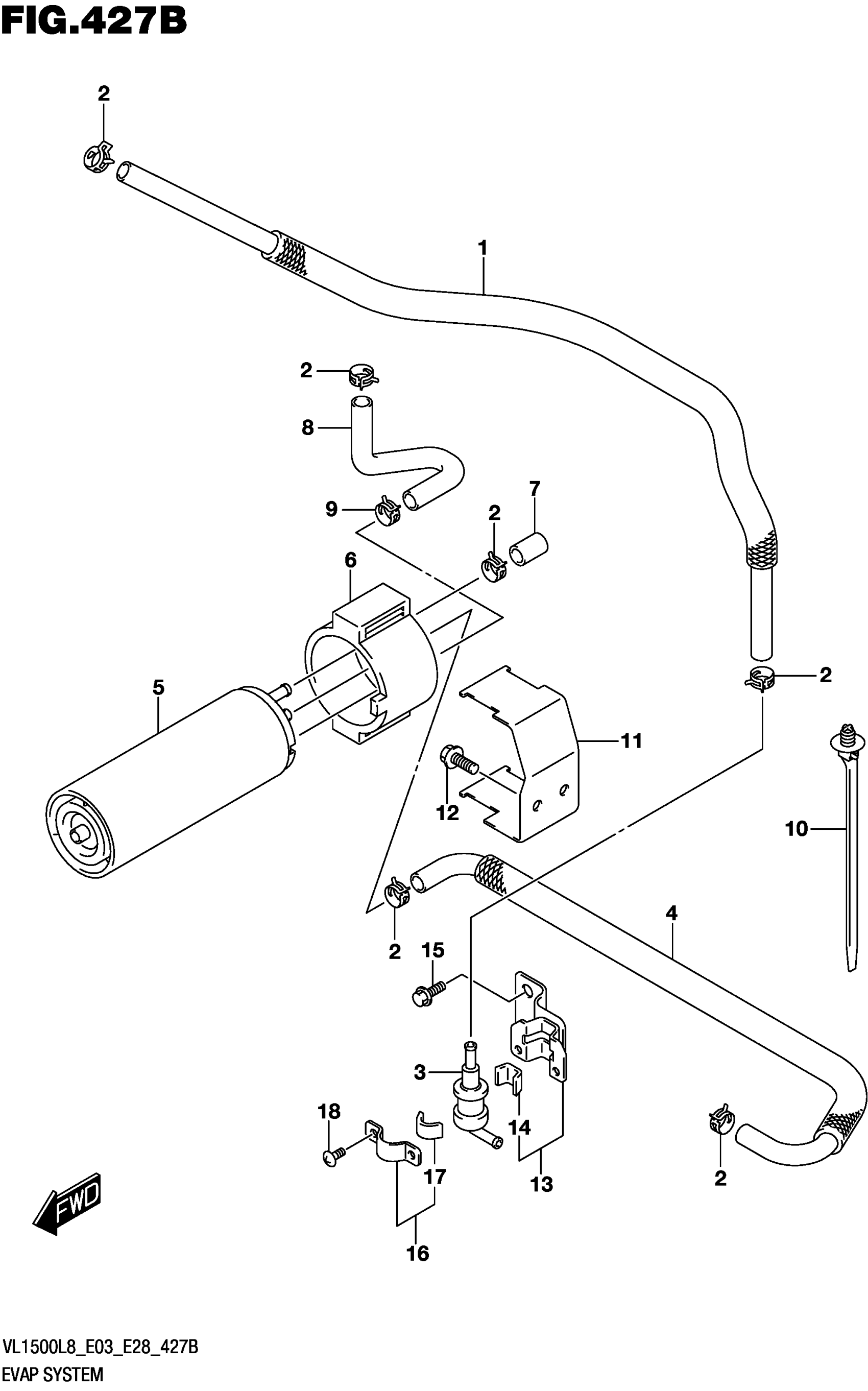

Suzuki VL1500BL8 (2018) EVAP SYSTEM (VL1500TL8 E33) Diagram

#

Description
Price

1

HOSE

44434-40H00

Unavailable

2

CLIP (ID:11,H:8)

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

HOSE

13681-06J00

Unavailable

5

CANISTER ASSY

17210-15H00

$305.77

6

CUSHION

17211-06J00

Unavailable

7

CAP (OD:11.5)

09251-07003

$2.53

8

HOSE

13682-06J00

Unavailable

9

CLIP (ID:12)

09401-12404

$2.34

10

CLAMP (L:170)

09407-17403

$4.91

11

BRACKET

17221-06J00

Unavailable

12

BOLT

01550-0612A

$1.97

13

BRACKET

44880-40H00

Unavailable

14

CUSHION (10X30X2)

44894-24A00

$1.72

15

BOLT

01547-0610A

$2.45

16

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

17

CUSHION (10X30X2)

44894-24A00

$1.72

18

SCREW

02142-0408A

$1.55
