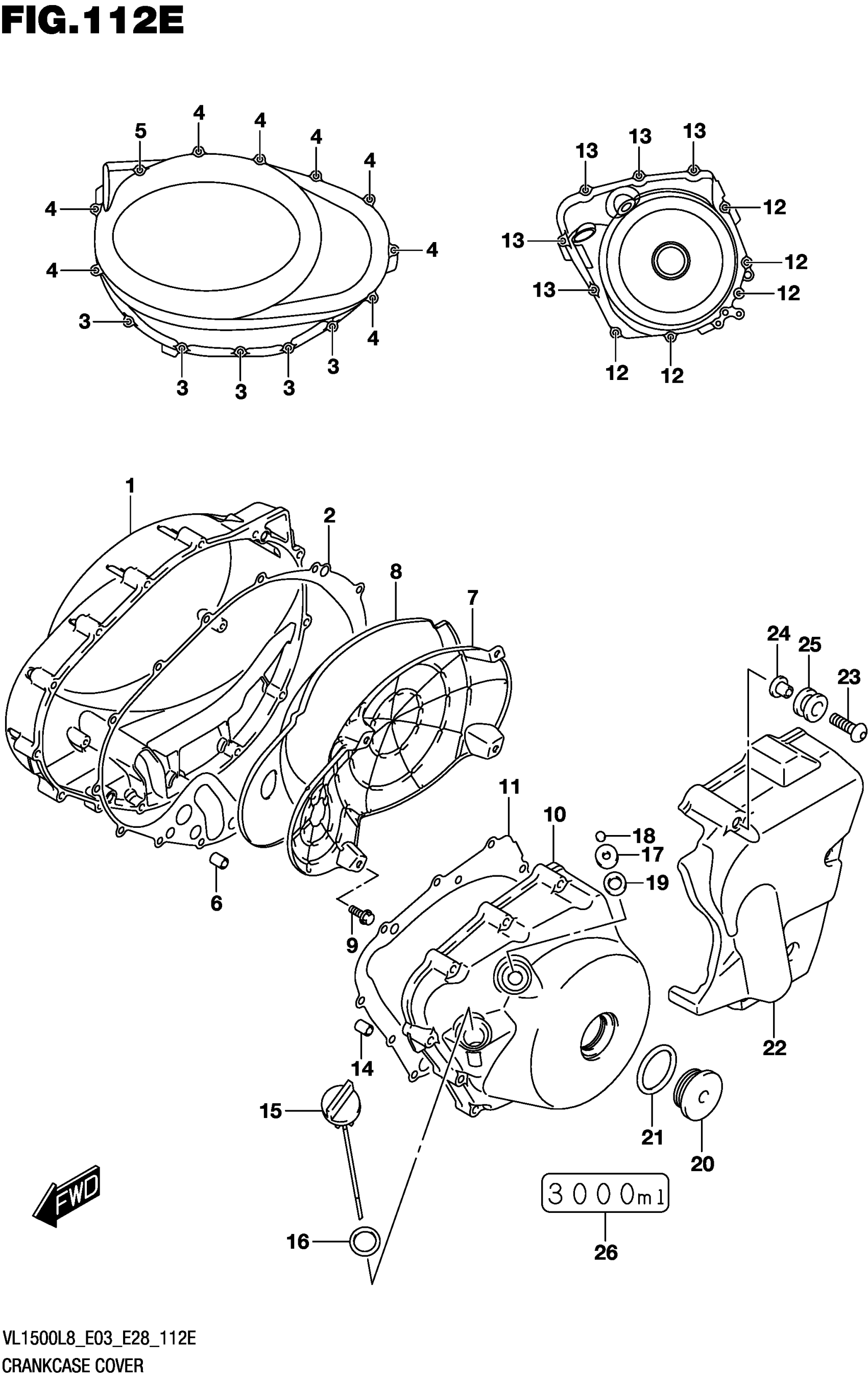

Suzuki VL1500BL8 (2018) CRANKCASE COVER (VL1500TL8 E03) Diagram

#

Description
Price

1

COVER

11341-40H01

Unavailable

2

.GASKET

11482-40H00

$23.82

3

BOLT (6X30)

09103-06213

$2.47

4

BOLT (6X40)

09103-06215

$2.78

5

BOLT (6X50)

09103-06238

$2.66

6

PIN

04211-09189

$1.65

7

PLATE

11342-40H00

Unavailable

8

DAMPER

11343-40H00

Unavailable

9

BOLT

01547-0612A

$2.03

10

COVER

11351-40H01

Unavailable

11

.GASKET

11483-40H00

$19.32

12

BOLT (6X30)

09103-06213

$2.47

13

BOLT (6X40)

09103-06215

$2.78

14

PIN (8.5X18X2.3)

04211-09149

$1.65

15

GAUGE,OIL LEVEL

11971-09403

$11.95

16

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

17

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

18

CAP (OD:12)

09250-08012

$2.15

19

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

20

PLUG (36X10)

09259-36008

$8.46

21

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

22

COVER

11361-40H00

Unavailable

23

SCREW (6X20)

09139-06028

$3.70

24

WASHER (6.3X17X1.6)

09169-06062

$2.50

25

CUSHION (9X18X10)

09320-09501

$2.03

26

NOTE

68322-40H00

Unavailable
