2017 Suzuki VL1500BL7 Starting Motor Diagram

← All diagrams

Find the part on the Starting Motor diagram for your 2017 Suzuki VL1500BL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

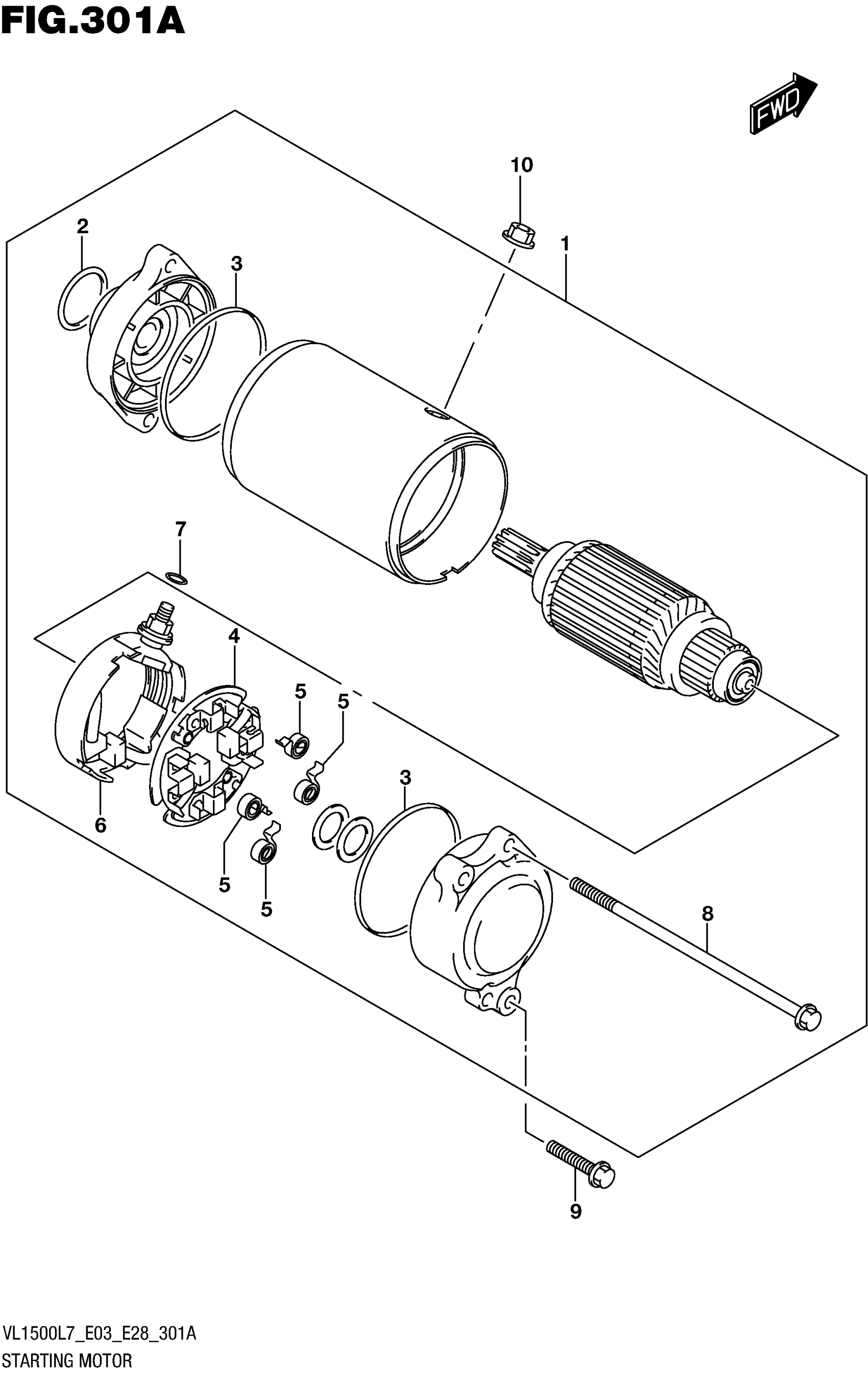

2017 Suzuki VL1500BL7 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY, STARTING

31100-40H01

1
Out of stock

2

.O RING (D:3.1,ID:24.4)

31156-98E00

1
Out of stock

3

2

$6.85

In stock

4

.HOLDER SET, BRUSH

31132-38B00

1
Out of stock

5

.SPRING, BRUSH

31135-38B00

4
Out of stock

6

.TERMINAL SET, BRUSH

31130-38B00

1
Out of stock

7

.O RING

31143-49040

1
Out of stock

8

BOLT This part replaces 31281-24B10.

31281-31D00

2
Out of stock

9

BOLT

01547-0625A

2
Out of stock

10

NUT

08361-3506A

1
Out of stock
