2017 Suzuki VL1500BL7 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2017 Suzuki VL1500BL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

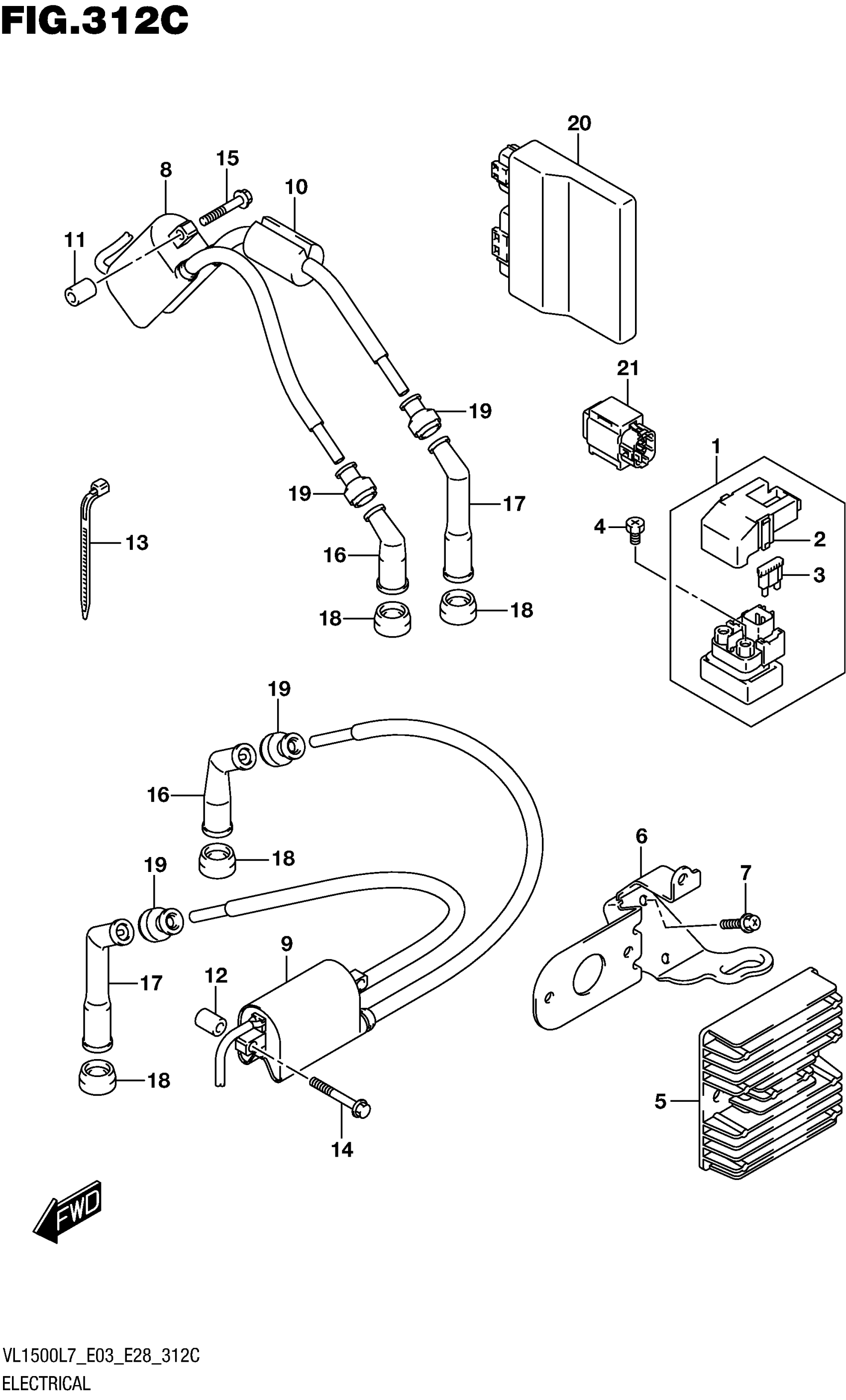

2017 Suzuki VL1500BL7 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

1
Out of stock

2

.COVER

31861-47E00

1
Out of stock

3

.FUSE (30A)

09481-30101

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-10G30

1
Out of stock

6

BRACKET

32830-40H10

1
Out of stock

7

SCREW This part replaces 02162-0616A.

02162-0616B

2
Out of stock

8

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

1
Out of stock

9

COIL ASSY, IGNITION FRONT

33420-40H11

1
Out of stock

10

CUSHION, HIGH TENSION CORD

33442-41F00

1
Out of stock

11

SPACER (6.4X10X22) | REAR

09180-06178

2
Out of stock

12

SPACER (6.2X12X16) | FRONT

09180-06198

2
Out of stock

13

CLAMP (L:165)

09407-18402

1
Out of stock

14

BOLT | FRONT

01547-0635A

2
Out of stock

15

BOLT | REAR

01547-0640A

2
Out of stock

16

CAP ASSY, SPARK PLUG (SIDE)

33510-38B00

2
Out of stock

17

CAP ASSY, SPARK PLUG (CENTER)

33510-45010

2
Out of stock

18

SEAL, SPARK PLUG

33541-47D00

4
Out of stock

19

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

4
Out of stock

20

CONTROL UNIT, FI

32920-06J70

1
Out of stock

21

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock
