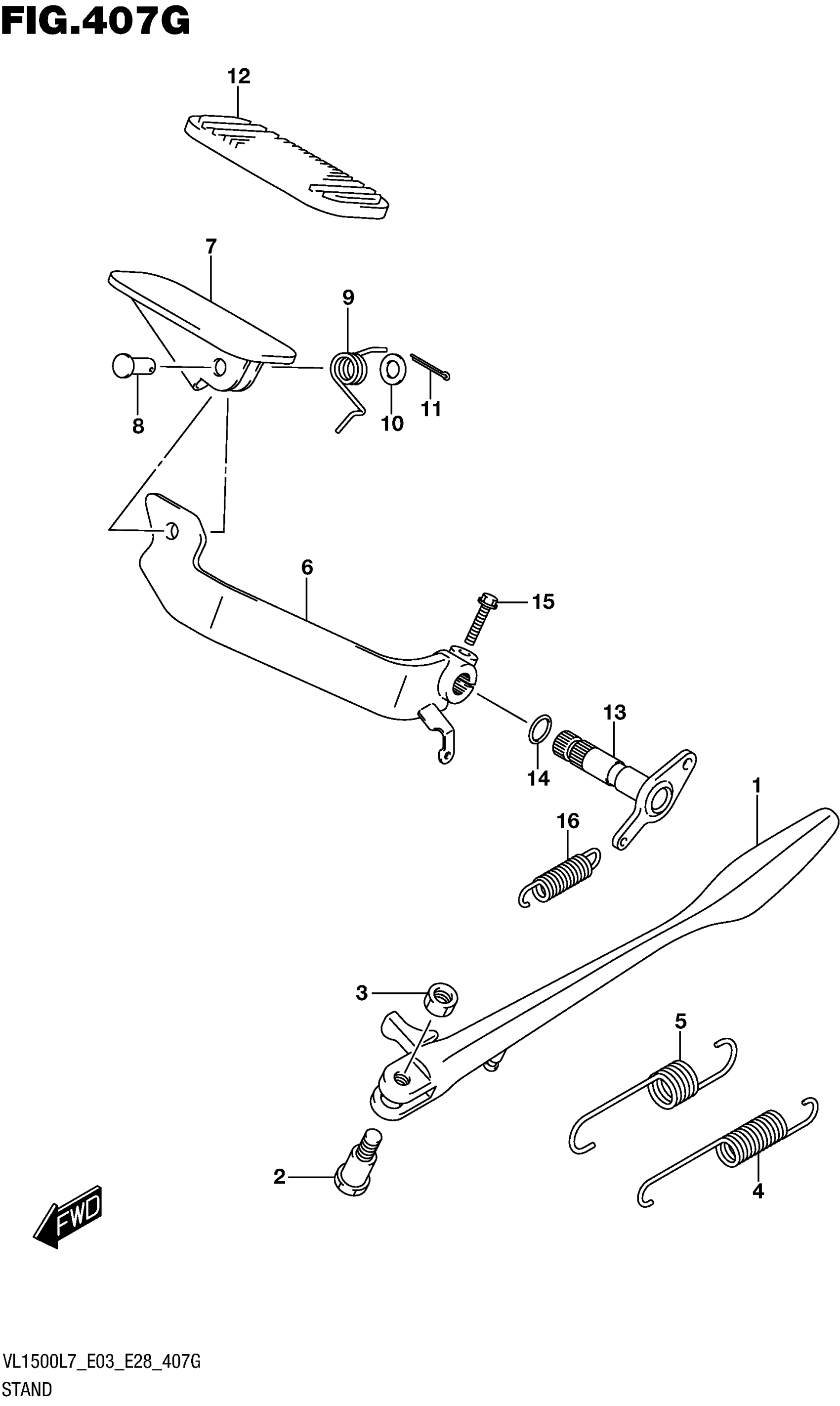

Suzuki VL1500BL7 (2017) STAND (VL1500TL7 E33) Diagram

#

Description
Price

1

STAND, PROP

42310-06J00

$123.23

2

BOLT (10X37.5)

09111-10058

$6.66

3

NUT, PROP STAND

42321-03FK0

$5.17

4

SPRING | INNER

09443-14069

$6.06

5

SPRING | OUTER

09443-19012

$5.89

6

ARM, BRAKE PEDAL

43140-06J00

Unavailable

7

PEDAL, BRAKE

43110-22H10

$61.03

8

PIN

43117-22H00

Unavailable

9

SPRING

43116-22H00

Unavailable

10

WASHER

08322-0108A

$1.92

11

COTTER PIN

04111-2015A

$1.49

12

RUBBER,BRAKE PEDAL This part replaces 43151-10F00.

43151-10F01

$7.68

13

ARM, BRAKE ROD

43120-40H00

$80.52

14

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

15

BOLT

07120-0625A

$2.50

16

SPRING

09443-11030

$3.70
