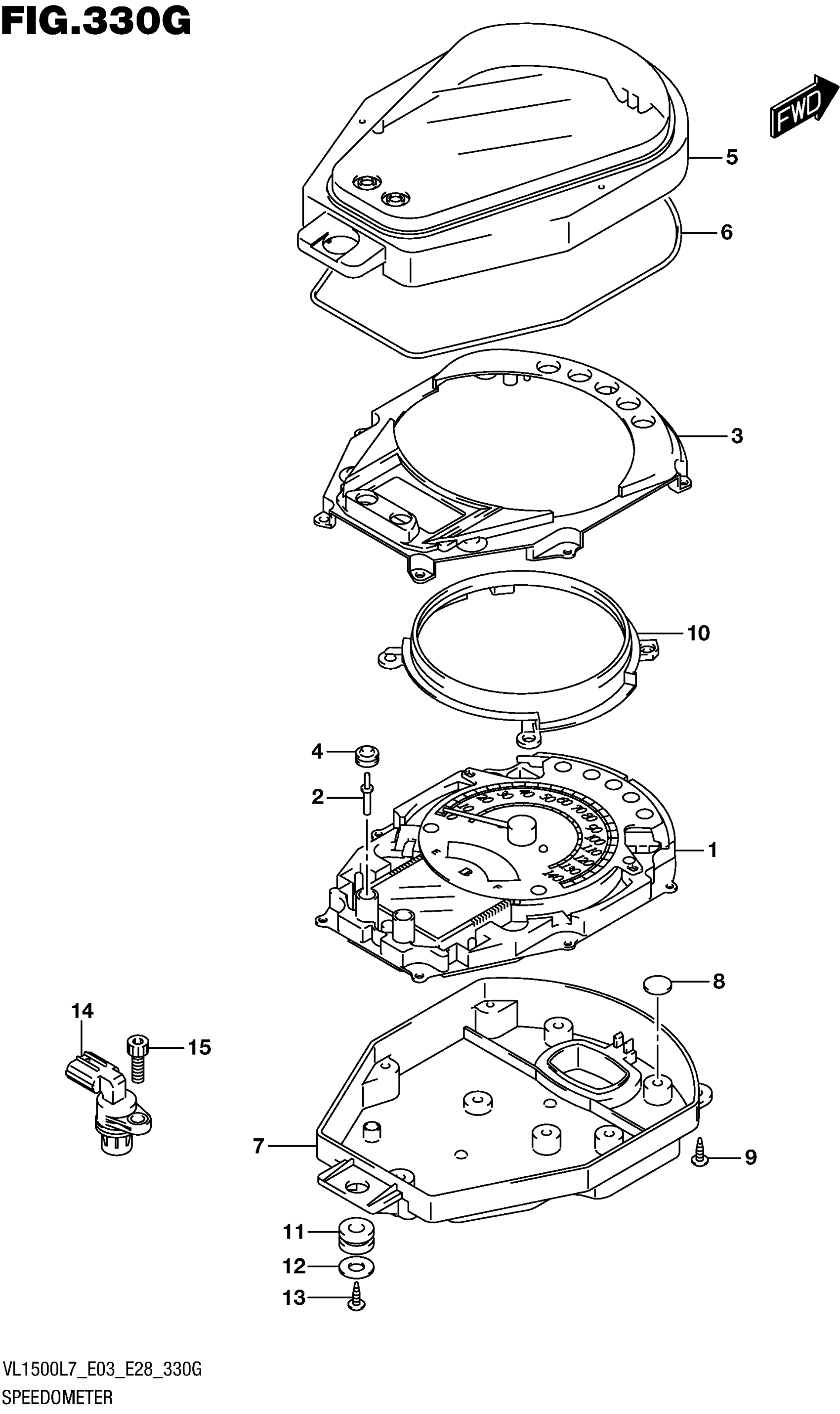

Suzuki VL1500BL7 (2017) SPEEDOMETER (VL1500TL7 E33) Diagram

#

Description
Price

1

SPEEDOMETER

34120-06J60

Unavailable

2

KNOB, SPEEDOMETER

34124-16G00

$9.42

3

PLATE, SPEEDOMETER

34125-43H00

$41.23

4

COVER, SPEEDOMETER

34126-44G00

$10.48

5

CASE, UPPER

34151-43H00

$178.35

6

PACKING

34153-43H00

$28.18

7

COVER

34156-06J00

$42.22

8

SEAL

34167-13E00

Unavailable

9

SCREW (3X12)

34183-29F00

$3.84

10

RING

34193-06J00

Unavailable

11

.CUSHION

34996-43410

$4.35

12

WASHER (5.5X16X1.2)

09160-05037

$1.49

13

SCREW

03541-0516A

$1.49

14

SENSOR, SPEED

34990-31G01

$112.55

15

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39
