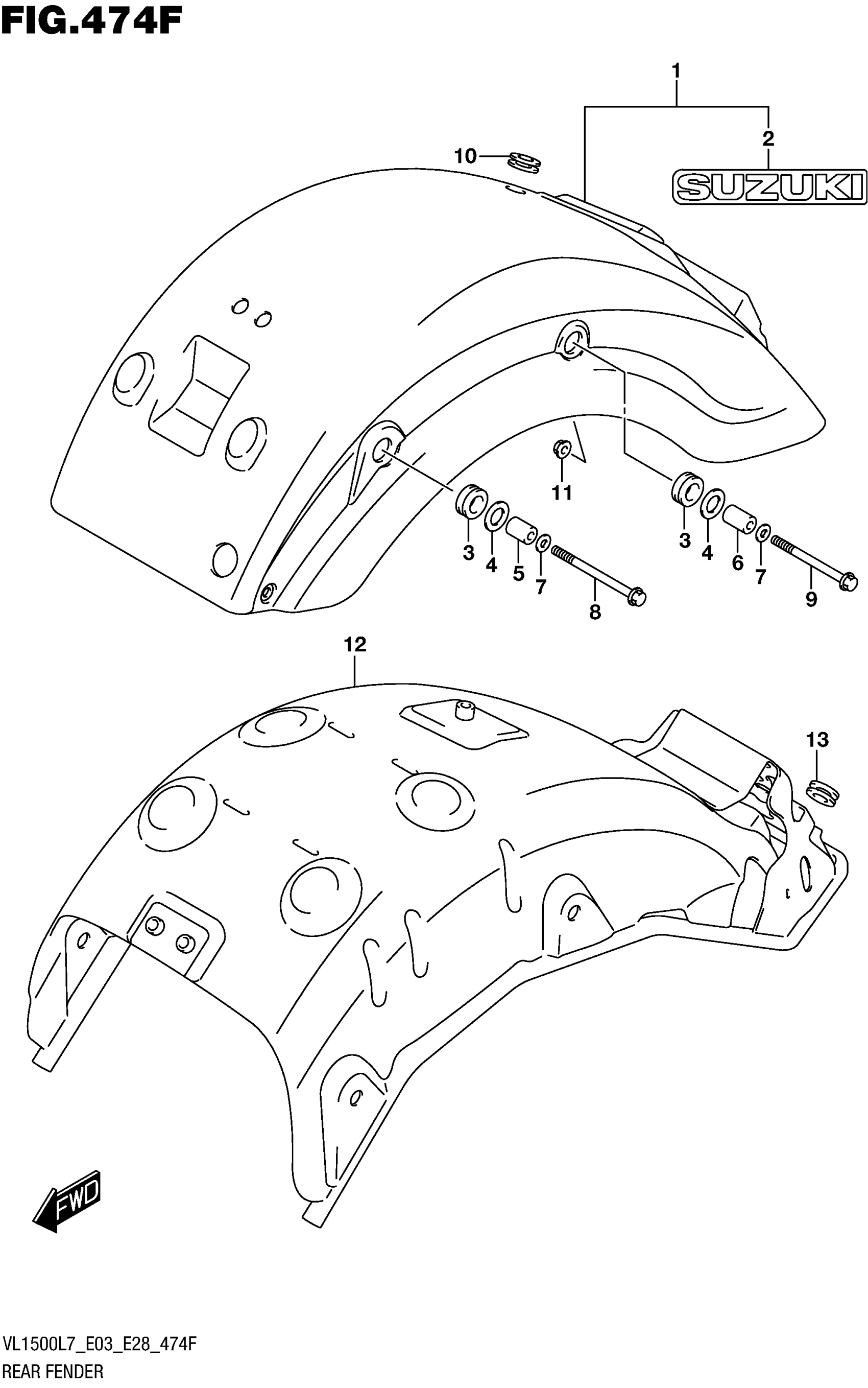

Suzuki VL1500BL7 (2017) REAR FENDER (VL1500TL7 E28) Diagram

#

Description
Price

1

FENDER,REAR This part replaces 63110-06J00-YVB.

63110-06J01-YVB

$1,438.82

2

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

3

CUSHION

47191-24F00

$4.86

4

WASHER (15.5X26X2.3)

09160-15002

$1.70

5

SPACER, FRONT

95428-06J00

$8.68

6

SPACER, REAR

95429-06J00

$8.68

7

SPACER (8.2X12X6)

09180-08047

$2.57

8

BOLT | FRONT

01550-0895A

$5.00

9

BOLT | REAR

01550-0885A

$4.53

10

CUSHION

09320-15008

$3.56

11

NUT

08316-1008A

$2.47

12

REINFORCE, REAR FENDER

63130-06J01

$343.55

13

GROMMET

09308-10017

$5.65
