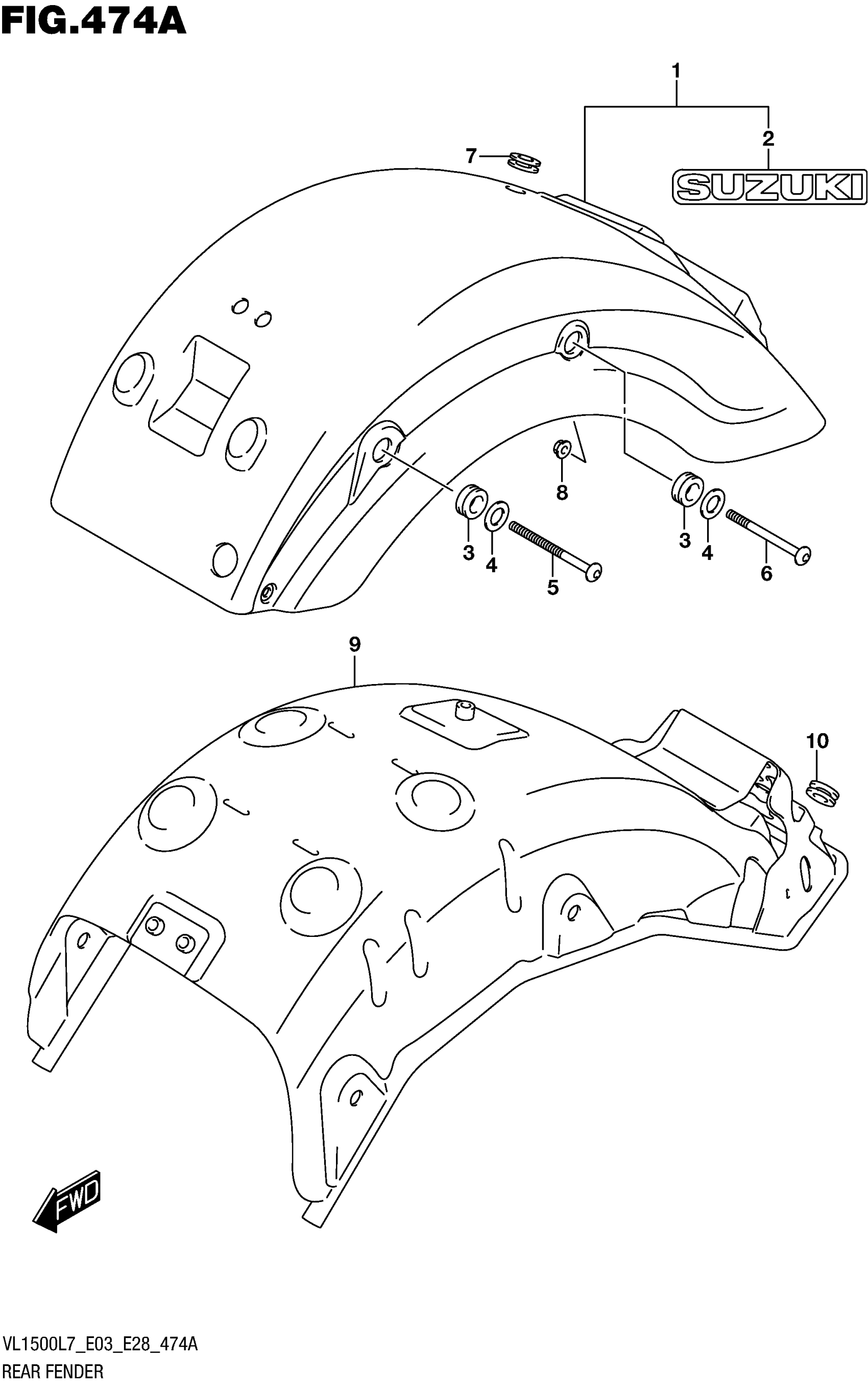

Suzuki VL1500BL7 (2017) REAR FENDER (VL1500BL7 E03) Diagram

#

Description
Price

1

FENDER COMP,REA This part replaces 63110-06J00-YUK.

63110-06J01-YUK

$1,425.42

2

EMBLEM,"SUZUKI" This part replaces 68271-34A00-20G.

68271-34A01-20G

$5.45

3

CUSHION

47191-24F00

$5.17

4

WASHER (15.5X26X2.3)

09160-15002

$1.91

5

BOLT | FRONT

63161-06J10

$6.27

6

BOLT | REAR

63161-41F00

$9.40

7

CUSHION

09320-15008

$3.89

8

NUT

08316-1008A

$2.45

9

REINFORCE, REAR FENDER

63130-06J01

$311.72

10

GROMMET

09308-10017

$5.20
