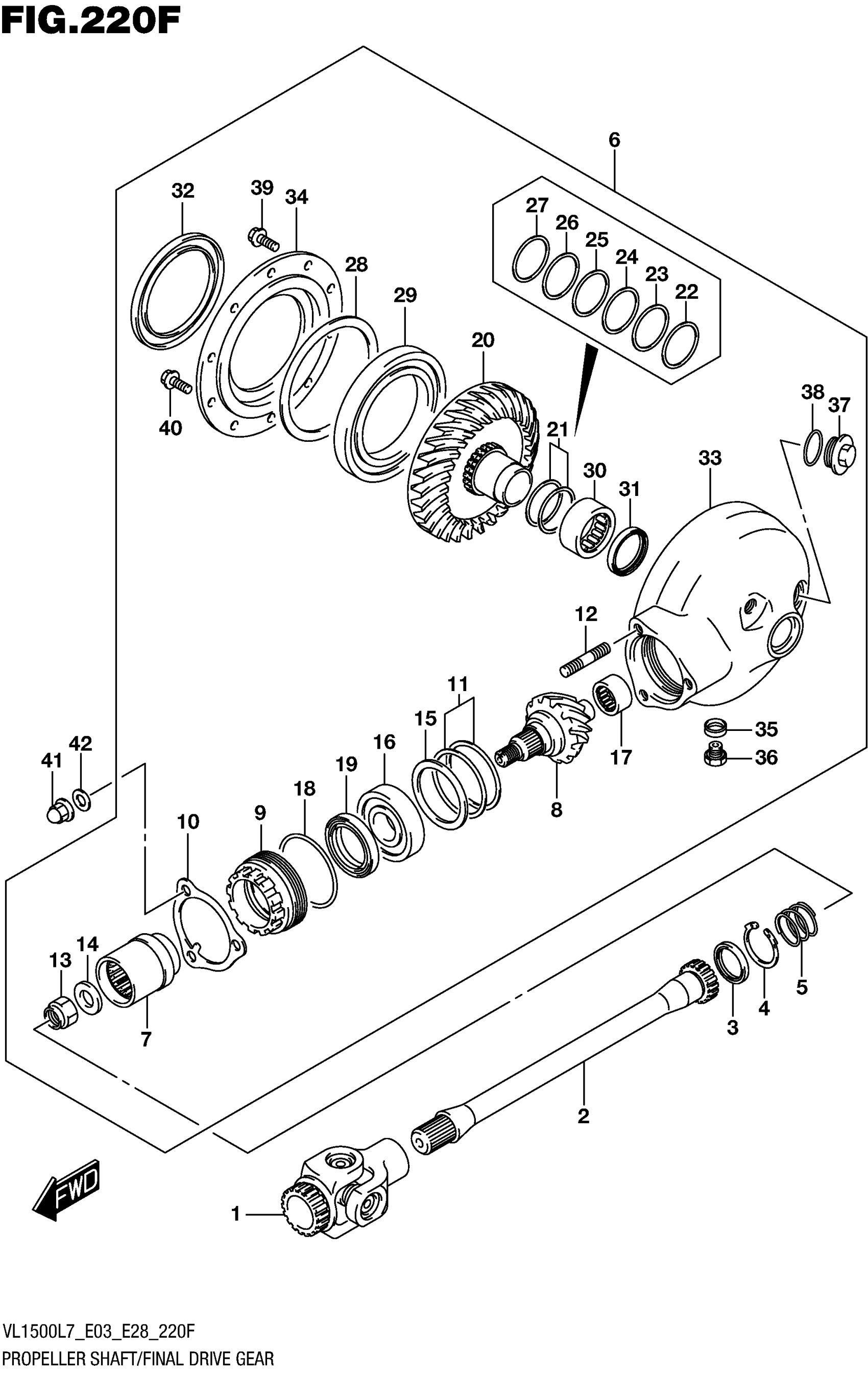

Suzuki VL1500BL7 (2017) PROPELLER SHAFT/FINAL DRIVE GEAR (VL1500TL7 E28) Diagram

#

Description
Price

1

YOKE, UNIVERSAL JOINT

27100-48G20

$351.00

2

SHAFT, PROPELLER

27151-40H00

Unavailable

3

OIL SEAL (30X40.5X5.5)

09283-30026

$10.40

4

CIRCLIP

09381-40003

$4.64

5

SPRING

09440-30008

$3.72

6

GEAR & CASE SET, FINAL BEVEL

27300-48860-291

Unavailable

6

(BLACK)

27300-48860-291

Unavailable

7

.COUPLING, FINAL DRIVE GEAR

27172-24A00

$59.80

8

.GEAR, FINAL DRIVE BEVEL

27311-24A10

Unavailable

8

(NT:12)

27311-24A10

Unavailable

9

.STOPPER, FINAL DRIVE BEARING

27312-24A02

$74.08

10-1

.PLATE, BEARING STOPPER

27313-38B00

$7.37

10-2

.PLATE, BEARING STOPPER

27313-38B10

$7.37

11

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.5

27445-24810

$28.18

12

.STUD BOLT

09108-10106

$4.68

13

.NUT

09159-16003

$4.00

14

.WASHER (16X29X4)

09160-16029

$6.35

15

.WASHER (54X68X1.5)

09160-54001

Unavailable

16

.BEARING (28X68X18)

09262-28023

$127.87

17

BEARING (20X34X18)

09263-20062

$46.98

18

.O RING (D:3.1,ID:63.9)

09280-64003

$5.64

19

.OIL SEAL (45.5X58X7)

09283-47002

$17.18

20

.GEAR, FINAL DRIVEN BEVEL

27320-48G00

Unavailable

20

(NT:32)

27320-48G00

Unavailable

21

.SHIM SET, FINAL DRIVEN LH

27326-48811

$103.03

22

..SHIM (40X46.8X0.95)

09181-40011

$3.27

23

..SHIM (40X46.8X1.05)

09181-40013

$3.97

24

..SHIM (40X46.8X1.1)

09181-40014

Unavailable

25

..SHIM (40X50X1.2)

09181-40176

Unavailable

26

..SHIM (40X50X1.4)

09181-40182

Unavailable

27

..SHIM (40X50X1.5)

09181-40212

Unavailable

28

.SHIM SET, FINAL DRIVE RH | T:0.35/0.40/0.50/0.6

27327-38810

$108.97

29

.BEARING (85X130X14) | RH

09262-85001

$202.27

30

.BEARING (40X50X20) | LH

09263-40016

$68.97

31

.OIL SEAL (38X46X6) | LH

09283-38026

$16.33

32

.OIL SEAL (85X110X11) | RH

09289-85001

$41.81

33

.CASE, FINAL GEAR (SILVER)

27450-48G70-20H

$930.82

34

.CASE, FINAL GEAR BEARING

27461-38B00

$239.92

35

.GASKET (13.8X18.8X4.8)

09168-14002

$2.26

36

PLUG (MAGNETO) | OIL DRAIN

09247-14002

$5.24

37

.PLUG (30X9)

09259-30007

$18.39

38

.O RING (D:3.1,ID:26.4)

09280-26006

$2.76

39

.BOLT

01550-0825A

$2.32

40

BOLT (10X20)

01550-1025A

$3.05

41

NUT

09159-10026

$6.20

42

WASHER

09164-10008

$1.71
