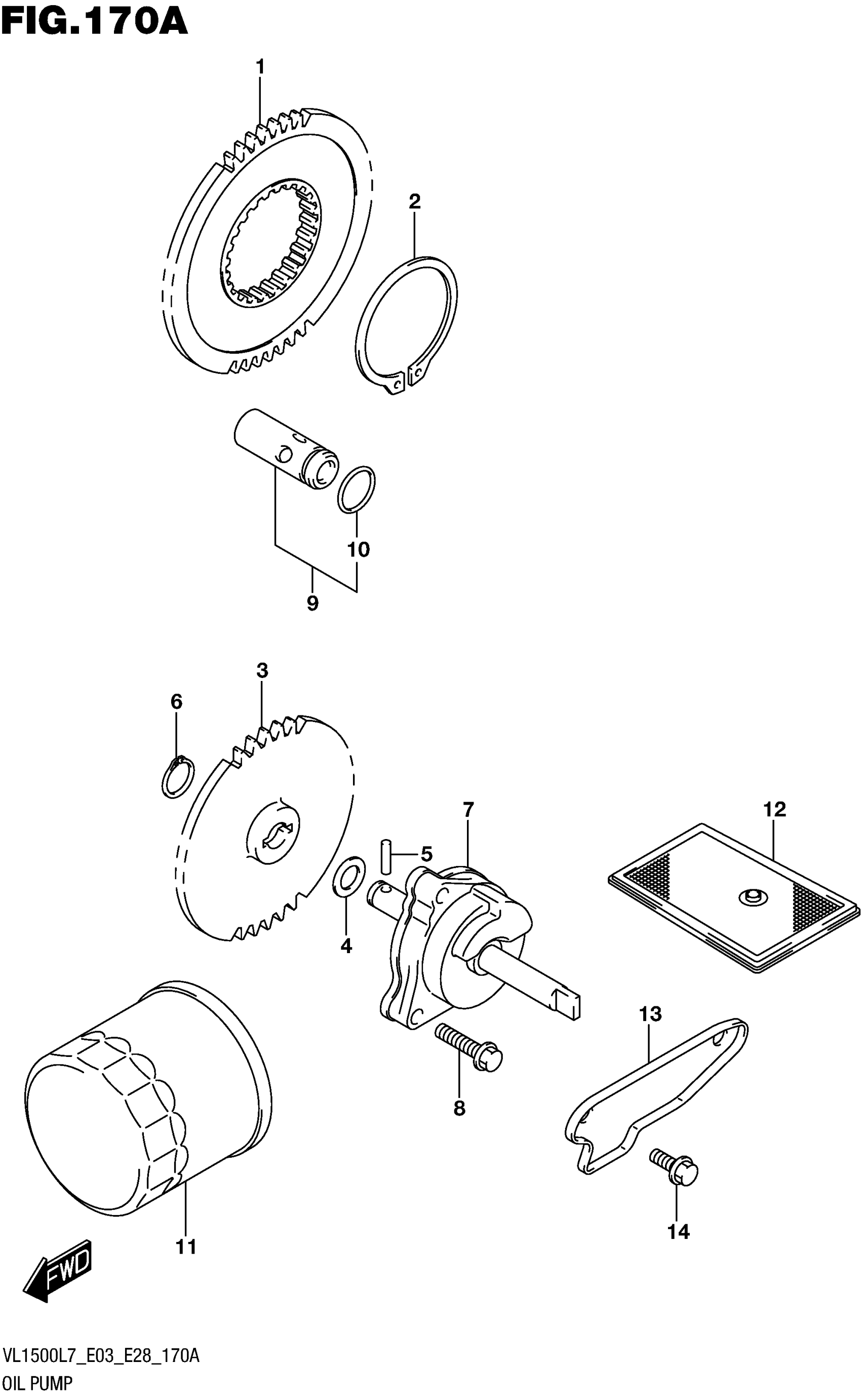

Suzuki VL1500BL7 (2017) OIL PUMP Diagram

#

Description
Price

1

GEAR, OIL PUMP DRIVE (NT:55)

16321-40H00

Unavailable

2

CIRCLIP

08331-31529

Unavailable

3

GEAR, OIL PUMP DRIVEN (NT:40)

16331-40H00

Unavailable

4

SHIM (10X18X0.5)

09181-10158

$1.97

5

PIN (4X15.8)

09261-04009

$1.56

6

CIRCLIP

08331-31109

$1.78

7

PUMP ASSY, ENGINE OIL

16400-40H00

$235.62

8

BOLT

01547-0625A

$2.01

9

VALVE ASSY, OIL RELIEF

16440-24F00

$50.04

10

.O RING (D:1.9,ID:13)

09280-13004

$2.17

11

FILTER ASSY, ENGINE OIL

16510-07J00

$13.10

12

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$13.10

13

CAP,OIL STRAINER

16523-17G00

Unavailable

14

BOLT

01547-0612A

$2.03
