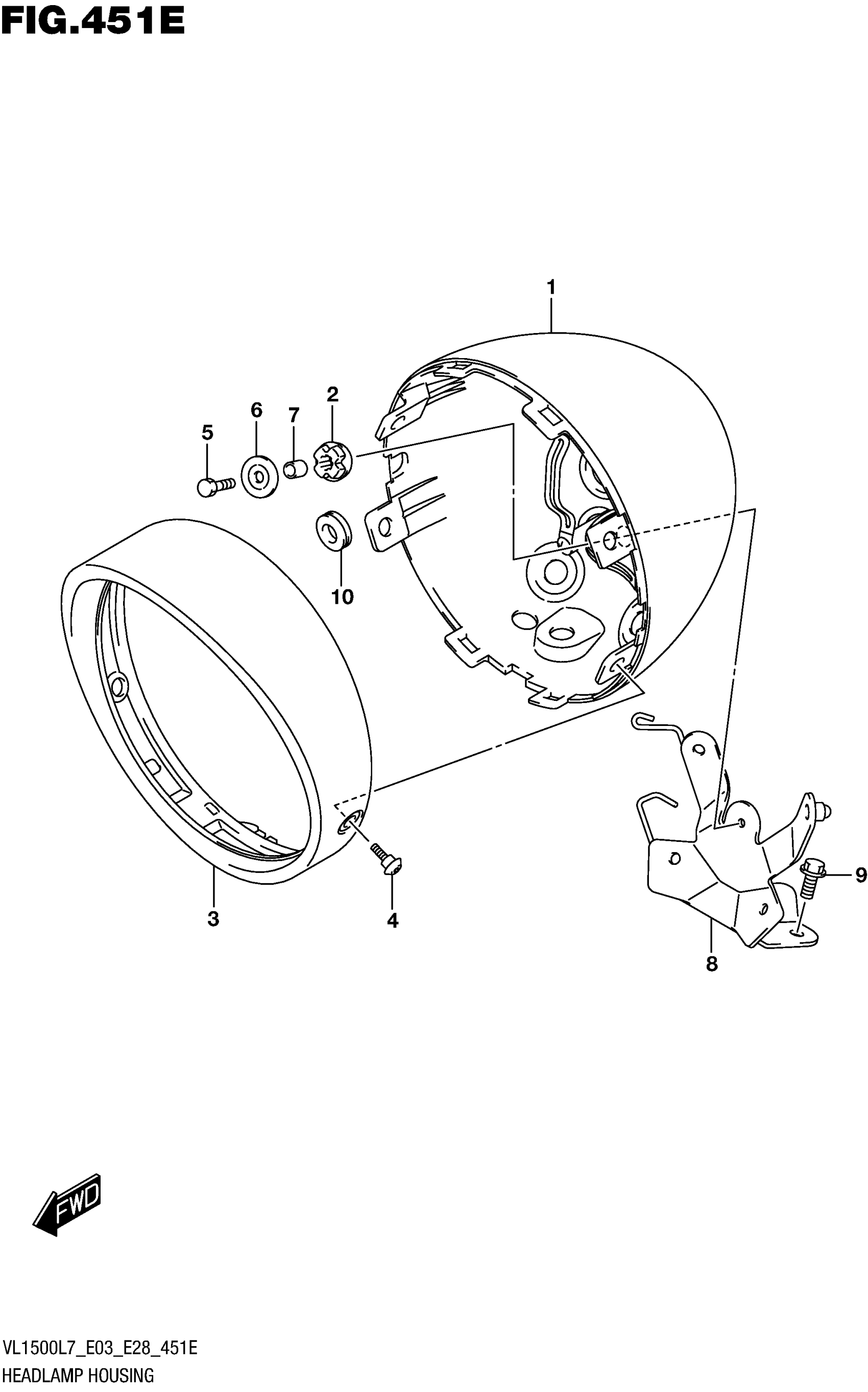

Suzuki VL1500BL7 (2017) HEADLAMP HOUSING (VL1500TL7 E03) Diagram

#

Description
Price

1

HOUSING, HEADLAMP

51811-06J00

$190.37

2

CUSHION

09320-09010

$2.80

3

COVER, HEADLAMP HOUSING

51821-06J00

$88.87

4

SCREW (5X16)

09139-05077

$2.97

5

BOLT

01500-0625B

$2.45

6

WASHER (6.5X20X1.2)

09160-06152

$2.57

7

SPACER (6.5X9X10)

09180-06307

$2.80

8

BRACKET, HOUSING

51850-06J00

$76.00

9

BOLT

01550-0820B

$2.80

10

CUSHION

09320-08028

$2.80
