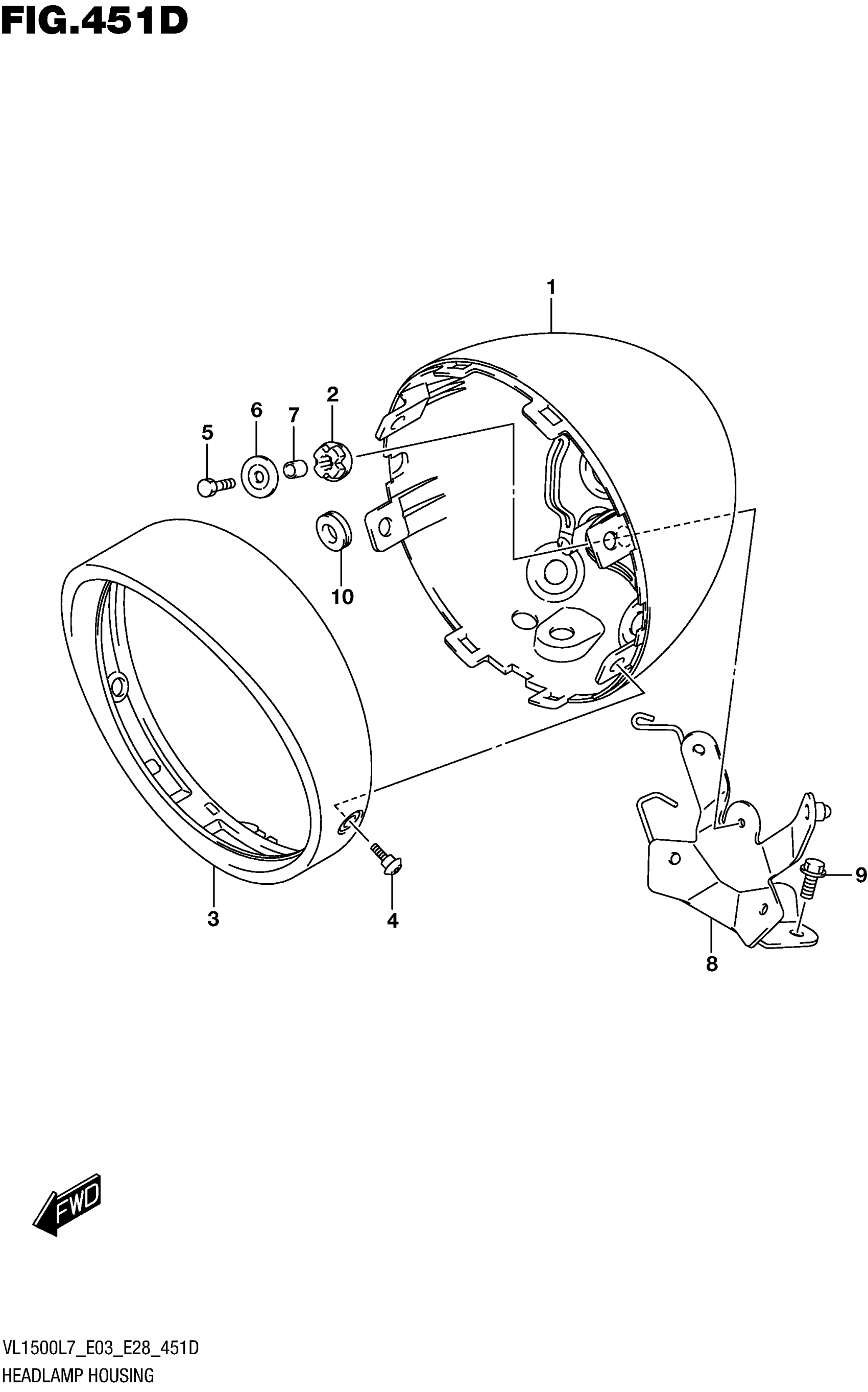

Suzuki VL1500BL7 (2017) HEADLAMP HOUSING (VL1500BTL7 E28) Diagram

#

Description
Price

1

HOUSING, HEADLAMP

51811-06J00

$169.48

2

CUSHION

09320-09010

$2.84

3

COVER, HEADLAMP HOUSING

51821-06J00

$94.38

4

SCREW (5X16)

09139-05077

$3.25

5

BOLT

01500-0625B

$2.38

6

WASHER (6.5X20X1.2)

09160-06152

$2.28

7

SPACER (6.5X9X10)

09180-06307

$3.05

8

BRACKET, HOUSING

51850-06J00

$67.33

9

BOLT

01550-0820B

$2.83

10

CUSHION

09320-08028

$3.04
