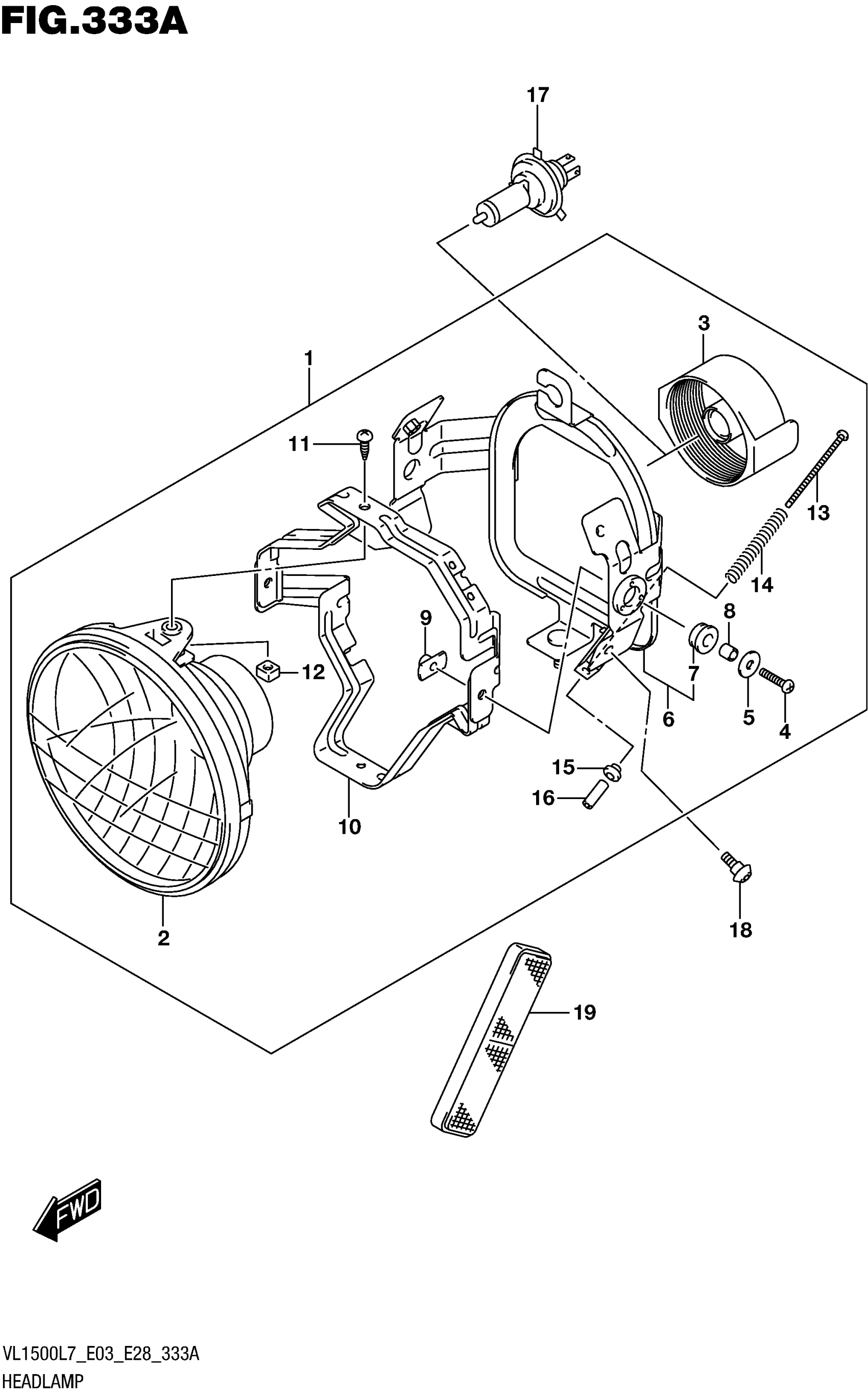

Suzuki VL1500BL7 (2017) HEADLAMP Diagram

#

Description
Price

1

.HEADLAMP ASSY

35100-06J31-999

$324.75

2

.UNIT

35121-10FB0

$201.52

3

.COVER,SOCKET

35174-19F00

$30.22

4

.SCREW

02122-0520A

$2.27

5

.WASHER (5.5X18X1)

09160-05045

$1.93

6

..BRACKET

35140-06J02

$130.38

7

..CUSHION

35139-38A60

$4.10

8

.SPACER

35133-45230

$3.30

9

.NUT

35155-10FA0

$5.98

10

.BRACKET

35130-10FA0

$63.90

11

.SCREW (5X16)

35181-19F00

$3.25

12

.NUT

35135-45900

$3.25

13

.SCREW, ADJUSTER

35151-10FA0

$11.37

14

.SPRING, ADJUSTER

35154-10FA0

$5.98

15

.NUT

35152-45600

$3.47

16

.COVER

35158-10FA0

Unavailable

17

BULB (12V,60/55W)

09471-12060

$25.15

18

BOLT (6X12)

09111-06107

$2.60

19

REFLEX REFLECTOR ASSY, FR SID

35950-22H20

$73.97
